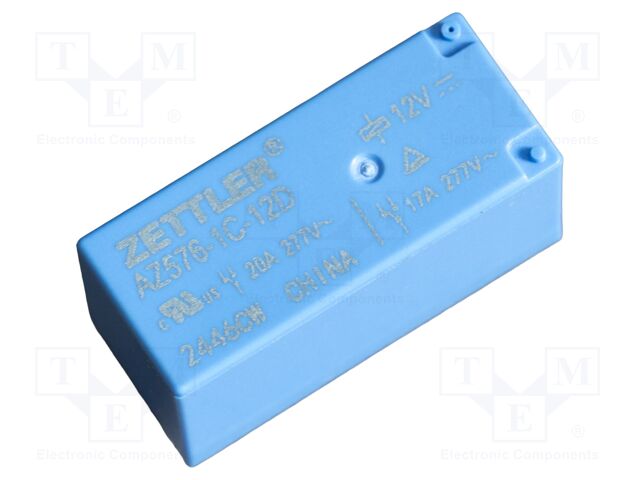

Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A

    Multiples: 1000.0
    Minimum quantity: 1000.0
    Product code: AZ576-1C-12D
    Manufacturer: ZETTLER
    Manufacturer code: AZ576-1C-12D
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A

    Mounting PCB
    Operating temperature -40...105°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm
    Switched voltage max. 277V AC, max. 30V DC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    Contact resistance 10mΩ
    Contact current max. 20A
    Relay variant miniature
    Coil voltage max. 18V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 400mW
    Operate time 15ms
    Release time 8ms
    Coil current 33.3mA
