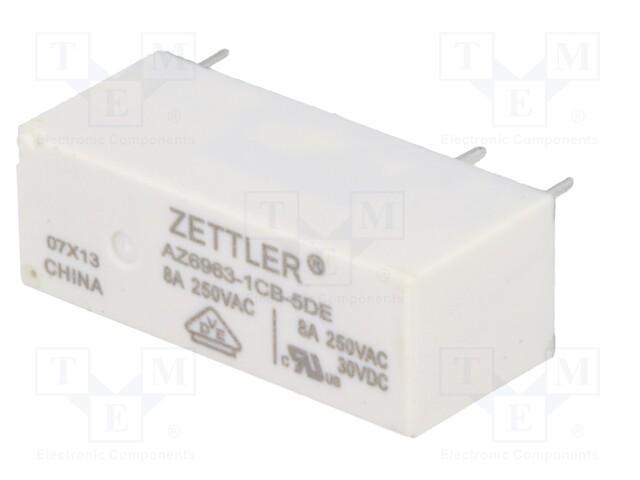

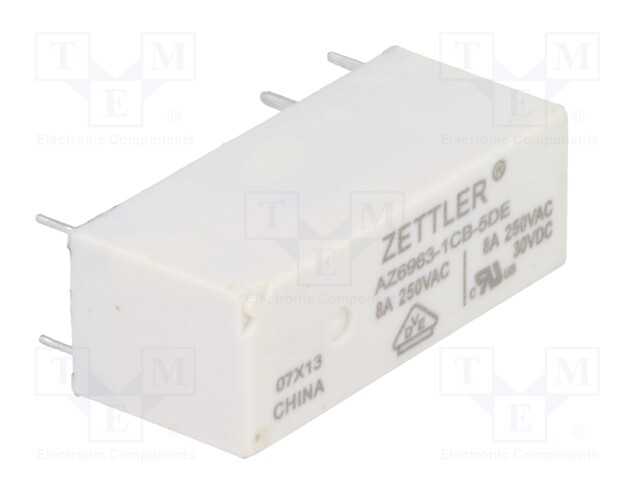

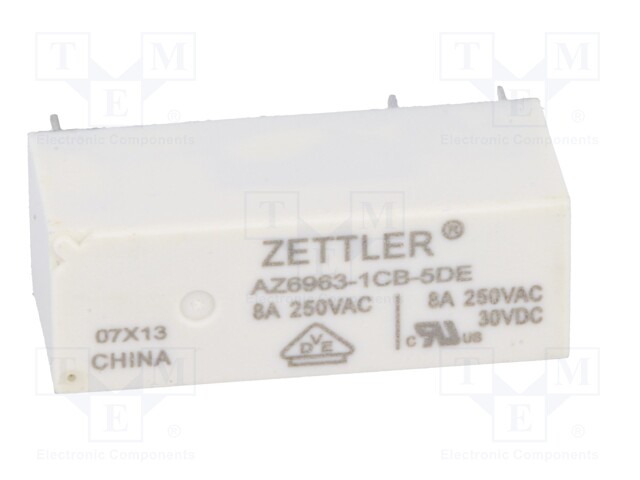

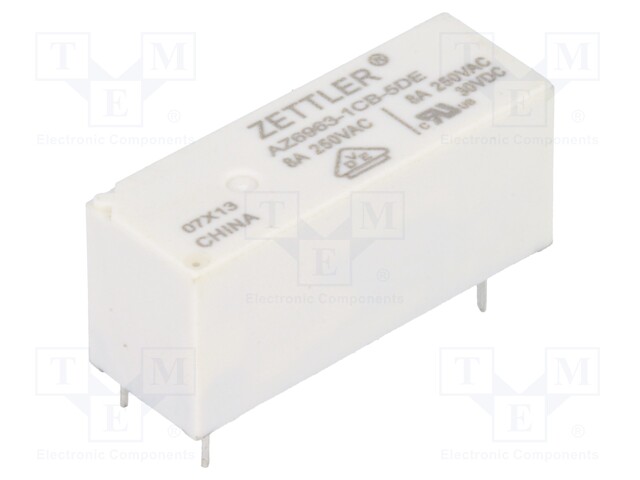

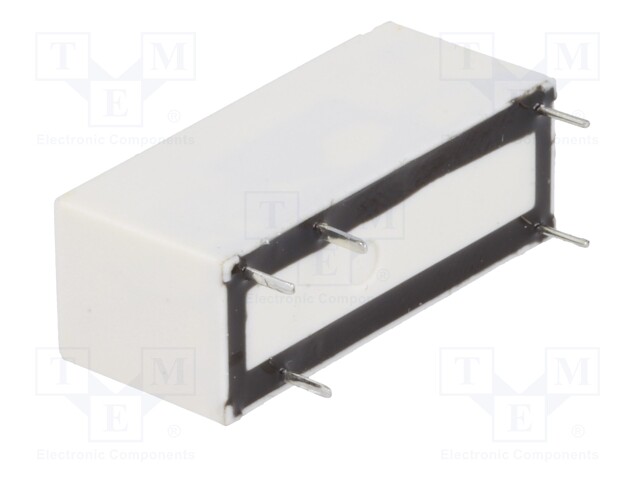

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A/250VAC; 8A/30VDC; 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZ6963-1CB-5DE
    Manufacturer: ZETTLER
    Manufacturer code: AZ6963-1CB-5DE
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2.06 € 2.06 € (wo VAT) 2.06 EUR

    2.06 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A/250VAC; 8A/30VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C

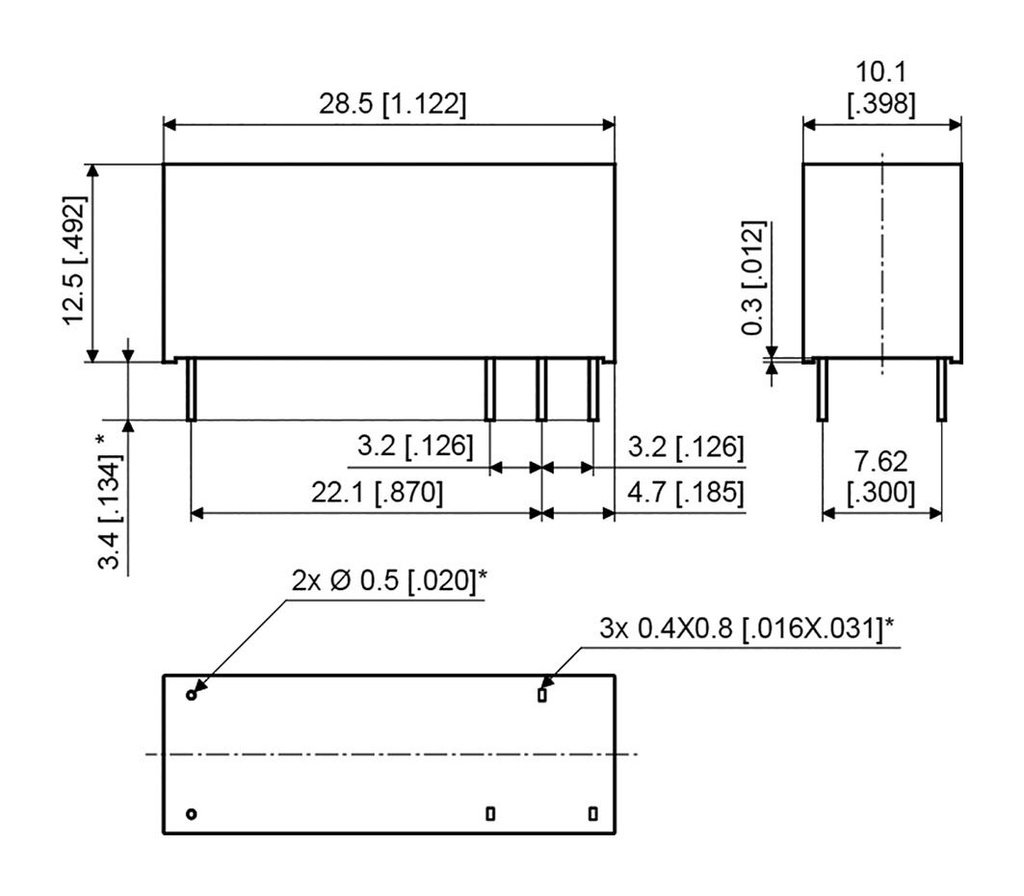

    Body dimensions 28.8x10.1x12.5mm
    Switched voltage max. 240V DC, max. 440V AC
    Coil resistance 113Ω
    Rated coil voltage 5V DC

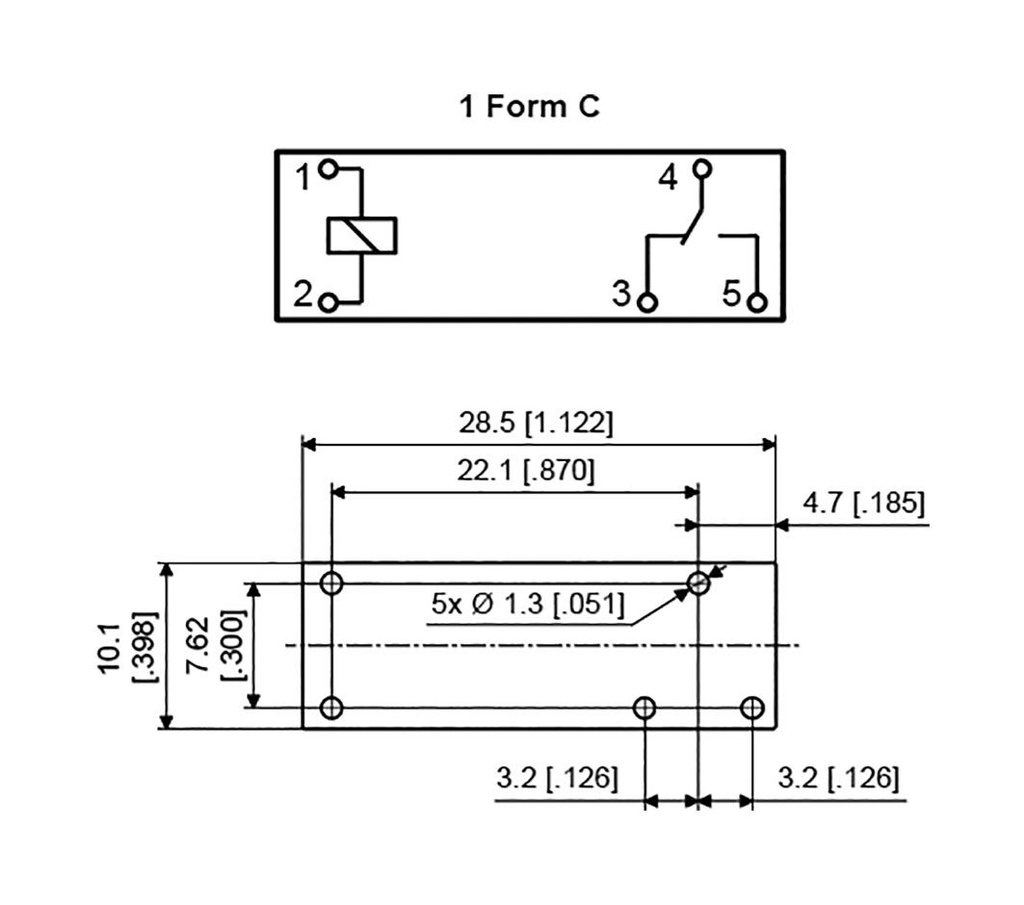

    Contacts configuration SPDT
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 11.6V DC
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 221mW
    Operate time 7ms
    Release time 3ms
