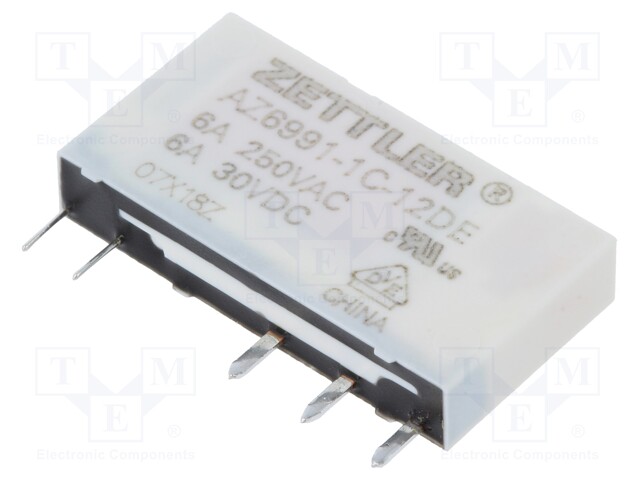

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/30VDC; 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZ6991-1C-12DE
    Manufacturer: ZETTLER
    Manufacturer code: AZ6991-1C-12DE
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    2.00 € 2.00 € (wo VAT) 2.0 EUR

    2.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/30VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi

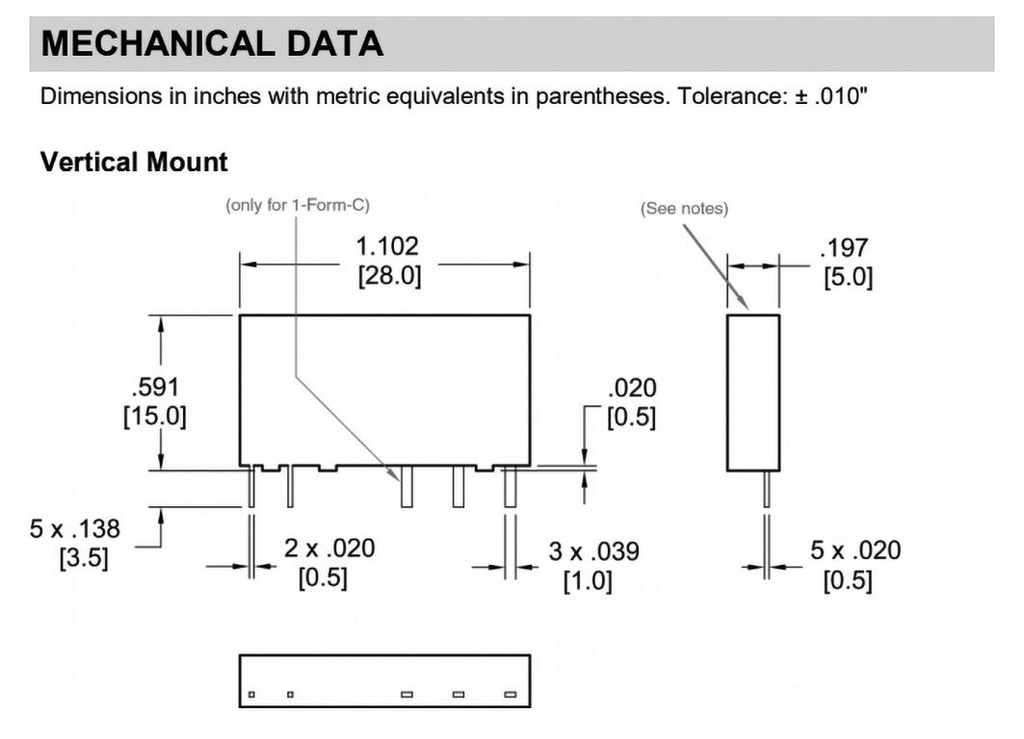

    Body dimensions 28x5x15mm
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 848Ω
    Rated coil voltage 12V DC

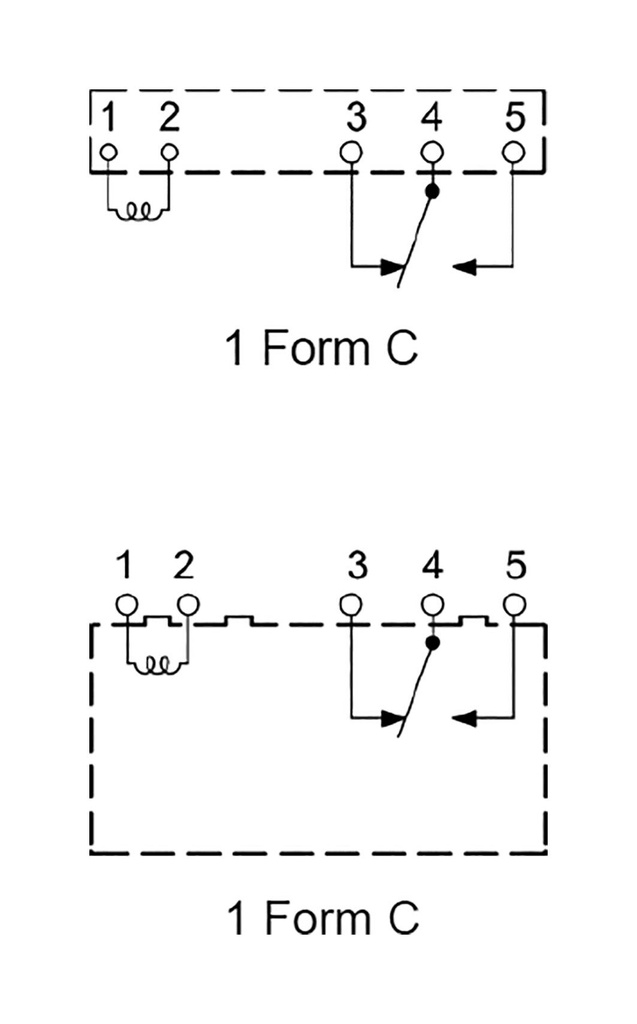

    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    Contact resistance 100MΩ
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 170mW
    Operate time 8ms
    Release time 4ms
