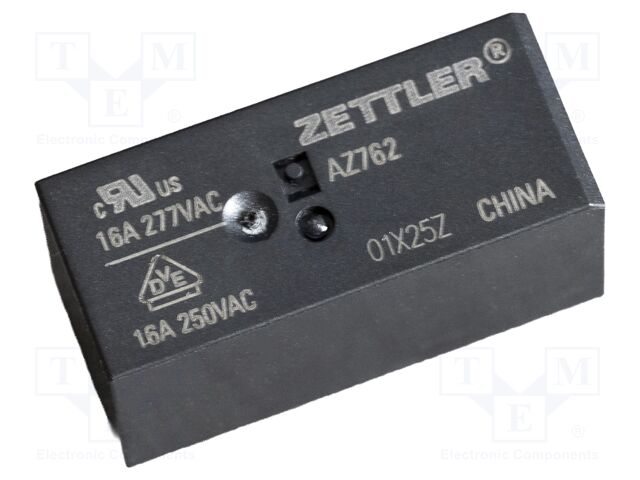

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A; 16A/250VAC

    Multiples: 1000.0
    Minimum quantity: 1000.0
    Product code: AZ762-1AE-12DIF
    Manufacturer: ZETTLER
    Manufacturer code: AZ762-1AE-12DIF
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A; 16A/250VAC

    Mounting PCB
    Operating temperature -40...85°C
    Terminal pitch 5.04mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage max. 30V DC, max. 440V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 10mΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 400mW
    Operate time 7ms
    Release time 4ms
