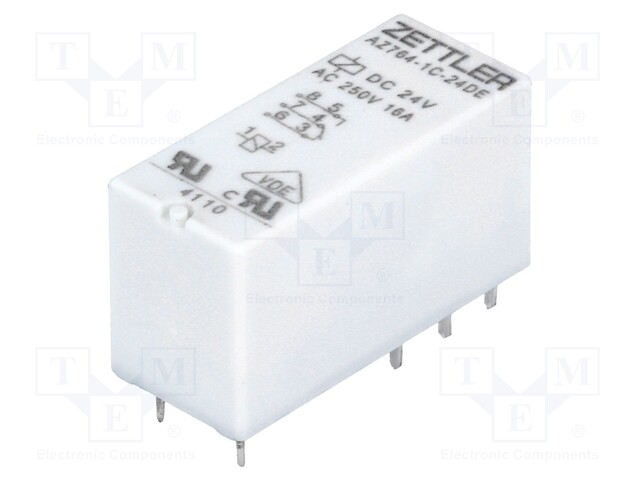

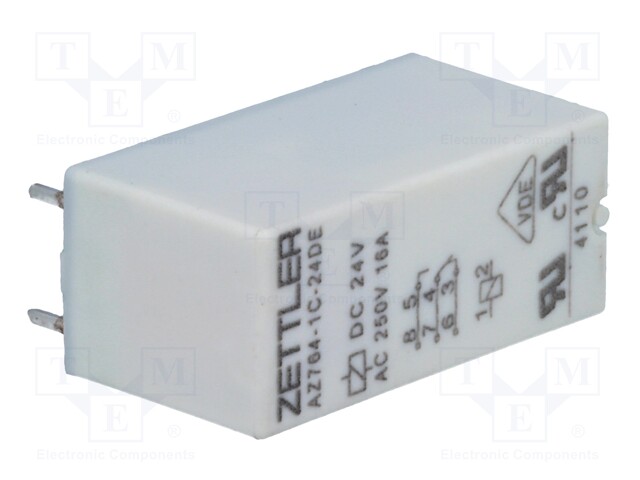

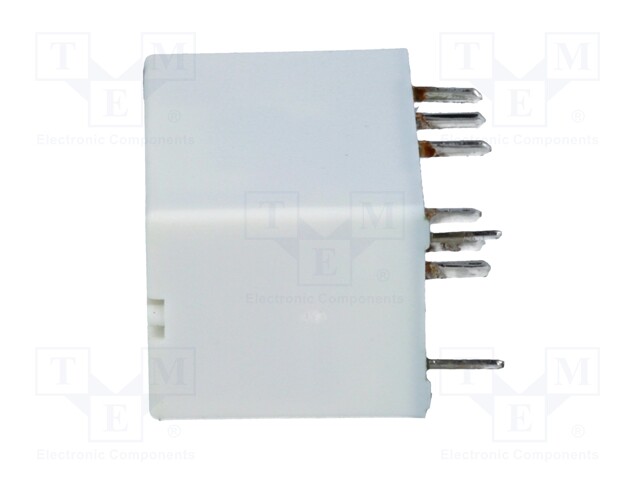

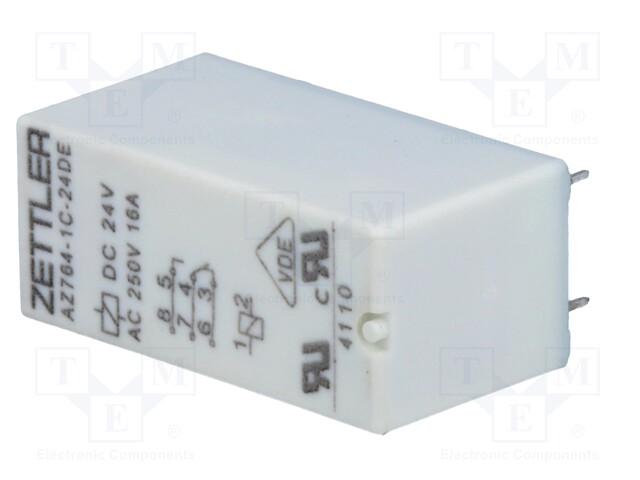

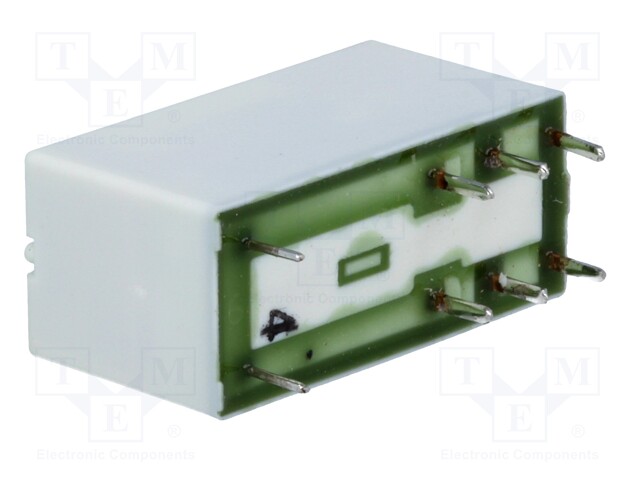

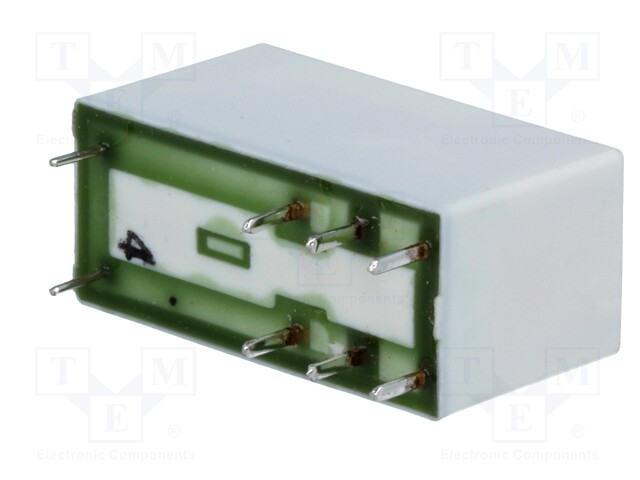

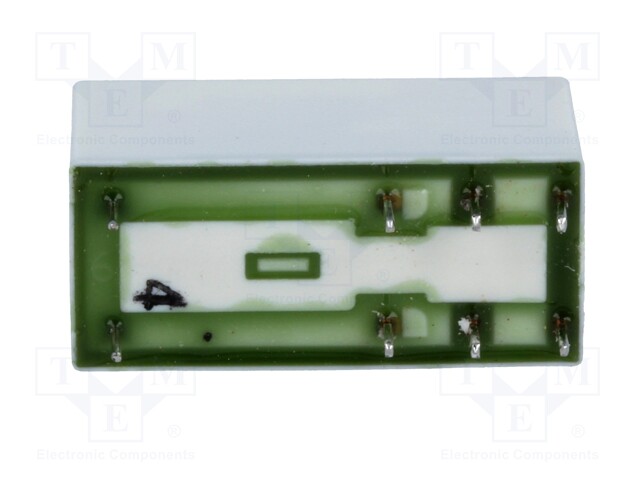

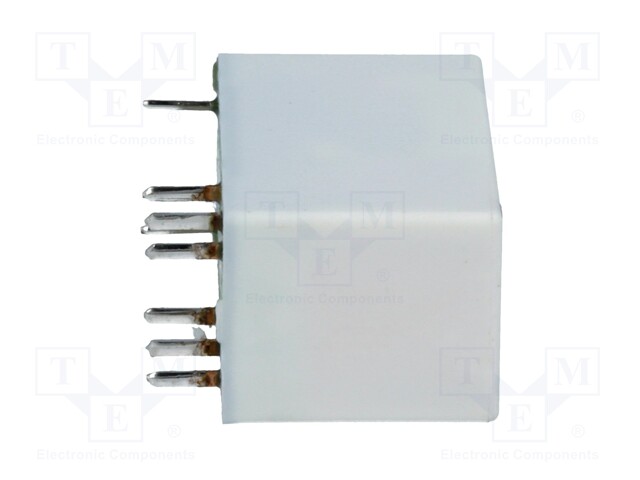

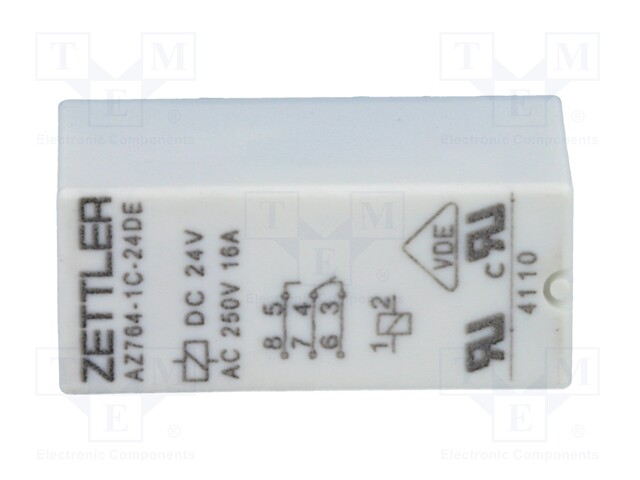

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A/250VAC; 16A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZ764-1C-24DE
    Manufacturer: ZETTLER
    Manufacturer code: AZ764-1C-24DE
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    4.34 € 4.34 € (wo VAT) 4.34 EUR

    4.34 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A/250VAC; 16A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Terminal pitch 5mm

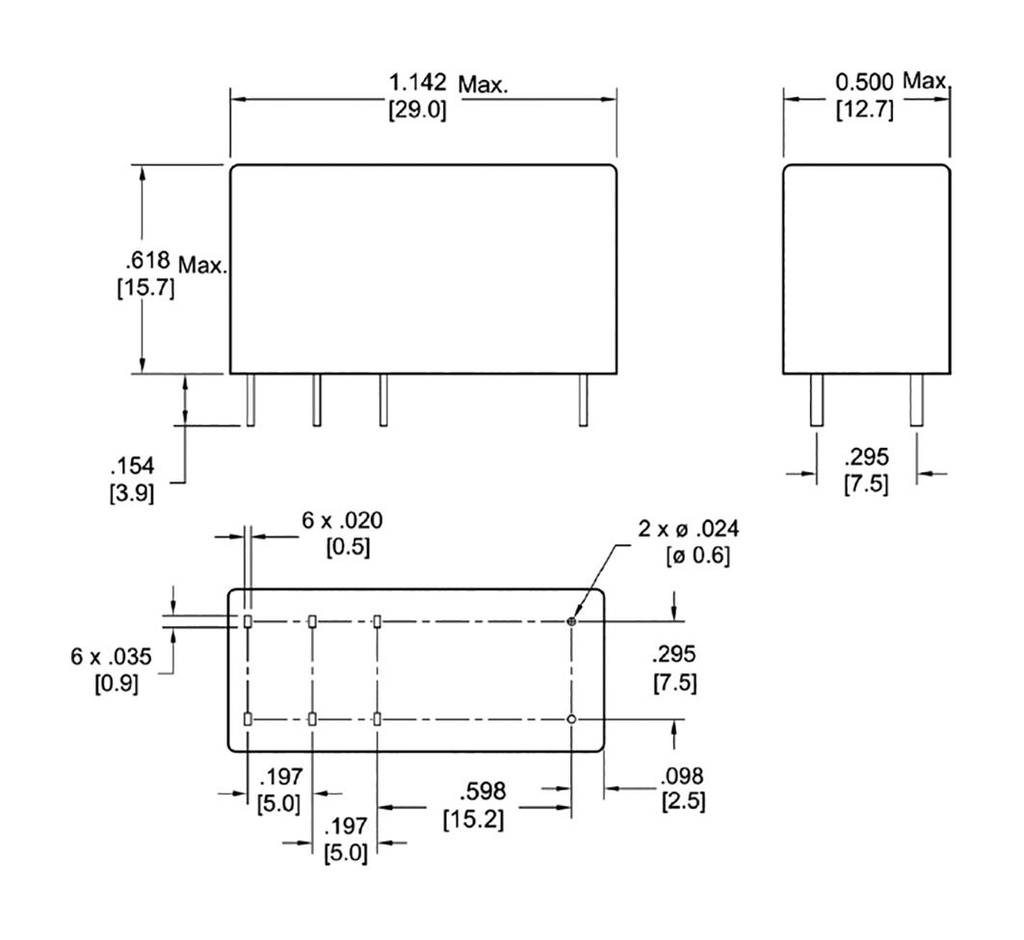

    Body dimensions 29x12.7x15.7mm
    Switched voltage max. 400V AC, max. 30V DC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC

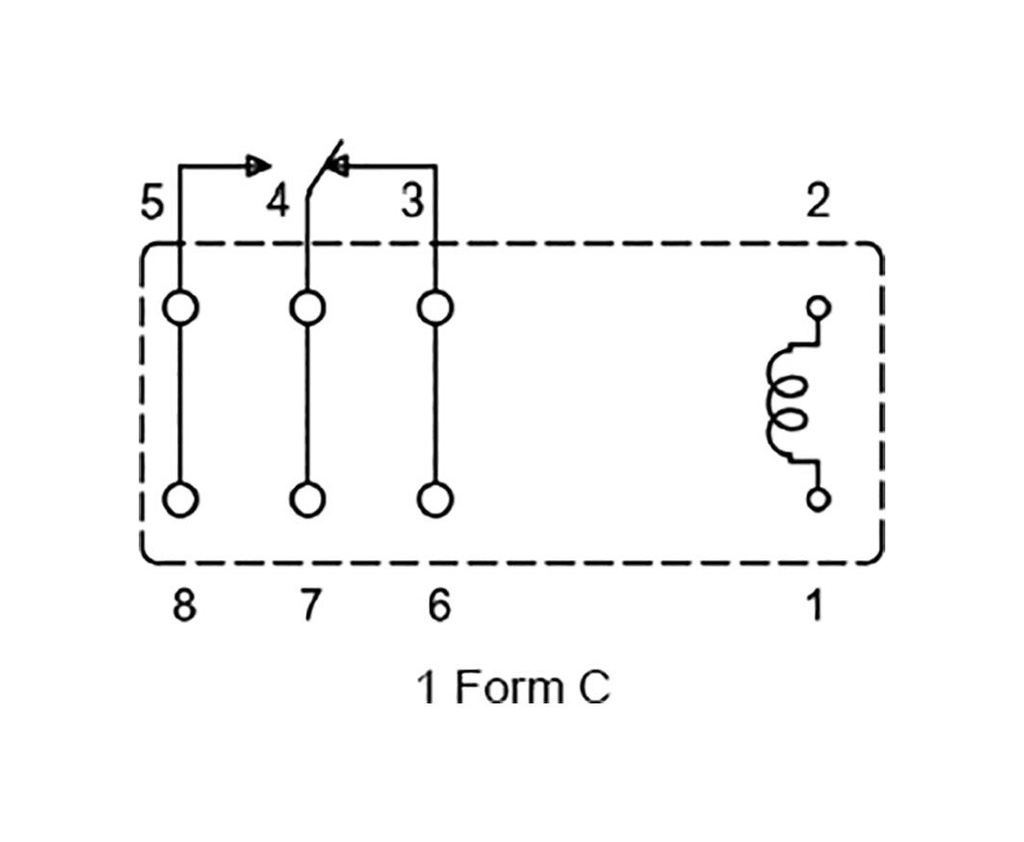

    Contacts configuration SPDT
    DC contacts rating @R 16A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 61.2V DC
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 400mW
    Operate time 7ms
    Release time 3ms
