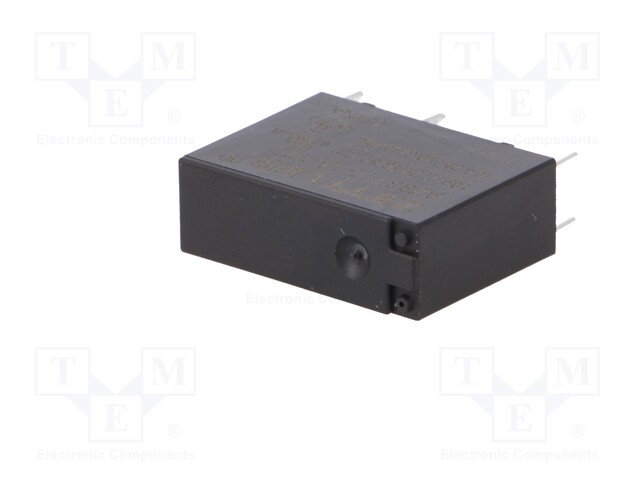

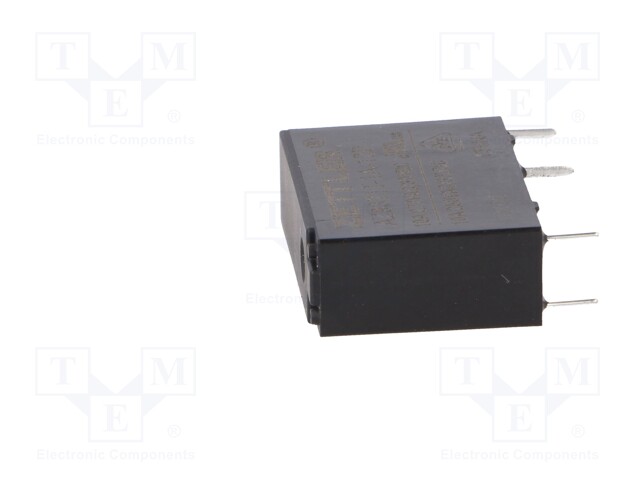

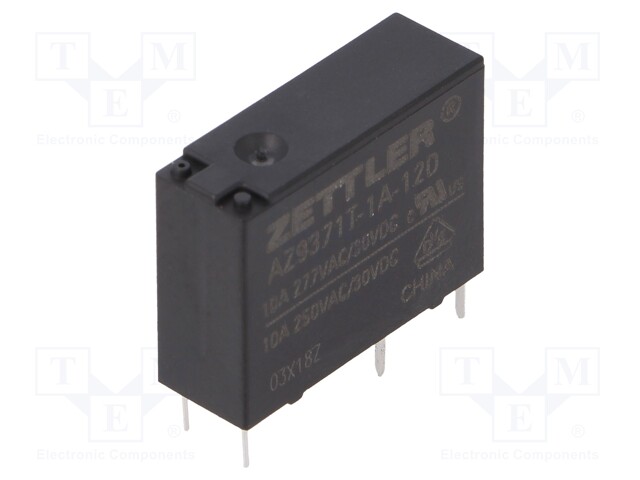

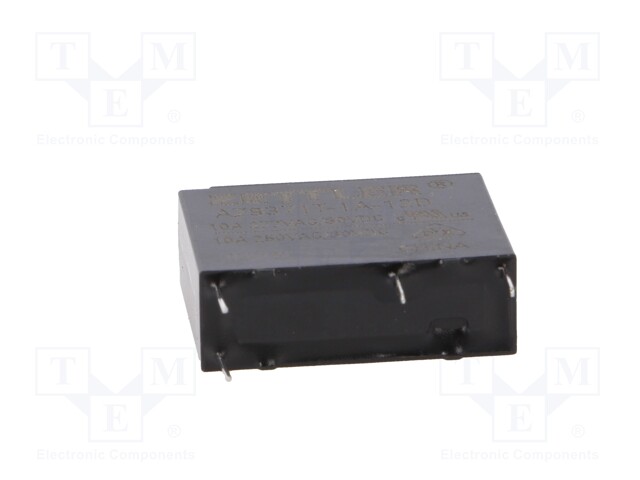

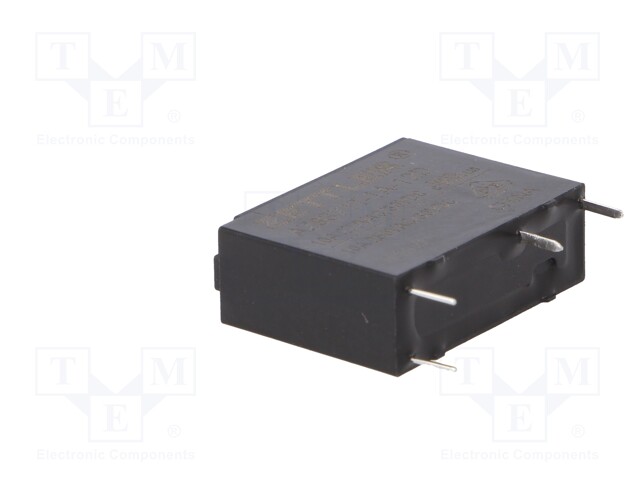

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/250VAC; 10A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZ9371T-1A-12D
    Manufacturer: ZETTLER
    Manufacturer code: AZ9371T-1A-12D
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    1.90 € 1.90 € (wo VAT) 1.9000000000000001 EUR

    1.90 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/250VAC; 10A

    Mounting PCB
    Operating temperature -40...105°C
    Contact material AgNi
    Terminal pitch 7mm

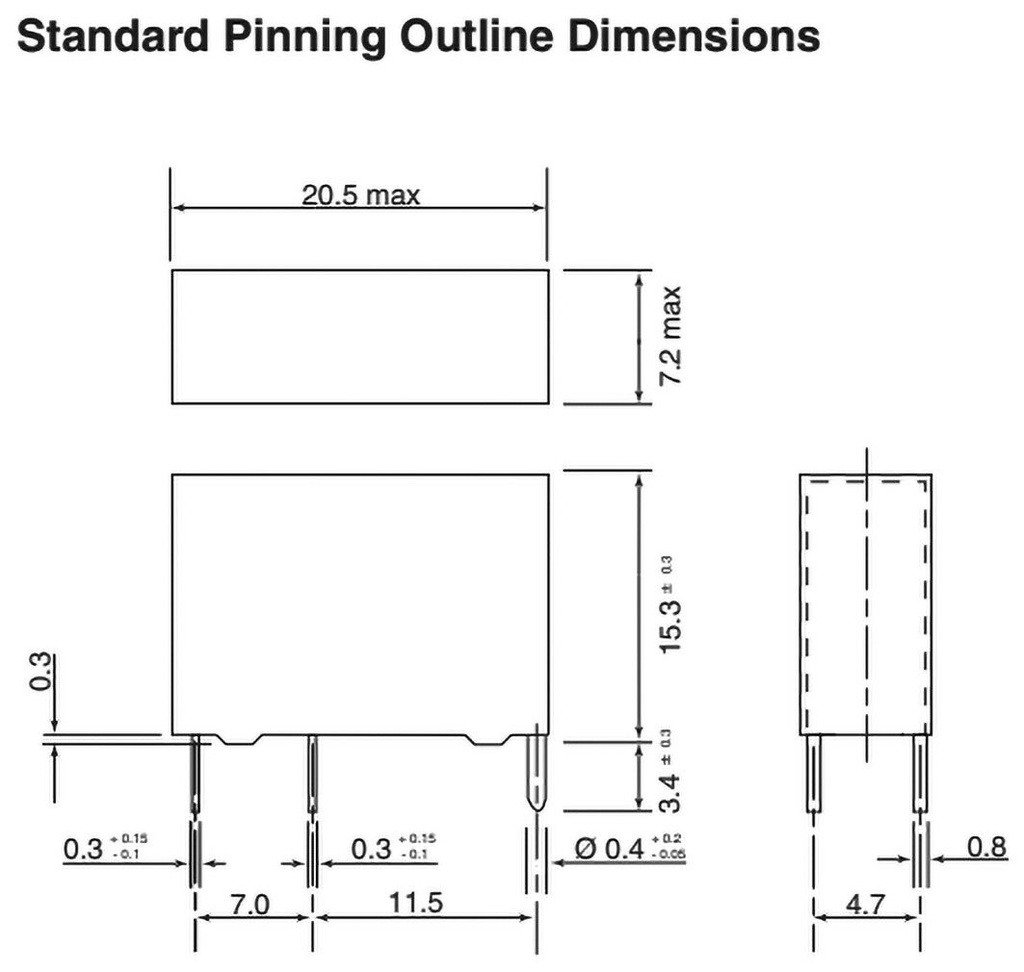

    Body dimensions 20.5x7.2x15.3mm
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC

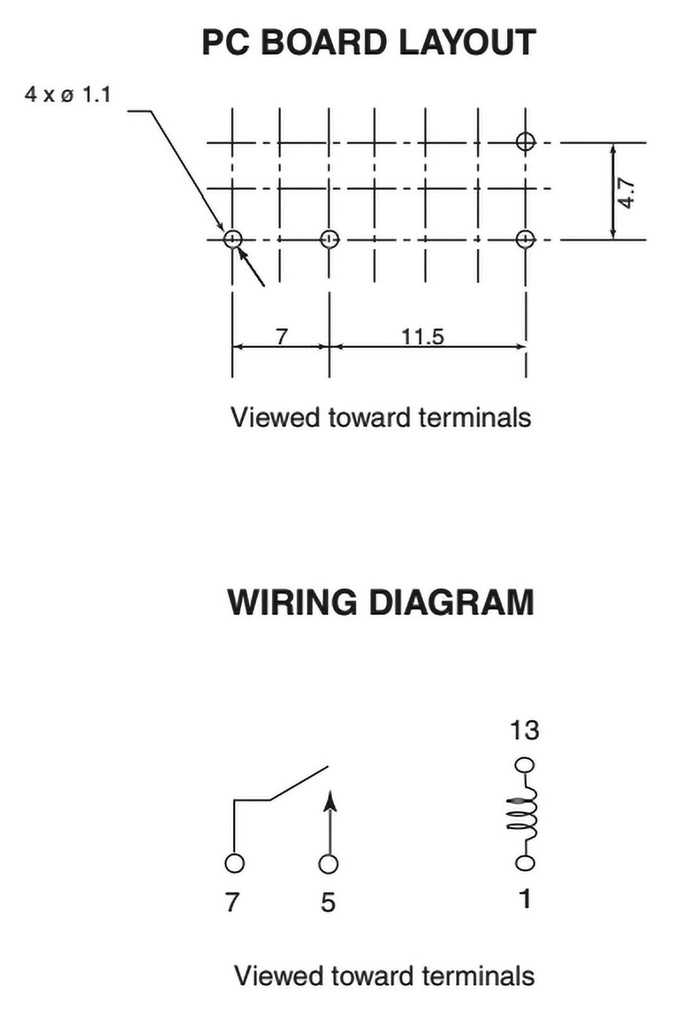

    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 113mW
    Operate time 6ms
    Release time 3ms
