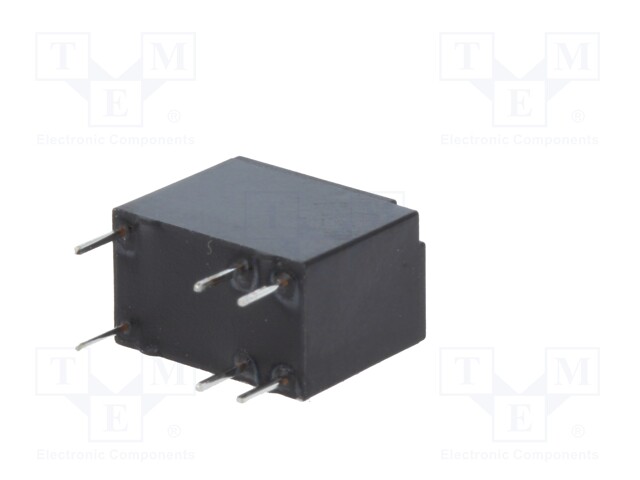

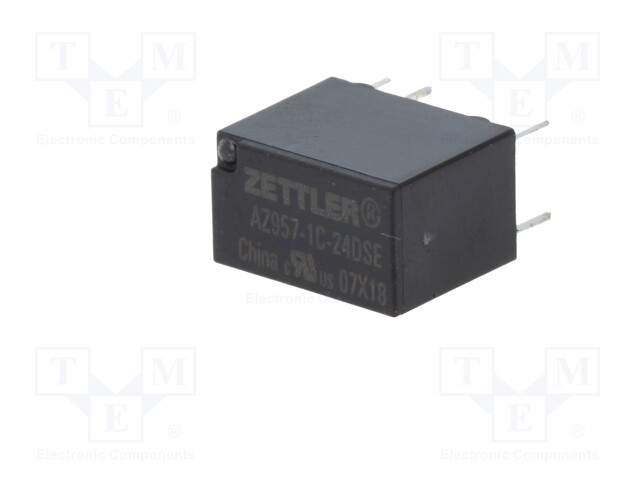

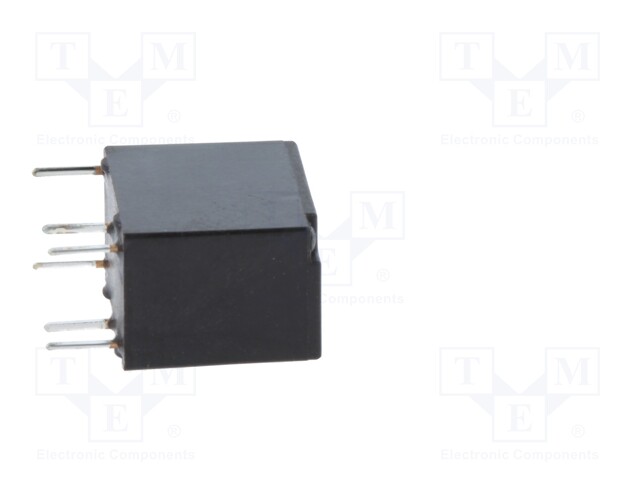

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZ957-1C-24DSE
    Manufacturer: ZETTLER
    Manufacturer code: AZ957-1C-24DSE
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    1.88 € 1.88 € (wo VAT) 1.8800000000000001 EUR

    1.88 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -40...80°C
    Contact material AgPd/Au 0,2μm
    Terminal pitch 2.54mm
    Switched voltage max. 60V DC, max. 125V AC
    Coil resistance 3.84kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 5ms
    Release time 1ms
