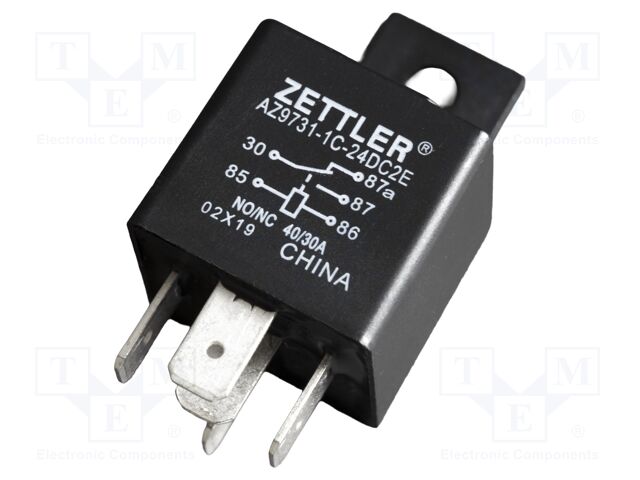

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; AZ9731

    Multiples: 1000.0
    Minimum quantity: 1000.0
    Product code: AZ9731-1C-24DC2E
    Manufacturer: ZETTLER
    Manufacturer code: AZ9731-1C-24DC2E
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; AZ9731

    Mounting on panel, socket
    Operating temperature -40...125°C
    Leads connectors
    Contact material AgSnO<sub>2</sub>
    Body dimensions 67.3x35.5x46.5mm
    Switched voltage max. 28V DC
    Coil resistance 360Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 40A / 14V DC
    Contact resistance 100MΩ
    Contact current max. 40A
    Relay variant automotive
    Type of relay electromagnetic
    Coil power consumption 680mW
