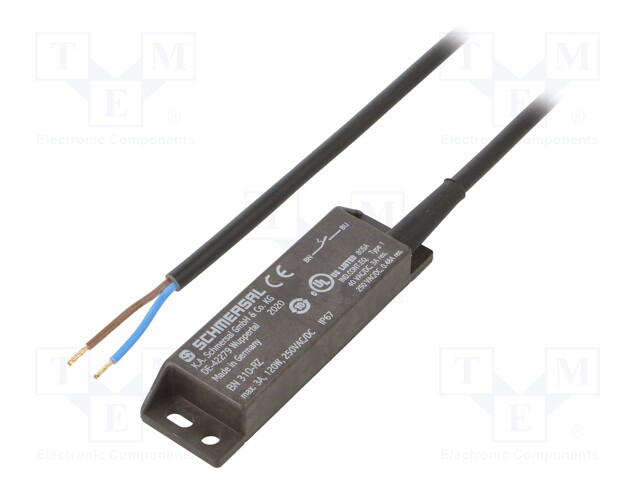

Sensor: reed switch; Series: BN 310; IP67; Electr.connect: 1m lead

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: BN 310-RZ
    Manufacturer: SCHMERSAL
    Manufacturer code: BN 310-RZ
    • Operating temperature
    • IP rating
    • Series
    • Body material
    • Body dimensions
    • Range
    • Switched voltage
    • Switched voltage
    • Kind of output
    • Electrical connection
    • Type of sensor
    • Switching capacity
    • Switching capacity
    • Switched current, max.

    58.42 € 58.42 € (wo VAT) 58.42 EUR

    58.42 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: reed switch; Series: BN 310; IP67; Electr.connect: 1m lead

    Operating temperature -25...75°C
    IP rating IP67
    Series BN 310
    Body material plastic
    Body dimensions 88x25x13mm
    Range 3...60mm
    Switched voltage max. 250V AC, max. 250V DC
    Kind of output bistable
    Electrical connection wires
    Type of sensor reed switch
    Switching capacity 120VA, 0.12kW
    Switched current, max. 3A
