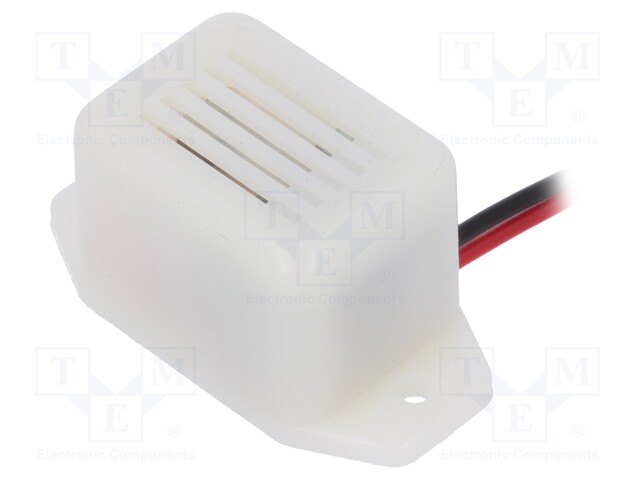

Sound transducer: elektromagnetic alarm; 25mA; -40÷70°C; 400Hz

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: BZ-30
    Manufacturer:
    Manufacturer code:
    • Operating voltage
    • Operating temperature
    • Leads
    • Body material
    • Mounting hole diameter
    • Operating current
    • Body dimensions
    • Mounting holes pitch
    • Sound level
    • Type of sound transducer
    • Sound frequency
    • Sound transducer features
    • Kind of sound

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sound transducer: elektromagnetic alarm; 25mA; -40÷70°C; 400Hz

    Operating voltage 2.3...9V DC
    Operating temperature -40...70°C
    Leads cables
    Body material ABS
    Mounting hole diameter 2.4mm
    Operating current 25mA

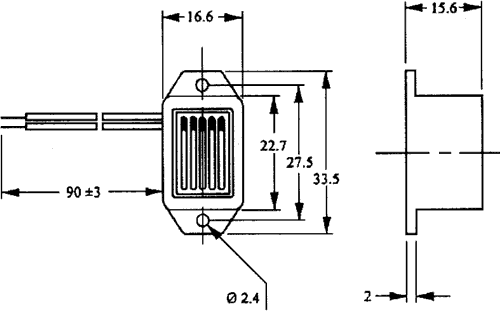

    Body dimensions 22.7x16.6x15.6mm
    Mounting holes pitch 27.5mm
    Sound level 75dB (d=0.1 m)
    Type of sound transducer elektromagnetic alarm
    Sound frequency 400Hz
    Sound transducer features with built-in generator
    Kind of sound continuous
