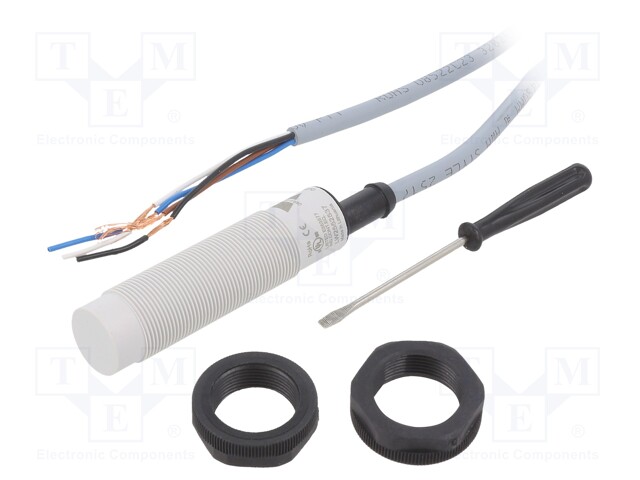

Sensor: capacitive; Range: 0÷12mm; OUT: NPN / NO + NC; Housing: M18

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: CA18CAN12NA
    Manufacturer: CARLO GAVAZZI
    Manufacturer code: CA18CAN12NA
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Body material
    • Range
    • Output configuration
    • Indication
    • Type of sensor
    • Sensors features
    • Switch housing
    • Switching frequency max
    • Kind of forehead

    104.83 € 104.83 € (wo VAT) 104.83 EUR

    104.83 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: capacitive; Range: 0÷12mm; OUT: NPN / NO + NC; Housing: M18

    Supply voltage 10...40V DC
    Max. operating current 200mA
    Operating temperature -30...85°C
    IP rating IP67
    Body material PBT
    Range 0...12mm
    Output configuration NPN / NO + NC
    Indication LED
    Type of sensor capacitive
    Sensors features sensitivity adjustable
    Switch housing M18
    Switching frequency max 50Hz
    Kind of forehead non-embedded
