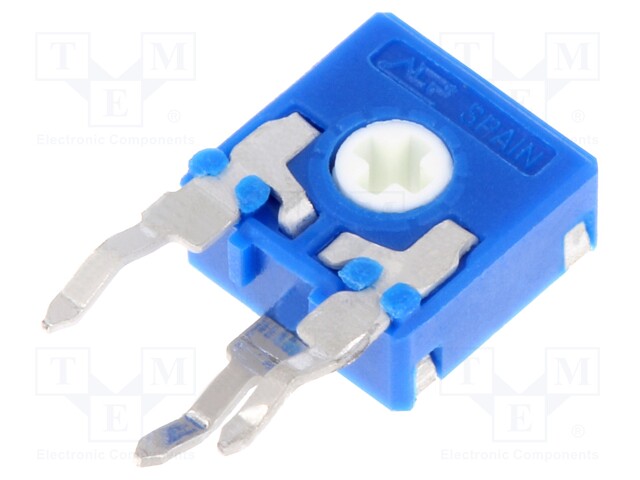

Potentiometer: mounting; single turn,vertical; 2.5kΩ; 100mW; ±20%

    Multiples: 10.0
    Minimum quantity: 10.0
    Product code: CA6H 2K5
    Manufacturer: ACP
    Manufacturer code: CA6H 2K5
    • Mounting
    • Power
    • Resistance
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Electrical rotation angle

    0.38 € 0.38 € (wo VAT) 0.38 EUR

    0.38 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: mounting; single turn,vertical; 2.5kΩ; 100mW; ±20%

    Mounting THT
    Power 100mW
    Resistance 2.5kΩ
    Operating voltage 100V
    Operating temperature -25...70°C
    Tolerance ±20%
    Terminal pitch 5x2.5mm

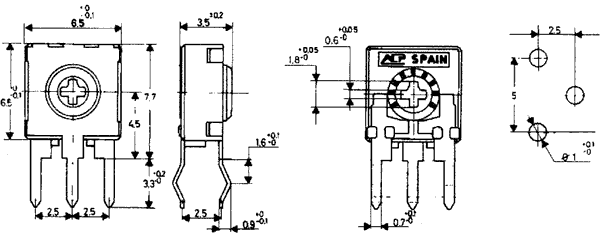

    Body dimensions 6.5x6.5x3.5mm
    Kind of potentiometer single turn, vertical
    Type of potentiometer mounting
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 235 ±10°
    Electrical rotation angle 215 ±20°
