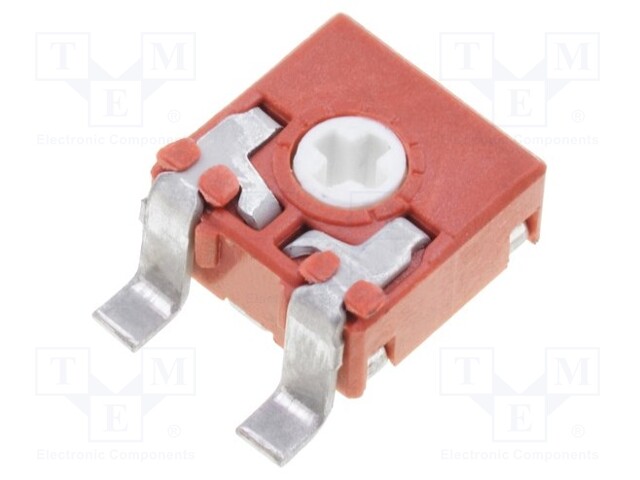

Potentiometer: mounting; single turn; 5kΩ; 100mW; SMD; ±20%; linear

    Multiples: 10.0
    Minimum quantity: 10.0
    Product code: CA6XVSMD-5KA2525
    Manufacturer: ACP
    Manufacturer code: CA6XVSMD-5KA2525
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • Tolerance
    • Kind of package
    • Body dimensions
    • Max. operating voltage
    • Mechanical durability
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Electrical rotation angle

    0.46 € 0.46 € (wo VAT) 0.46 EUR

    0.46 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: mounting; single turn; 5kΩ; 100mW; SMD; ±20%; linear

    Mounting SMD
    Power 100mW
    Resistance 5kΩ
    Operating temperature -25...70°C
    Tolerance ±20%
    Kind of package bag
    Body dimensions 6.5x6.5x3.6mm
    Max. operating voltage 100V DC
    Mechanical durability 1000cycles
    Kind of potentiometer single turn
    Type of potentiometer mounting
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 235 ±10°
    Electrical rotation angle 215 ±20°
