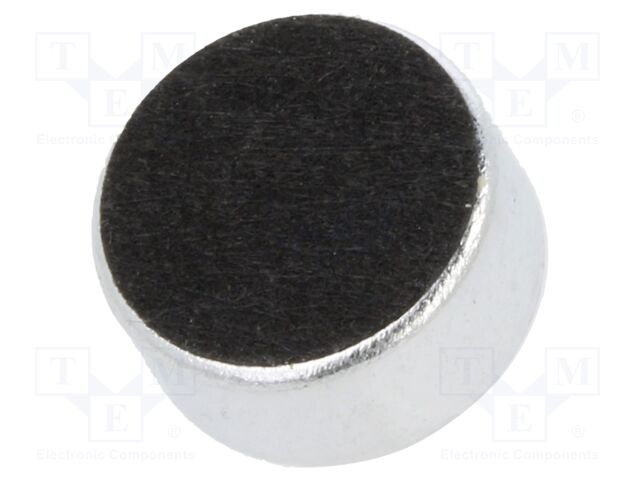

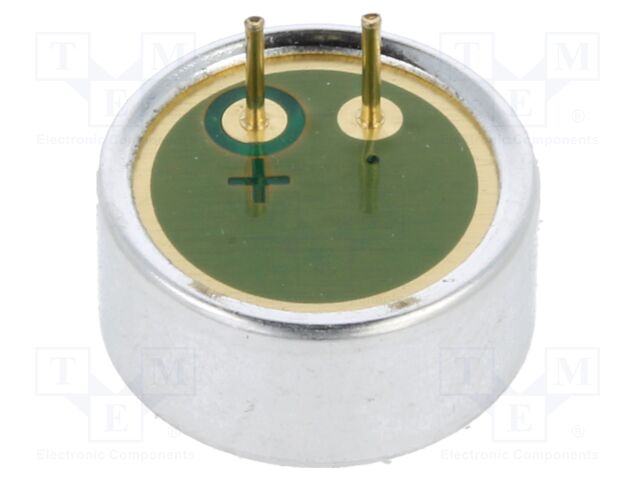

Microphone; electret; 100Hz÷10kHz; 2.2kΩ; -37dB; Ø9.7x4.5mm; 500uA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: CMEJ-9745-37-P
    Manufacturer: CUI Devices
    Manufacturer code: CMEJ-9745-37-P
    • Mounting
    • Operating voltage
    • Operating temperature
    • Material
    • Terminal pitch
    • Impedance
    • Operating current
    • Body dimensions
    • Bandwidth
    • Type of sound transducer
    • Kind of microphone

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Microphone; electret; 100Hz÷10kHz; 2.2kΩ; -37dB; Ø9.7x4.5mm; 500uA

    Mounting THT
    Operating voltage 1...10V
    Operating temperature -40...70°C
    Material aluminium
    Terminal pitch 2.54mm
    Impedance 2.2kΩ
    Operating current 500µA
    Body dimensions Ø9.7x4.5mm
    Bandwidth 100...10000Hz
    Type of sound transducer microphone
    Kind of microphone electret
