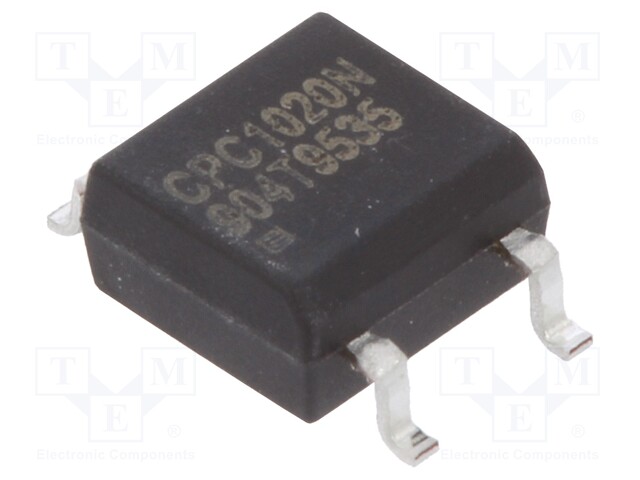

Relay: solid state; 1.2A; max.30VDC; max.30VAC; SMT; SOP4; -40÷85°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: CPC1020N
    Manufacturer: IXYS
    Manufacturer code: CPC1020N
    • Mounting
    • Case
    • Max. operating current
    • Operating temperature
    • Turn-on time
    • Series
    • On-state resistance
    • Body dimensions
    • Insulation voltage
    • Switched voltage
    • Switched voltage
    • Kind of output
    • Turn-off time
    • Contacts configuration
    • Relay variant
    • Type of relay
    • Control current max.

    13.01 € 13.01 € (wo VAT) 13.01 EUR

    13.01 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: solid state; 1.2A; max.30VDC; max.30VAC; SMT; SOP4; -40÷85°C

    Mounting SMT
    Case SOP4
    Max. operating current 1.2A
    Operating temperature -40...85°C
    Turn-on time 3ms
    Series OptoMOS
    On-state resistance 250mΩ
    Body dimensions 4.09x3.81x2.03mm
    Insulation voltage 1.5kV
    Switched voltage max. 30V AC, max. 30V DC
    Kind of output MOSFET
    Turn-off time 3ms
    Contacts configuration SPST-NO
    Relay variant current source
    Type of relay solid state
    Control current max. 50mA
