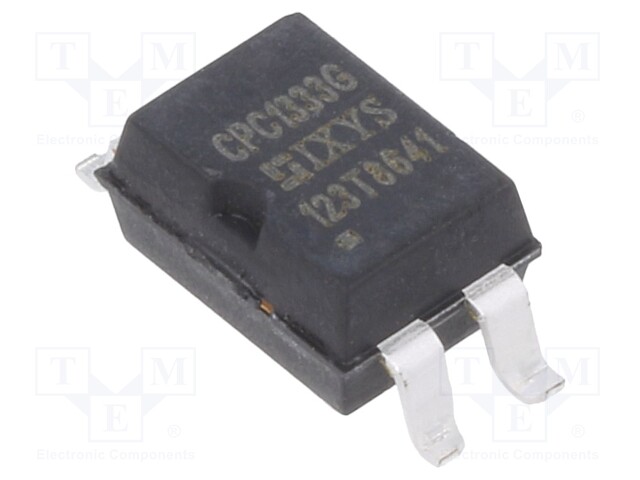

Relay: solid state; SPST-NC; Icntrl max: 50mA; 130mA; max.350VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: CPC1333GR
    Manufacturer: IXYS
    Manufacturer code: CPC1333GR
    • Mounting
    • Case
    • Operating temperature
    • Turn-on time
    • Series
    • On-state resistance
    • Body dimensions
    • Insulation voltage
    • Switched voltage
    • Switched voltage
    • Kind of output
    • Turn-off time
    • Contacts configuration
    • Relay variant
    • Relay variant
    • Type of relay
    • Control current max.

    2.64 € 2.64 € (wo VAT) 2.64 EUR

    2.64 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: solid state; SPST-NC; Icntrl max: 50mA; 130mA; max.350VAC

    Mounting SMT
    Case DIP4
    Operating temperature -40...85°C
    Turn-on time 2ms
    Series OptoMOS
    On-state resistance 30Ω
    Body dimensions 4.57x6.35x3.3mm
    Insulation voltage 5kV
    Switched voltage max. 350V AC, max. 350V DC
    Kind of output MOSFET
    Turn-off time 3ms
    Contacts configuration SPST-NC
    Relay variant 1-phase, current source
    Type of relay solid state
    Control current max. 50mA
