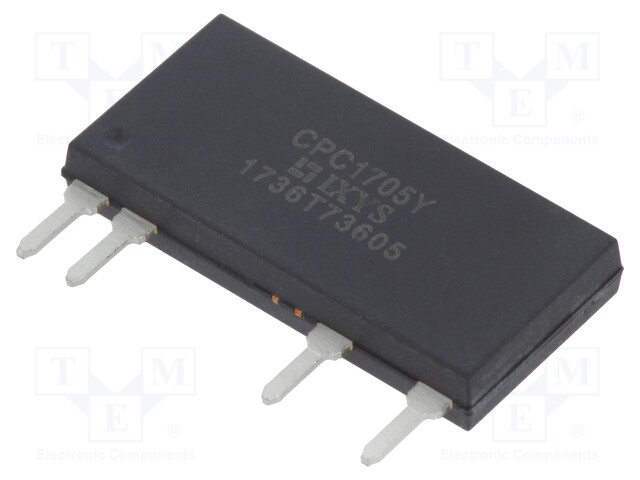

Relay: solid state; SPST-NC; Icntrl max: 50mA; 3.25A; max.60VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: CPC1705Y
    Manufacturer: IXYS
    Manufacturer code: CPC1705Y
    • Mounting
    • Case
    • Max. operating current
    • Operating temperature
    • Turn-on time
    • Series
    • On-state resistance
    • Body dimensions
    • Insulation voltage
    • Switched voltage
    • Kind of output
    • Turn-off time
    • Contacts configuration
    • Relay variant
    • Type of relay
    • Control current max.

    6.59 € 6.59 € (wo VAT) 6.59 EUR

    6.59 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: solid state; SPST-NC; Icntrl max: 50mA; 3.25A; max.60VDC

    Mounting THT
    Case SOP4
    Max. operating current 3250mA
    Operating temperature -40...85°C
    Turn-on time 2ms
    Series OptoMOS
    On-state resistance 90mΩ
    Body dimensions 21.08x10.16x3.3mm
    Insulation voltage 2.5kV
    Switched voltage max. 60V DC
    Kind of output MOSFET
    Turn-off time 12ms
    Contacts configuration SPST-NC
    Relay variant current source
    Type of relay solid state
    Control current max. 50mA
