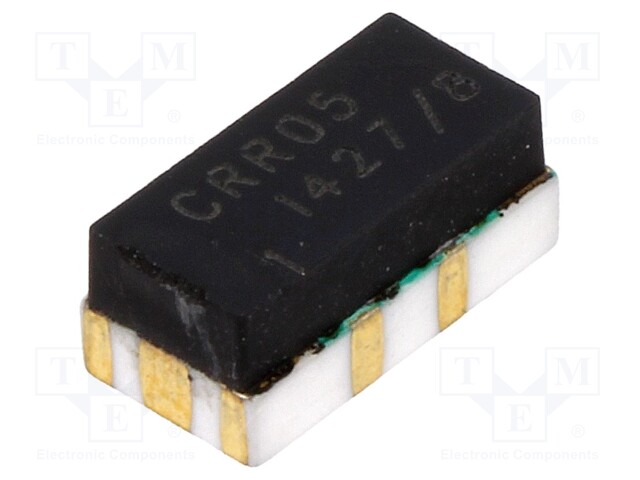

Relay: reed; SPST-NO; Ucoil: 5VDC; 0.5A; max.170VDC; max.170VAC; 10W

    Multiples: 250.0
    Minimum quantity: 250.0
    Product code: CRR05-1A
    Manufacturer: MEDER
    Manufacturer code: CRR05-1A
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time

    6.81 € 6.81 € (wo VAT) 6.8100000000000005 EUR

    6.81 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPST-NO; Ucoil: 5VDC; 0.5A; max.170VDC; max.170VAC; 10W

    Mounting SMD
    Operating temperature -40...125°C

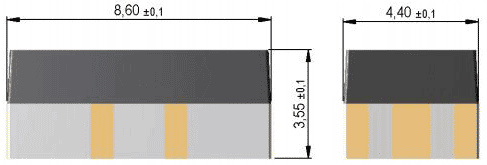

    Body dimensions 4.4x8.6x3.55mm
    Switched voltage max. 170V AC, max. 170V DC
    Switching capacity 10W
    Coil resistance 150Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact current max. 500mA
    Type of relay reed
    Coil power consumption 167mW
    Operate time 600µs
