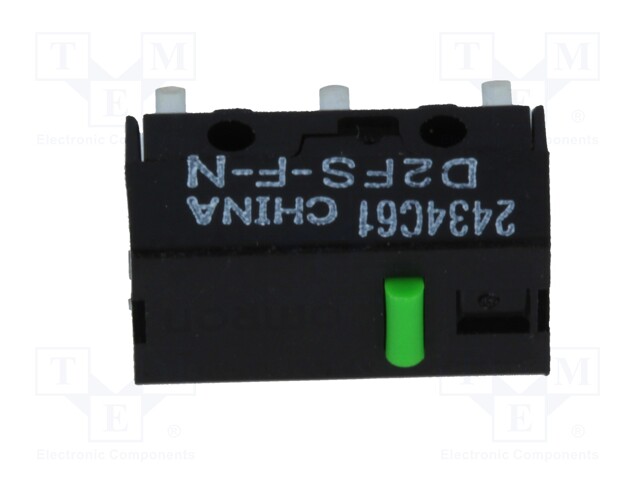

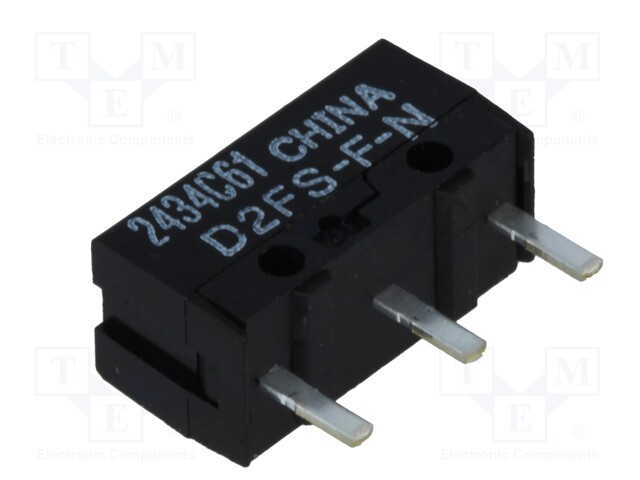

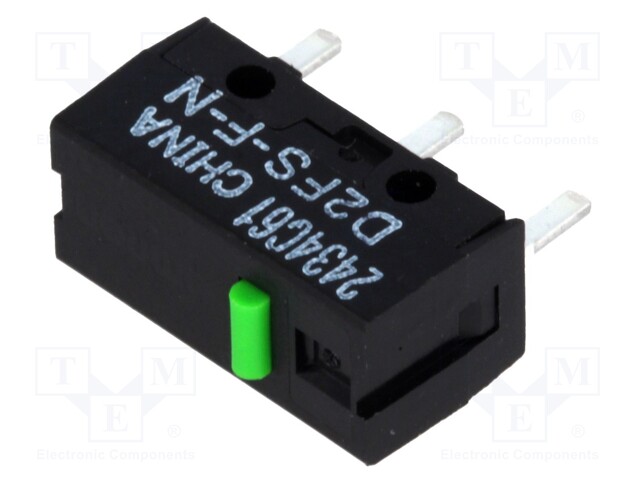

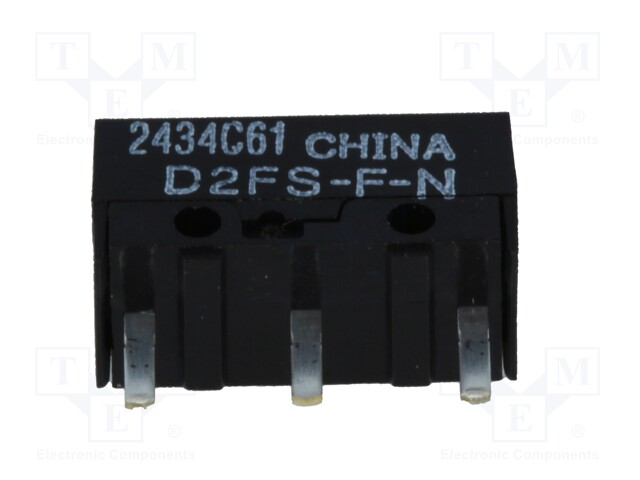

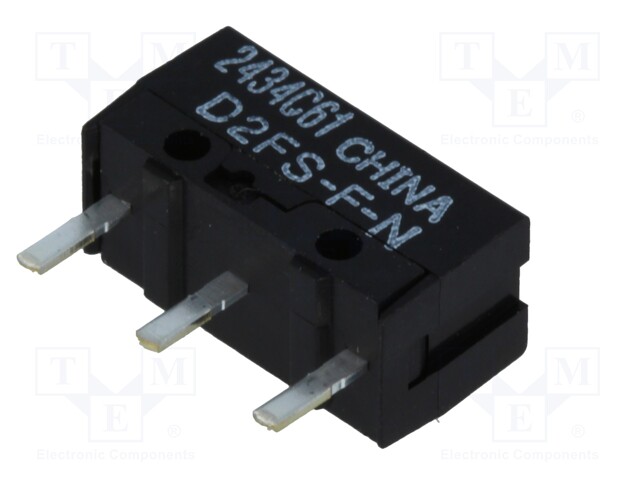

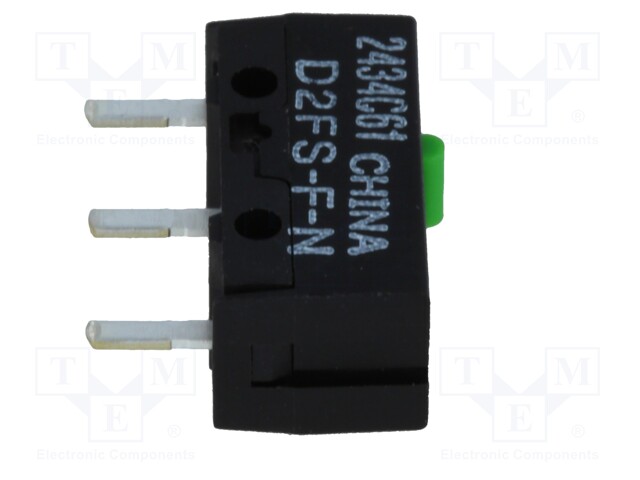

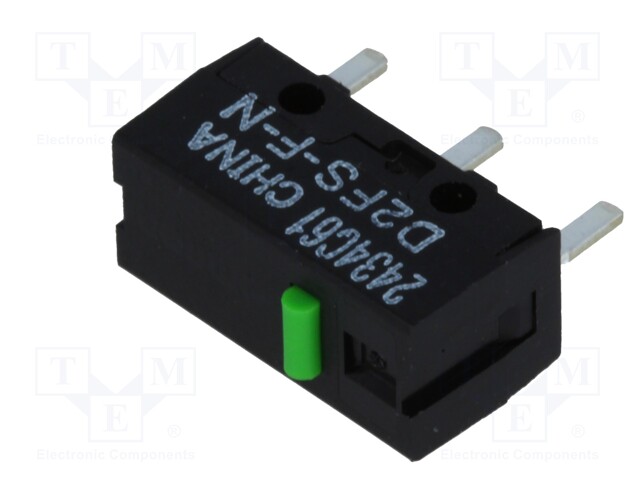

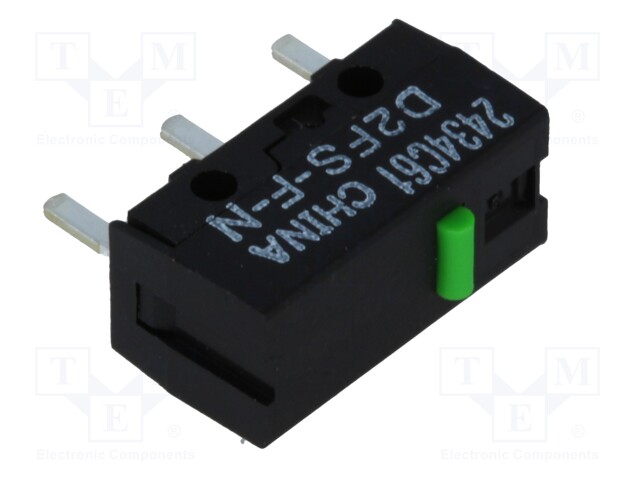

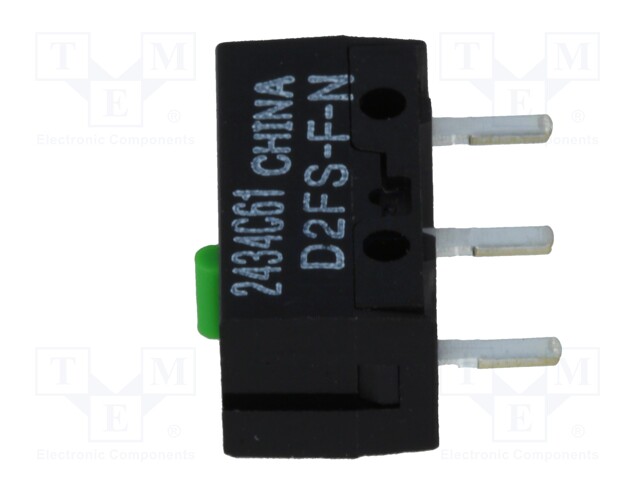

Microswitch SNAP ACTION; without lever; SPST-NO; 0.1A/6VDC; IP40

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: D2FS-F-N
    Manufacturer: OMRON OCB
    Manufacturer code: D2FS-F-N
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body material
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Key stroke
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force

    1.05 € 1.05 € (wo VAT) 1.05 EUR

    1.05 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Microswitch SNAP ACTION; without lever; SPST-NO; 0.1A/6VDC; IP40

    Operating temperature -20...70°C
    IP rating IP40
    Type of switch microswitch SNAP ACTION
    Switches features without lever
    Number of positions 2
    Leads for PCB, straight
    Contact material silver
    Max. contact resistance: 100mΩ
    Terminal pitch 5.08mm
    Body material plastic

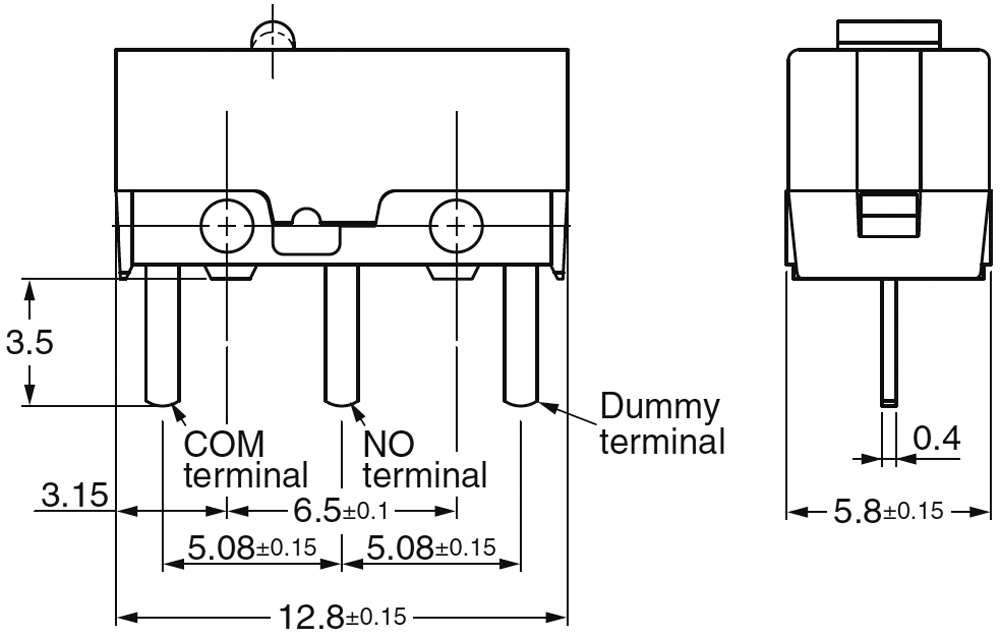

    Body dimensions 12.8x6.5x5.8mm
    Mechanical durability 100000cycles
    Electrical life 10000cycles
    Key stroke 0.5mm
    Contacts configuration SPST-NO
    DC contacts rating @R 0.1A / 6V DC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 0.85N
