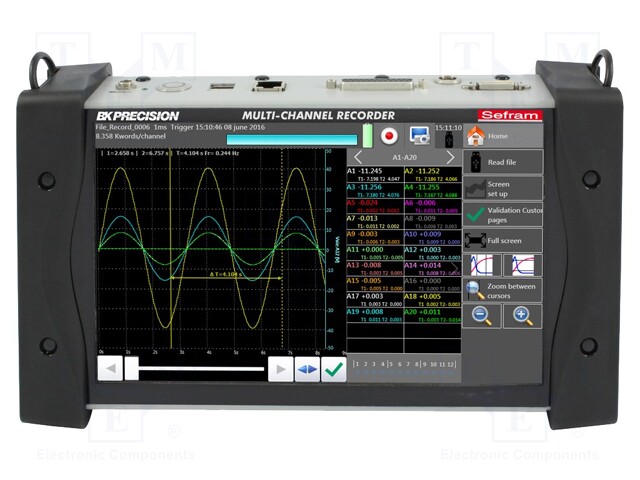

Meter: data acquisition system; Channels: 20; 1.5kg; 66x298x176mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DAS240BAT
    Manufacturer: SEFRAM
    Manufacturer code: DAS240BAT
    • Number of channels
    • Interface
    • Interface
    • Interface
    • Body dimensions
    • Kind of display used
    • Resolution
    • Program memory
    • Output
    • Conform to the norm
    • Input
    • Measuring instrument features
    • Measuring instrument features
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Type of meter
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement

    4,684.95 € 4,684.95 € (wo VAT) 4684.95 EUR

    4,684.95 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Meter: data acquisition system; Channels: 20; 1.5kg; 66x298x176mm

    Number of channels 20
    Interface Ethernet, USB, WiFi (option)
    Body dimensions 66x298x176mm
    Kind of display used TFT 10"
    Resolution 16bit
    Program memory 32GB
    Output alarm x4
    Conform to the norm EN 61010
    Input logical x12
    Measuring instrument features datalogging, operates with thermocouple types: J, K, T, S, B, E, N, C, L, Pt100, PT1000
    Standard equipment cleaning cloth, manual (CD), power supply, stylus, test lead, male connector with 25 pins male, measurement module (20 channels) with connectors, manufacturer's calibration certificate
    Type of meter data acquisition system
    Measurement AC current, AC voltage, DC current, DC voltage, frequency, resistance, temperature (external probe required Pt100, Pt1000)
