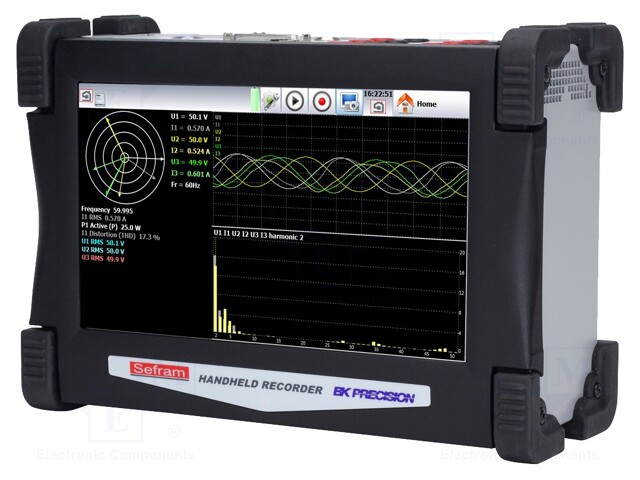

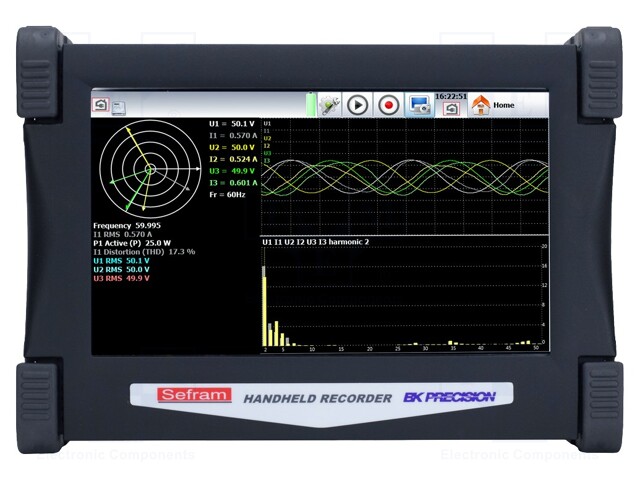

Meter: data acquisition system; Sampling: 1Msps; Band: 100kHz

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DAS60
    Manufacturer: SEFRAM
    Manufacturer code: DAS60
    • Number of channels
    • Interface
    • Interface
    • Body dimensions
    • Kind of display used
    • Resolution
    • Program memory
    • Power supply
    • Max. input voltage
    • Conform to the norm
    • Conform to the norm
    • Input
    • Input
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Type of meter
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Sampling

    8,888.76 € 8,888.76 € (wo VAT) 8888.76 EUR

    8,888.76 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Meter: data acquisition system; Sampling: 1Msps; Band: 100kHz

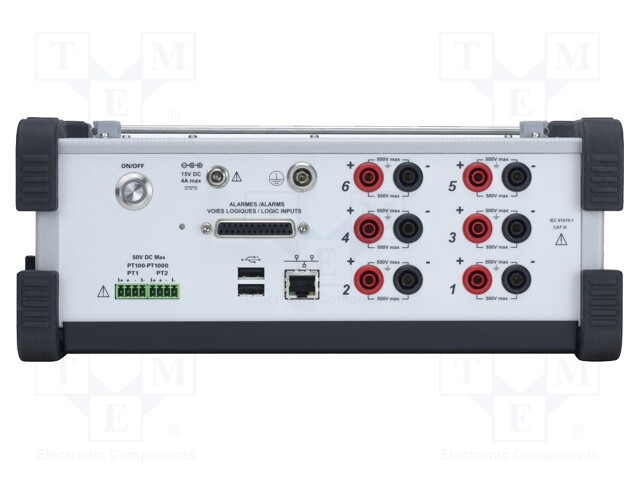

    Number of channels 6
    Interface Ethernet, USB
    Body dimensions 295x210x105mm
    Kind of display used TFT 10"
    Resolution 14bit
    Program memory 64MB
    Power supply Li-Ion 10,8V rechargeable battery
    Max. input voltage 500V
    Conform to the norm CAT III 600V, EN 61010
    Input logical x16, Pt 100/Pt1000 x2
    Measuring instrument features automatic calculation of polarization index, datalogging, power quality analyse function
    Standard equipment case, crocodile clips, manual (CD), power supply, test leads, banana plug
    Type of meter data acquisition system
    Measurement AC voltage, DC voltage, frequency, temperature (external probe required Pt100, Pt1000), temperature (external probe required Pt100)
    Sampling 1Msps
