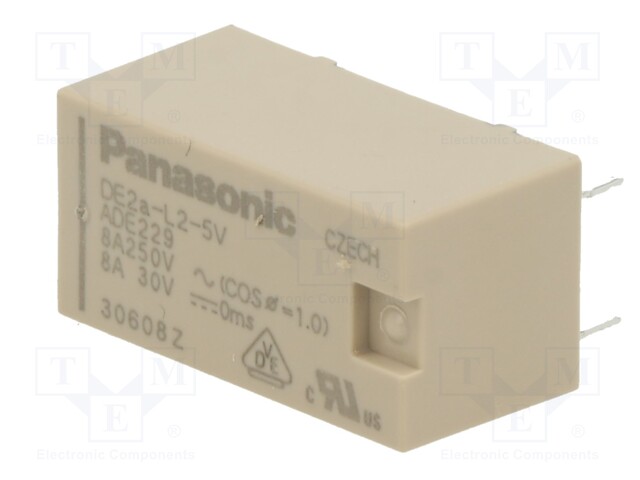

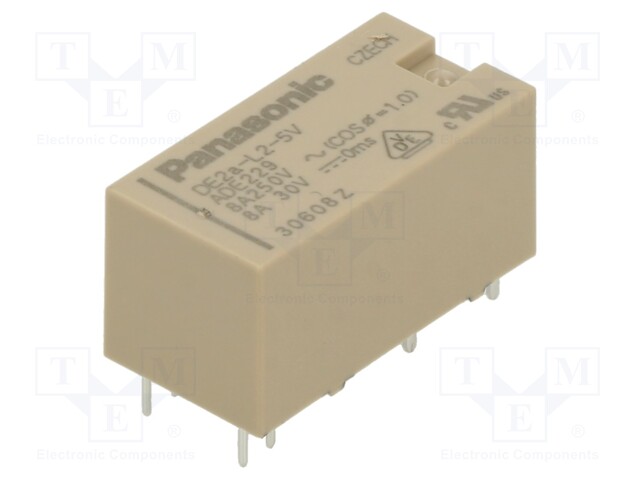

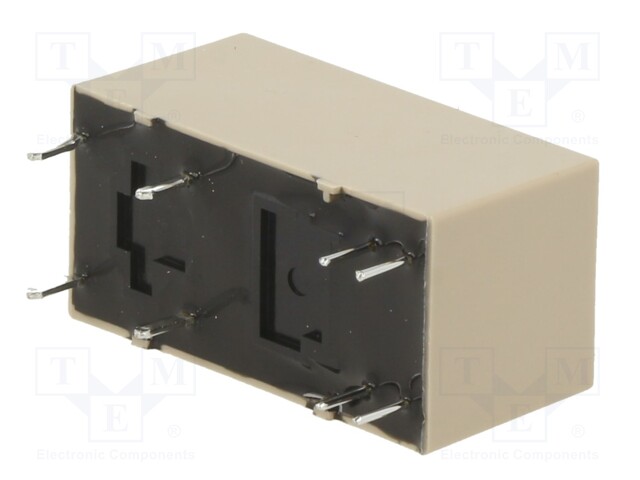

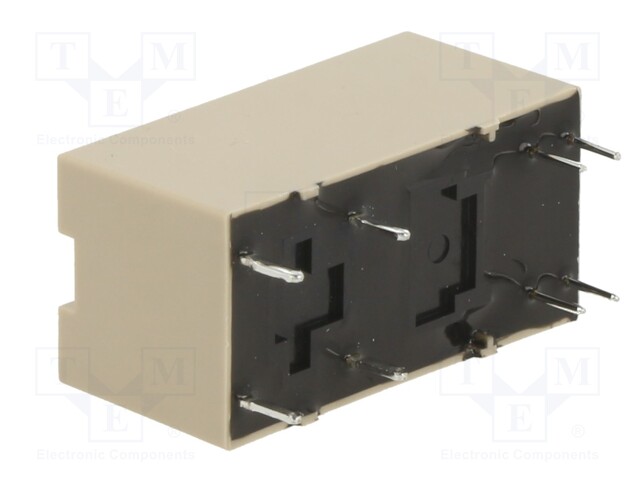

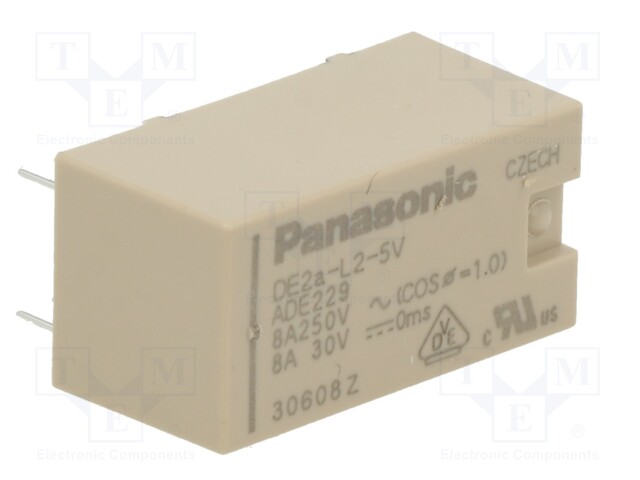

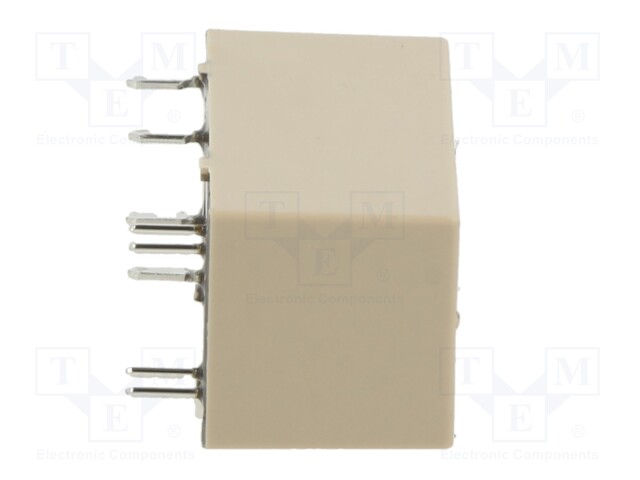

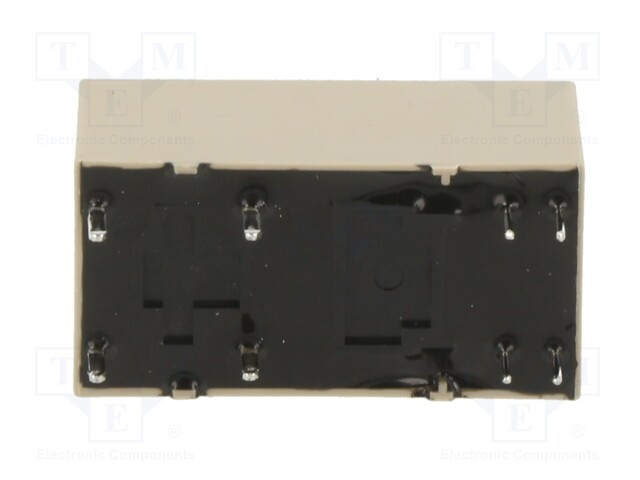

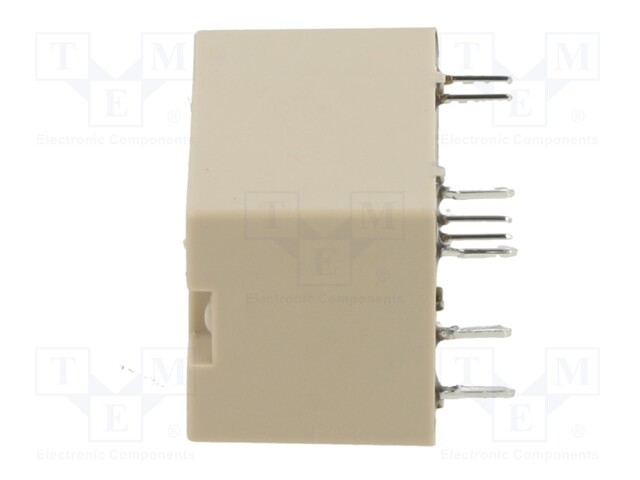

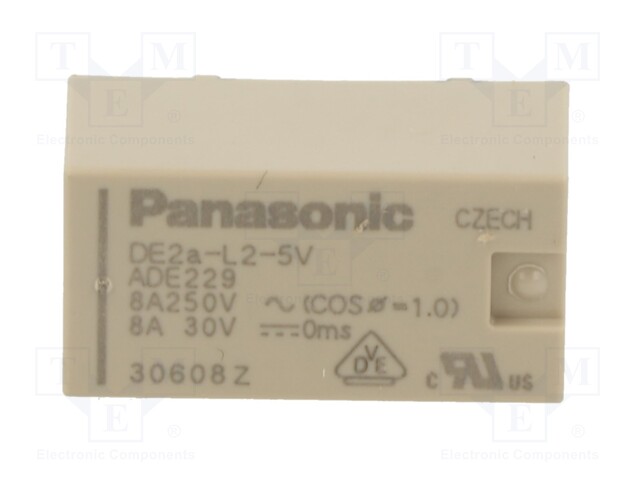

Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; Icontacts max: 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DE2AL25D
    Manufacturer: PANASONIC
    Manufacturer code: DE2AL25D
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    21.13 € 21.13 € (wo VAT) 21.13 EUR

    21.13 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; Icontacts max: 8A

    Mounting PCB
    Operating temperature -40...70°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 25x12.5x12.5mm
    Mechanical durability 10000000cycles
    Switched voltage max. 30V DC, max. 250V AC
    Coil resistance 125Ω
    Rated coil voltage 5V DC
    Contacts configuration DPST-NO
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 200mW
    Coil current 40mA
