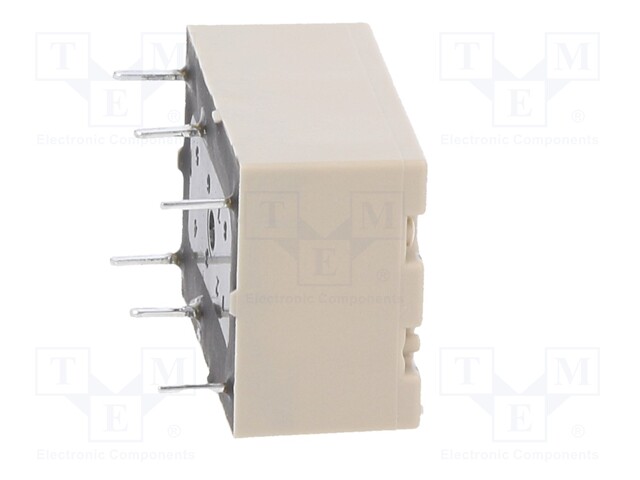

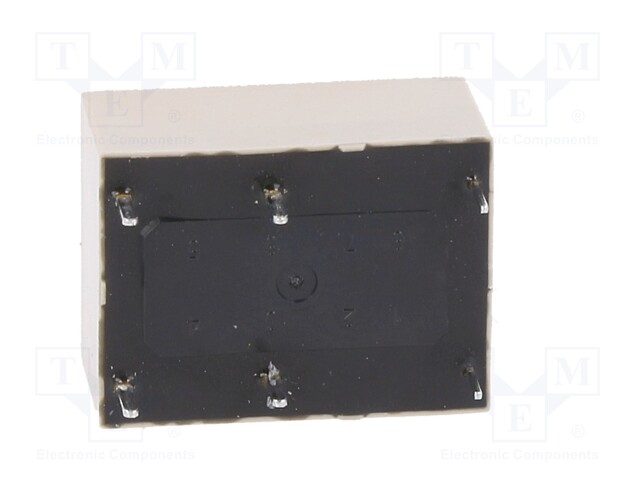

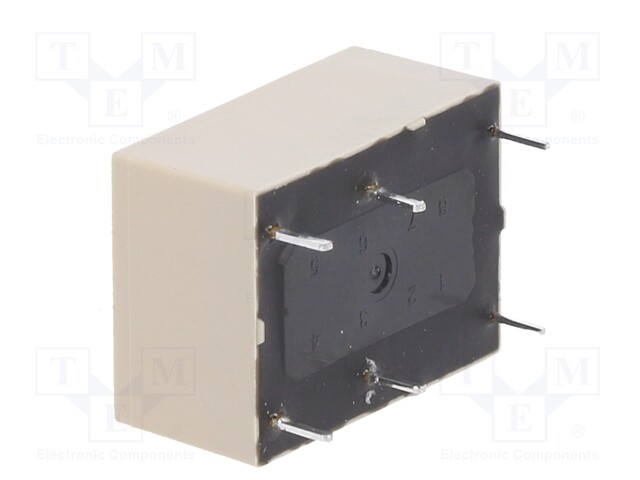

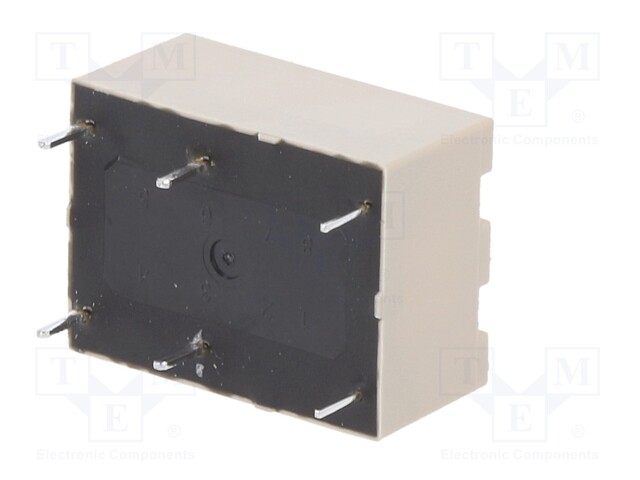

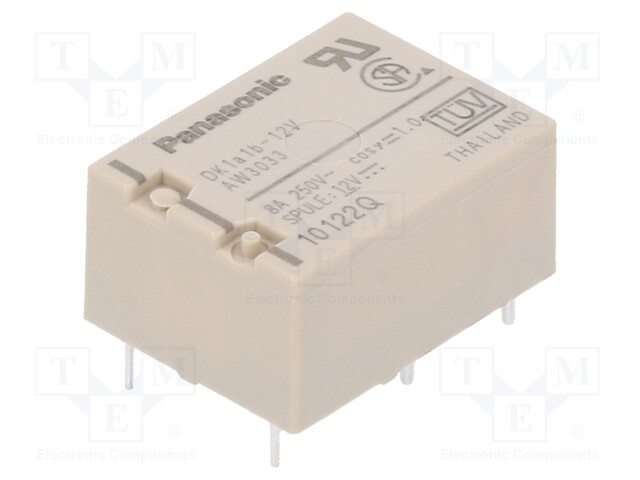

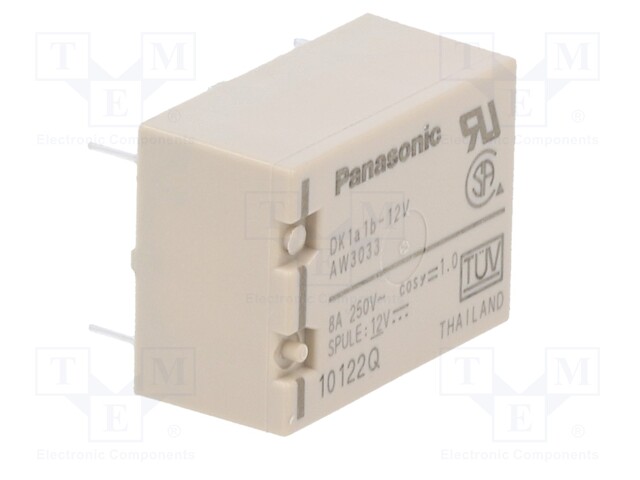

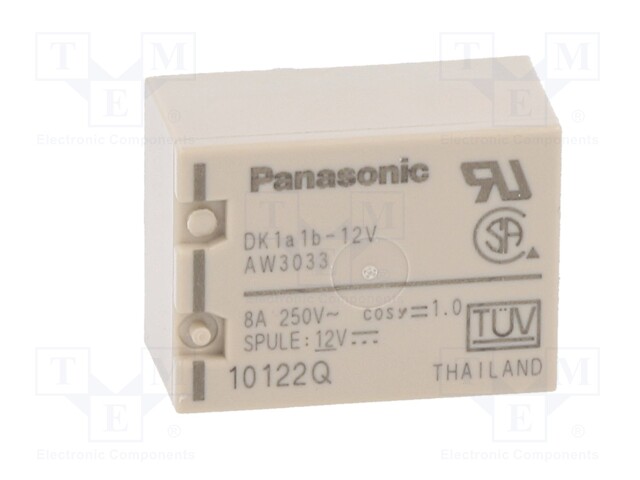

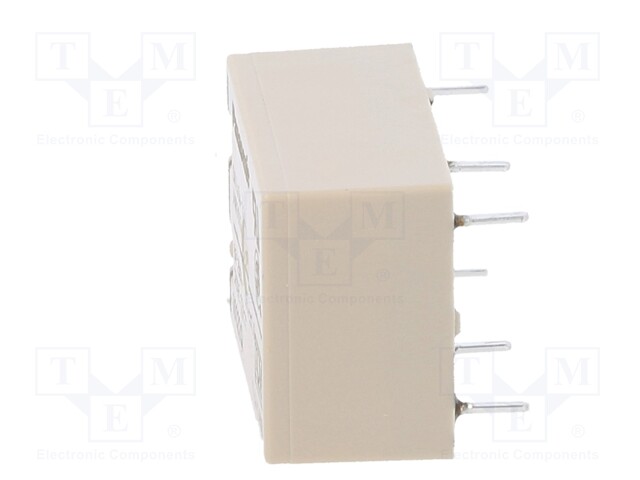

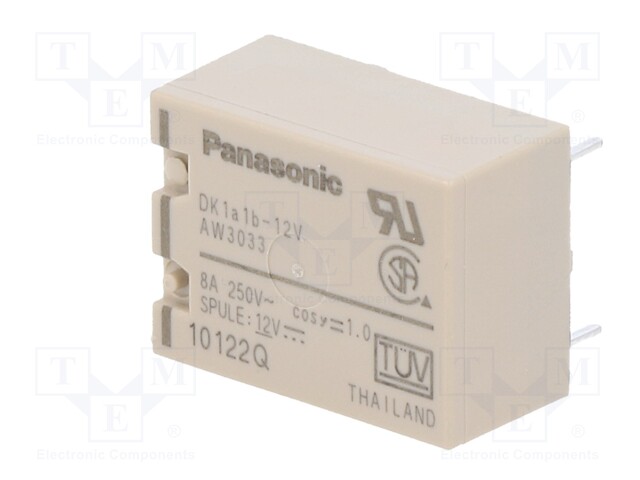

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 8A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DK1A1B-12V
    Manufacturer: PANASONIC
    Manufacturer code: DK1A1B-12V
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    13.03 € 13.03 € (wo VAT) 13.030000000000001 EUR

    13.03 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 8A/30VDC

    Mounting PCB
    Operating temperature -40...65°C
    Contact plating gold-plated
    Contact material AgNi + Au

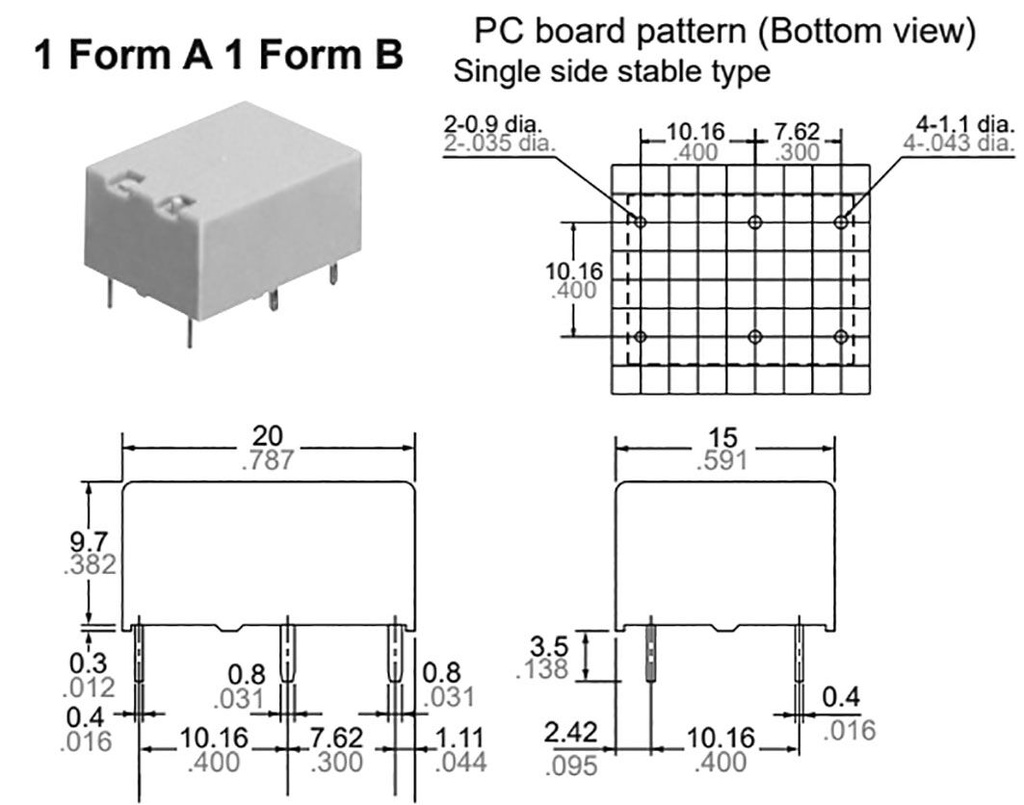

    Body dimensions 20x15x9.7mm
    Mechanical durability 50000000cycles
    Switched voltage max. 125V DC, max. 250V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC

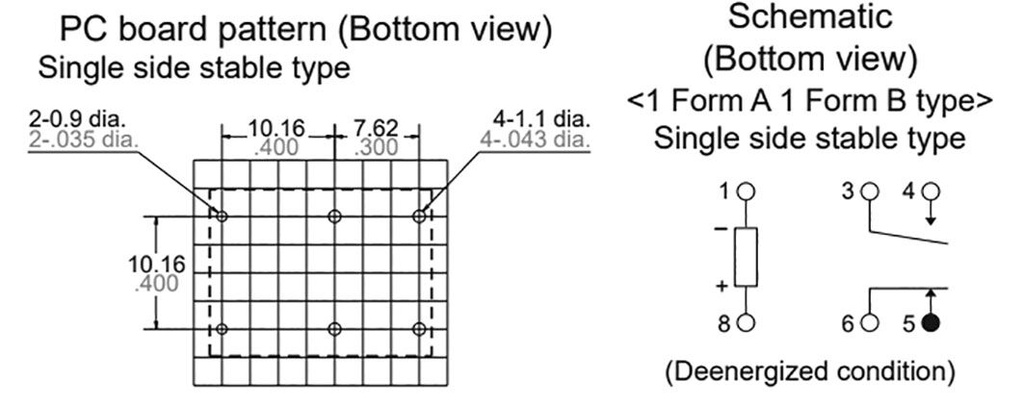

    Contacts configuration SPST-NO + SPST-NC
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 200mW
