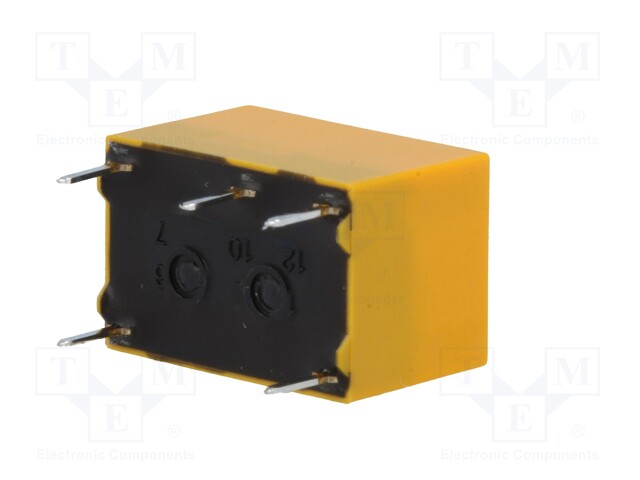

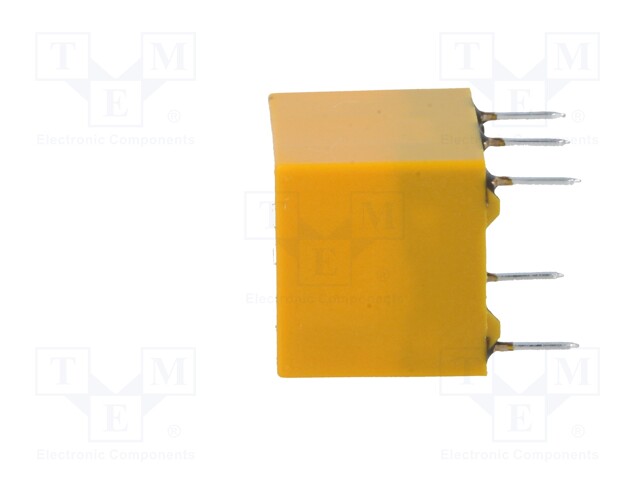

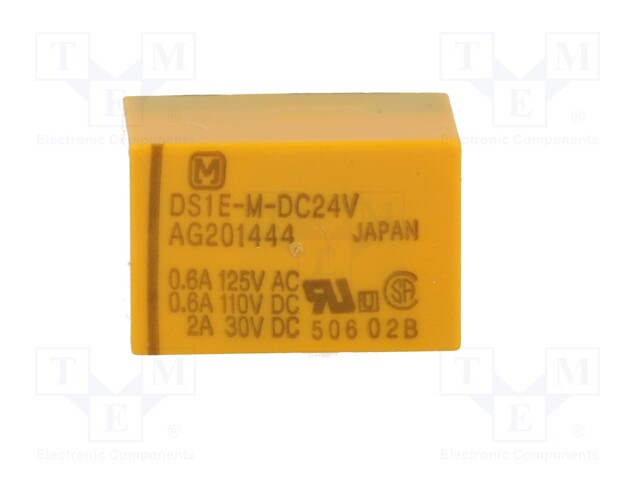

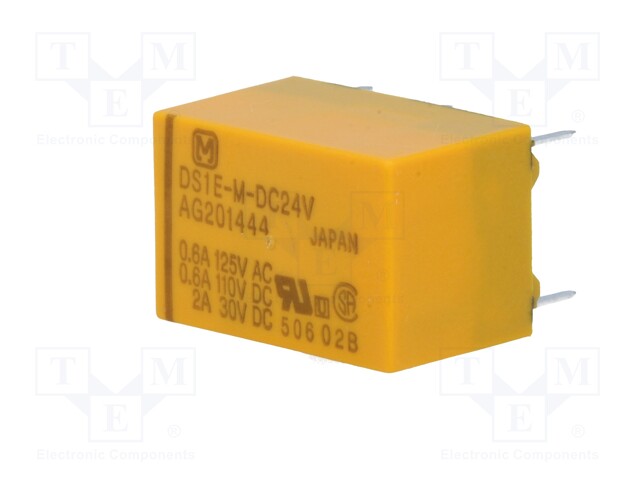

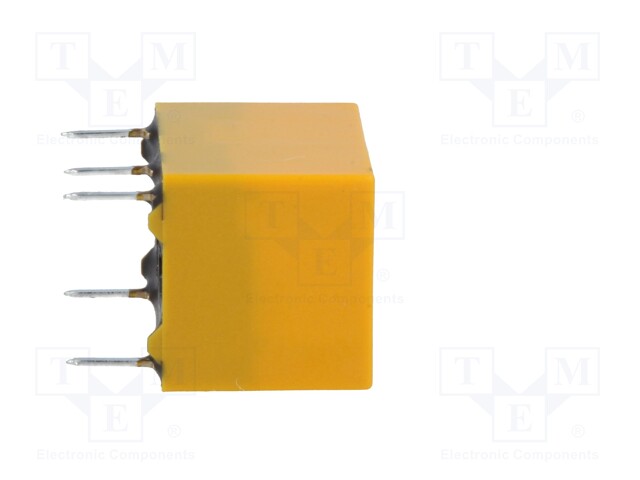

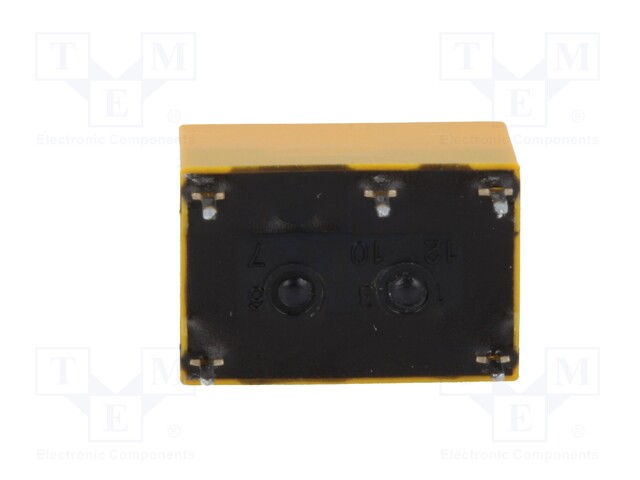

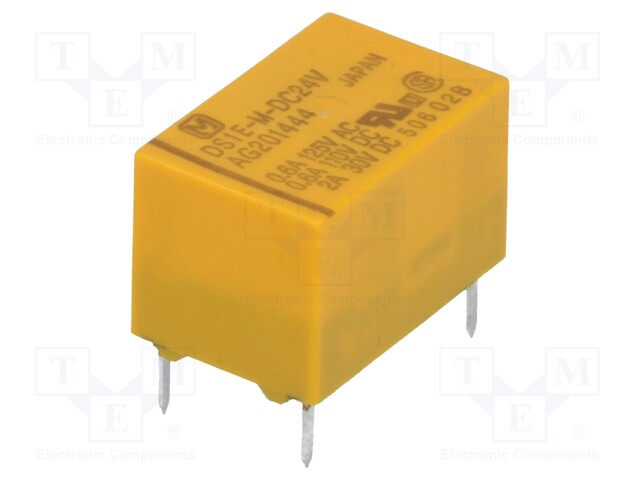

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/125VAC; 2A/30VDC; 3A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DS1E-M-DC24V
    Manufacturer: PANASONIC
    Manufacturer code: DS1E-M-DC24V
    • Mounting
    • Operating temperature
    • Contact plating
    • Series
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    13.10 € 13.10 € (wo VAT) 13.1 EUR

    13.10 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/125VAC; 2A/30VDC; 3A

    Mounting PCB
    Operating temperature -40...70°C
    Contact plating gold-plated
    Series DS
    Contact material silver

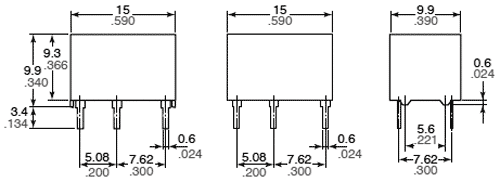

    Body dimensions 15x9.9x9.9mm
    Mechanical durability 100000000cycles
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 2A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 1A / 125V AC
    Contact current max. 3A
    Relay variant miniature
    Coil voltage max. 28.8V DC
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 400mW
