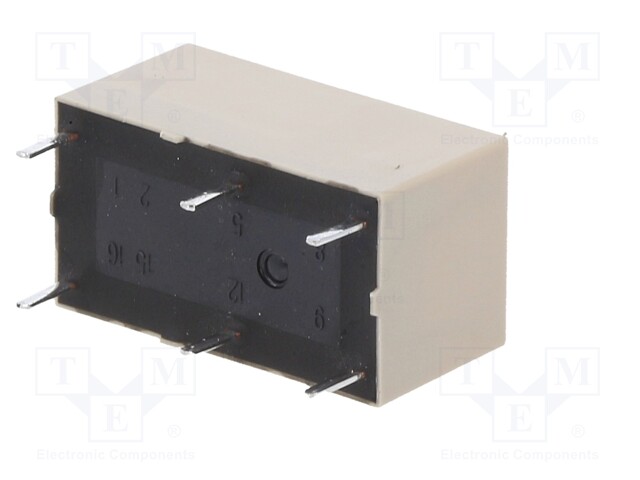

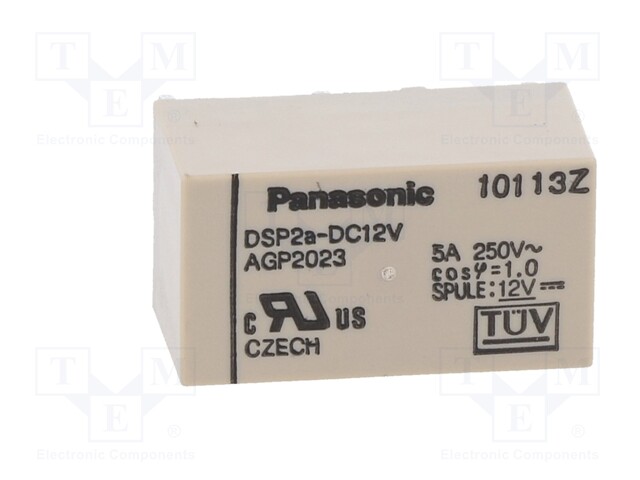

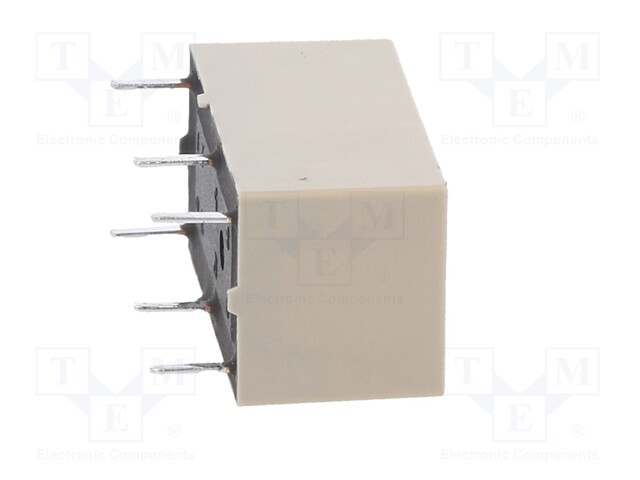

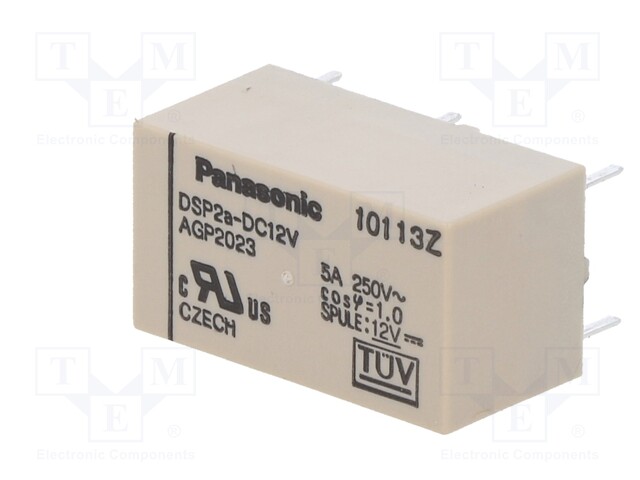

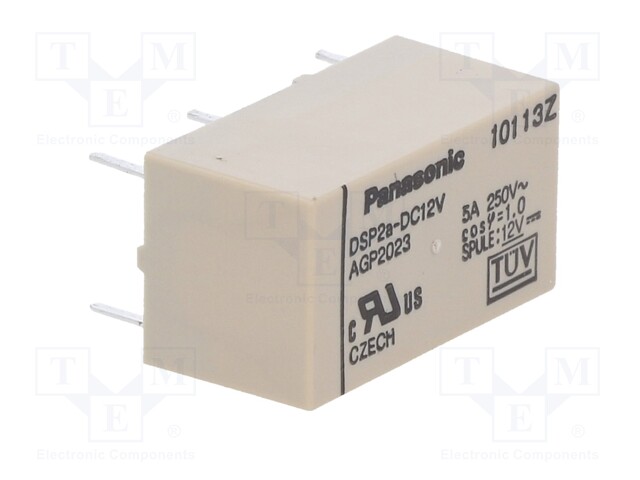

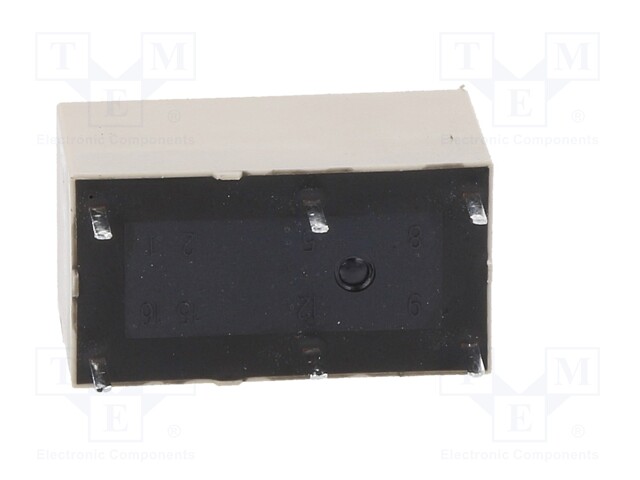

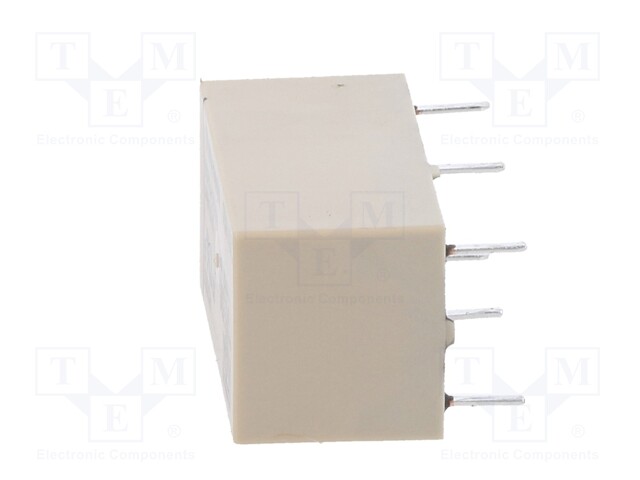

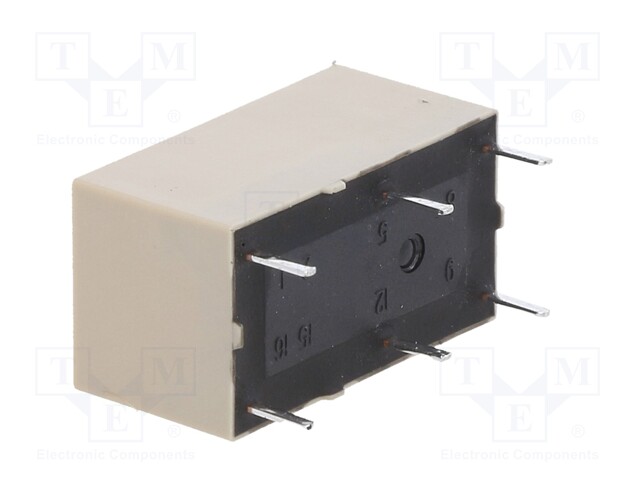

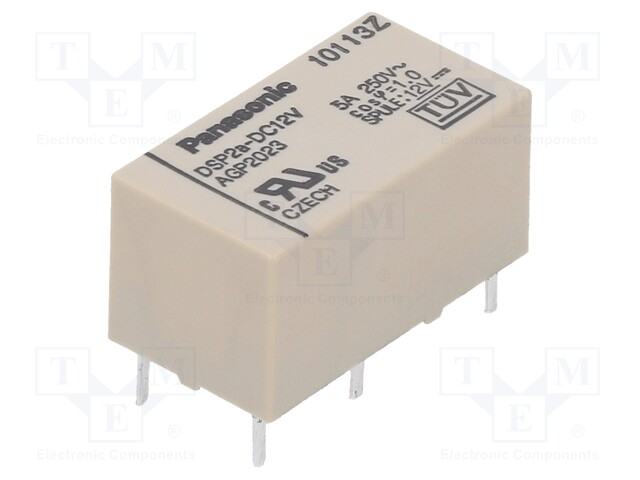

Relay: electromagnetic; DPST; Ucoil: 12VDC; 5A/250VAC; max.250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DSP2A12D
    Manufacturer: PANASONIC
    Manufacturer code: DSP2A12D
    • Mounting
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    7.50 € 7.50 € (wo VAT) 7.5 EUR

    7.50 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPST; Ucoil: 12VDC; 5A/250VAC; max.250VAC

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub> Au
    Body dimensions 20.2x11x10.5mm
    Switched voltage max. 250V AC
    Coil resistance 480Ω
    Rated coil voltage 12V DC
    Contacts configuration DPST
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 9.6V DC
    Coil power consumption 300mW
    Coil current 25mA
