Test needle; Operational spring compression: 4.3mm; 3A; Ø: 1.3mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: E-075 224 130 A 2800
    Manufacturer: INGUN
    Manufacturer code: E-075 224 130 A 2800
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression

    11.28 € 11.28 € (wo VAT) 11.28 EUR

    11.28 €

    This combination does not exist.

    Add to Cart

    Product downloads

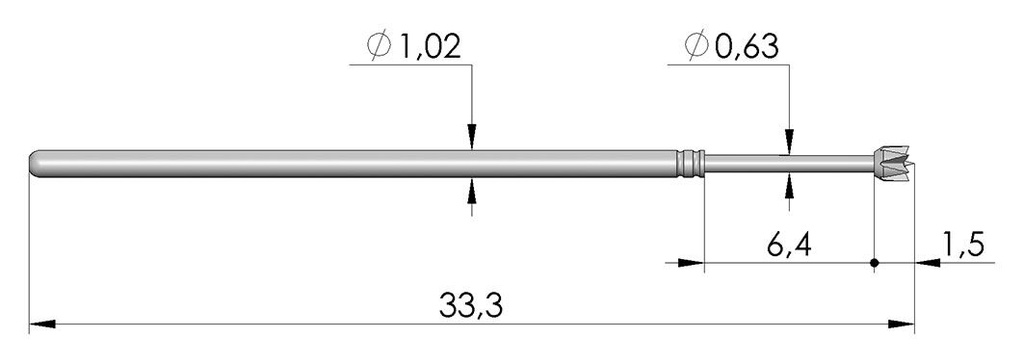

    Specification for Test needle; Operational spring compression: 4.3mm; 3A; Ø: 1.3mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material steel
    Max. contact resistance: 20mΩ
    Length 33.3mm
    Current rating 3A
    Tip diameter 1.3mm
    Type of test accessories test probe
    Maksimum spring compression 6.35mm
