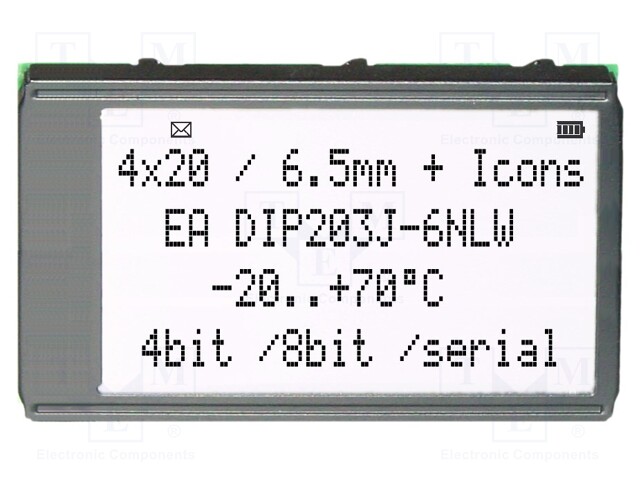

Display: LCD; alphanumeric; FSTN Positive; 20x4; black; 75x45.8mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EA DIP203J-6NLW
    Manufacturer: ELECTRONIC ASSEMBLY
    Manufacturer code: EA DIP203J-6NLW
    • Supply voltage
    • Contacts pitch
    • Interface
    • Number of pins
    • Dimensions
    • Type of pin configuration
    • Number of characters (columns x lines)
    • Kind of display
    • Display technology
    • Backgr. colour
    • Backlight colour
    • Illumination
    • Window dimensions (H x W)
    • Kind of controller
    • Type of display
    • Digit height
    • Character width
    • Supported character set
    • Supported character set
    • Supported character set

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Display: LCD; alphanumeric; FSTN Positive; 20x4; black; 75x45.8mm

    Supply voltage 3.3V DC
    Contacts pitch 2.54mm
    Interface 8bit BUS
    Number of pins 24
    Dimensions 75x45.8mm
    Type of pin configuration 2x12
    Number of characters (columns x lines) 20x4
    Kind of display alphanumeric
    Display technology FSTN Positive
    Backgr. colour black
    Backlight colour white
    Illumination LED
    Window dimensions (H x W) 61x38mm
    Kind of controller SSD1803
    Type of display LCD
    Digit height 3.745mm
    Character width 2.335mm
    Supported character set Cyrillic, Europe, Japanese
