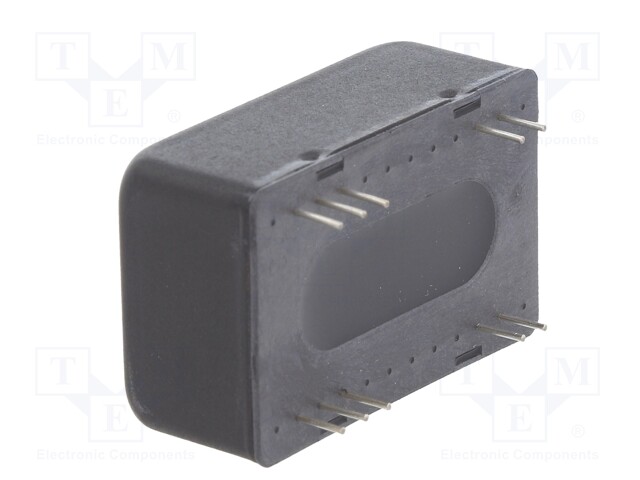

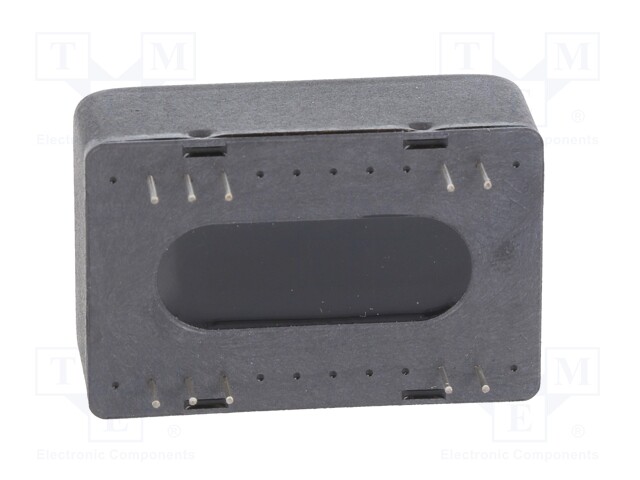

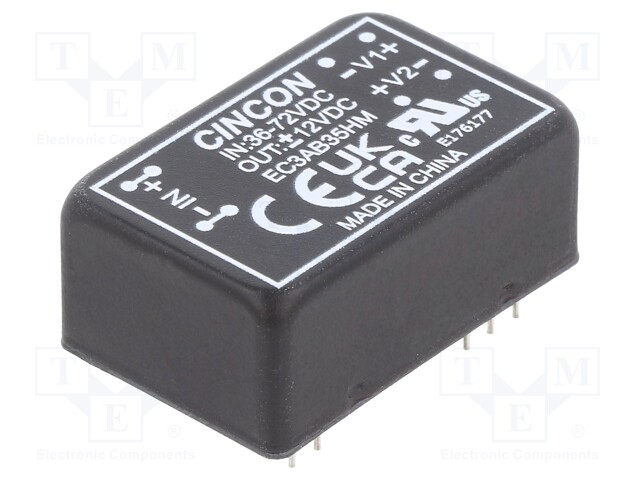

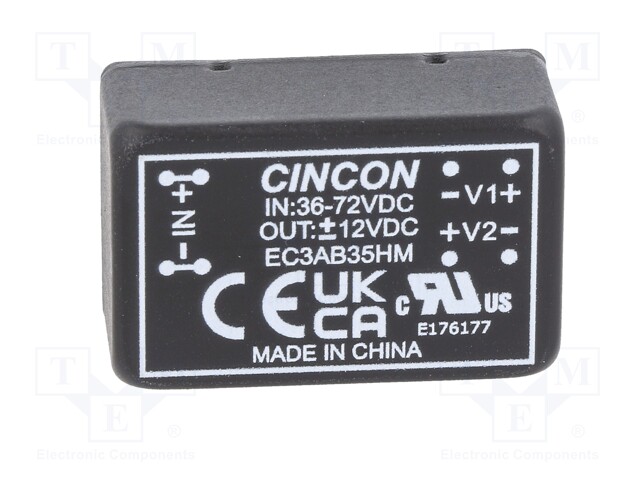

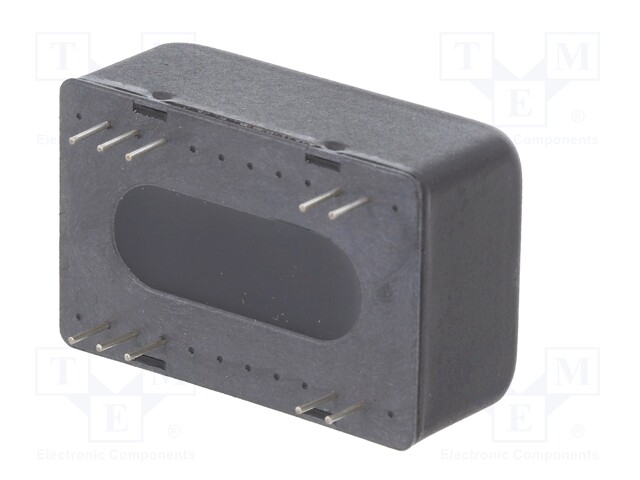

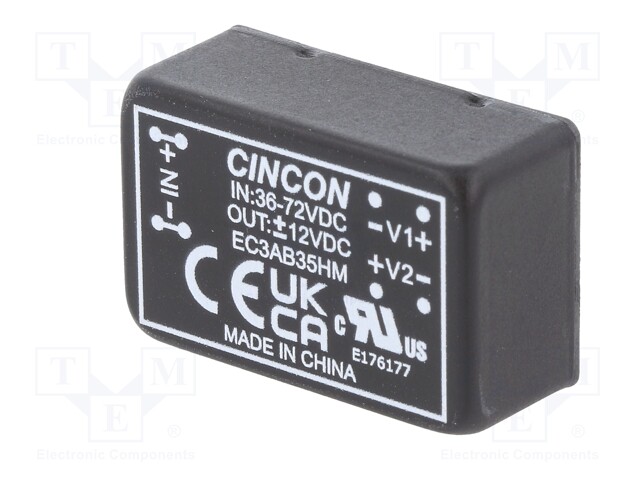

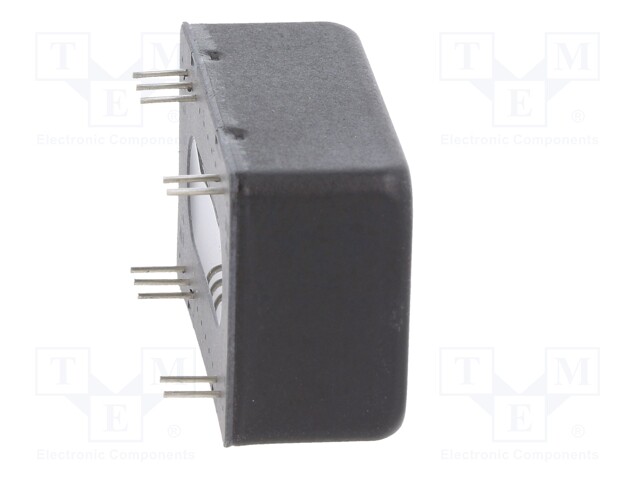

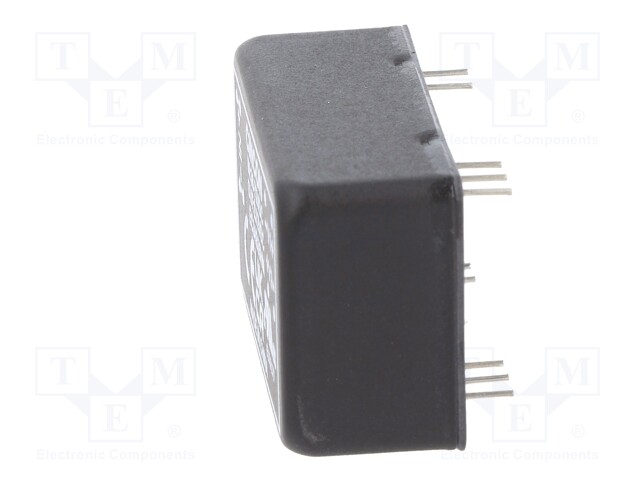

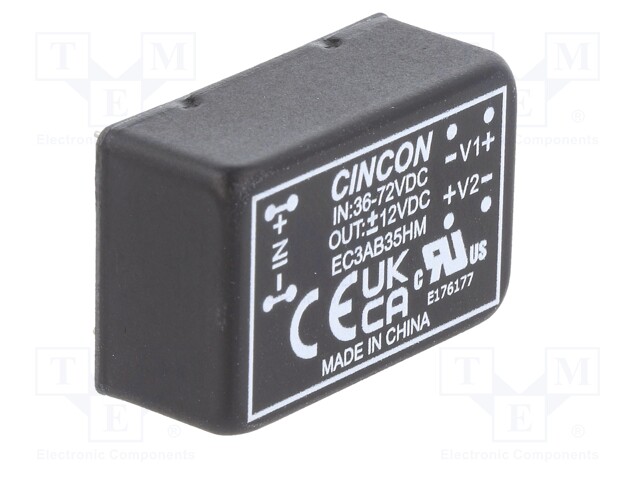

Converter: DC/DC; 3W; Uin: 36÷72V; Uout: 12VDC; Uout2: -12VDC; DIP24

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EC3AB35HM
    Manufacturer: CINCON
    Manufacturer code: EC3AB35HM
    • Output current
    • Mounting
    • Case
    • Power
    • Operating temperature
    • Protection
    • Body dimensions
    • Output voltage
    • Insulation voltage
    • Efficiency
    • Output current 2
    • Output voltage 2
    • Number of outputs
    • Switching frequency

    16.41 € 16.41 € (wo VAT) 16.41 EUR

    16.41 €

    This combination does not exist.

    Add to Cart

    Specification for Converter: DC/DC; 3W; Uin: 36÷72V; Uout: 12VDC; Uout2: -12VDC; DIP24

    Output current 125mA
    Mounting THT
    Case DIP24
    Power 3W
    Operating temperature -25...71°C
    Protection short circuit protection

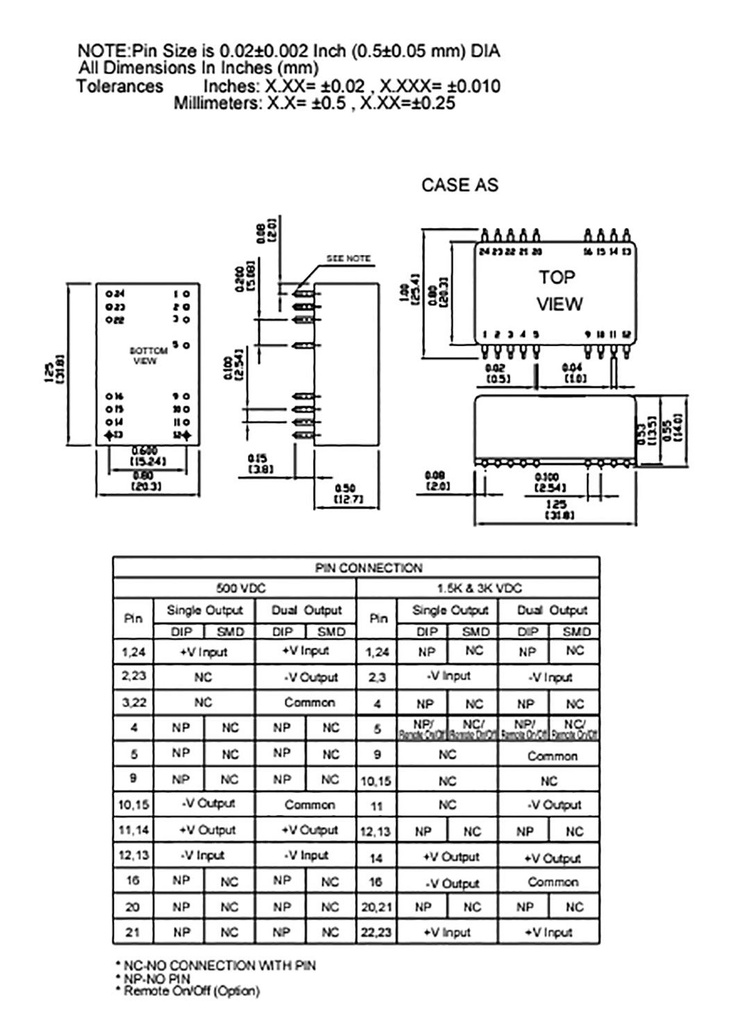

    Body dimensions 31.8x20.3x12.7mm
    Output voltage 12V DC
    Insulation voltage 1.5kV DC
    Efficiency 76%
    Output current 2 -125mA
    Output voltage 2 -12V DC
    Number of outputs 2
    Switching frequency 100kHz
