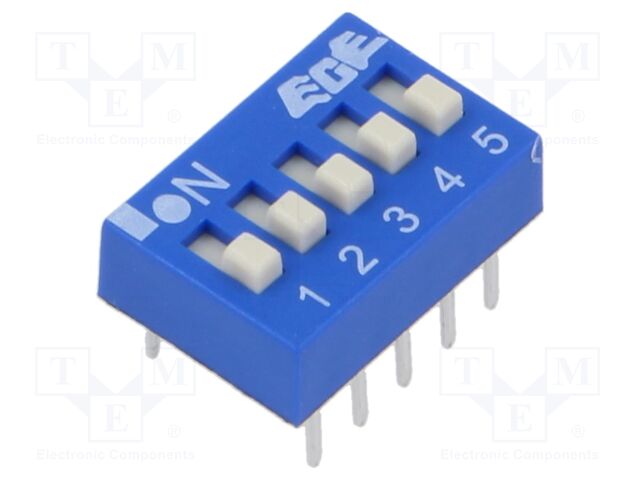

Switch: DIP-SWITCH

    Multiples: 36.0
    Minimum quantity: 1008.0
    Product code: EDG105S 33
    Manufacturer: ECE
    Manufacturer code: EDG105S 33
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Contact plating
    • Row pitch
    • Max. contact resistance:
    • Terminal pitch
    • Flammability rating
    • Body dimensions
    • Mechanical durability
    • Overall length
    • Min. insulation resistance
    • Terminals plating
    • Poles number
    • Test voltage
    • Contacts configuration
    • Switching method
    • Stable positions number

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: DIP-SWITCH

    Mounting THT
    Operating temperature -40...85°C
    Type of switch DIP-SWITCH
    Switches features raised actuator
    Contact plating gold-plated
    Row pitch 7.62mm
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Flammability rating UL94V-0
    Body dimensions 14.2x9.7x4.2mm
    Mechanical durability 2000cycles
    Overall length 14.2mm
    Min. insulation resistance 1GΩ
    Terminals plating tinned
    Poles number 5
    Test voltage 500V
    Contacts configuration SPST
    Switching method ON-OFF
    Stable positions number 2
