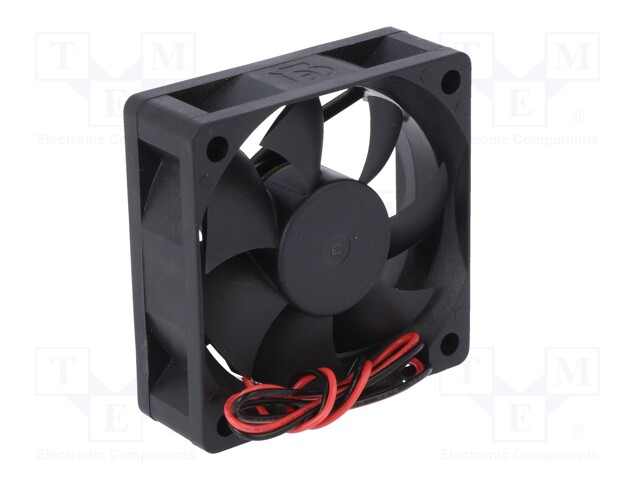

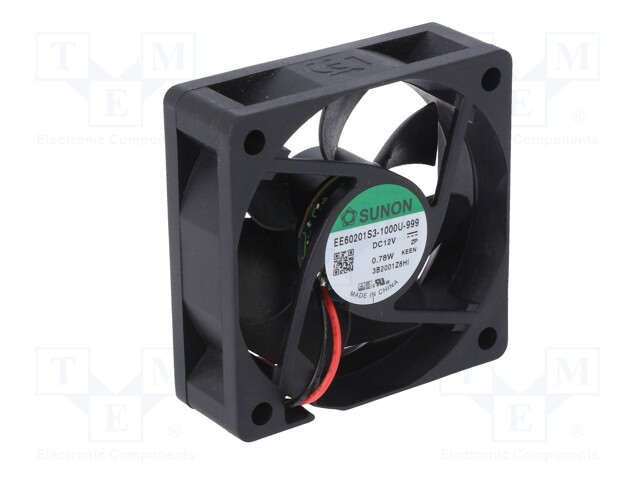

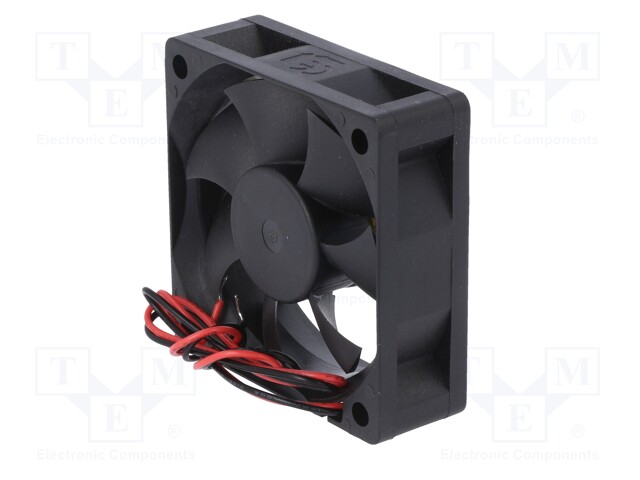

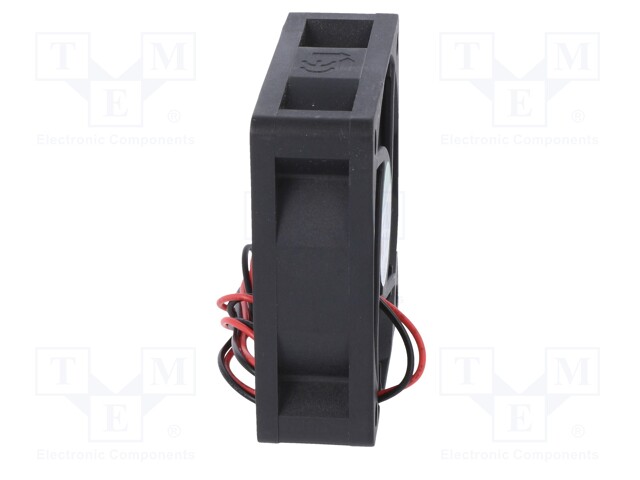

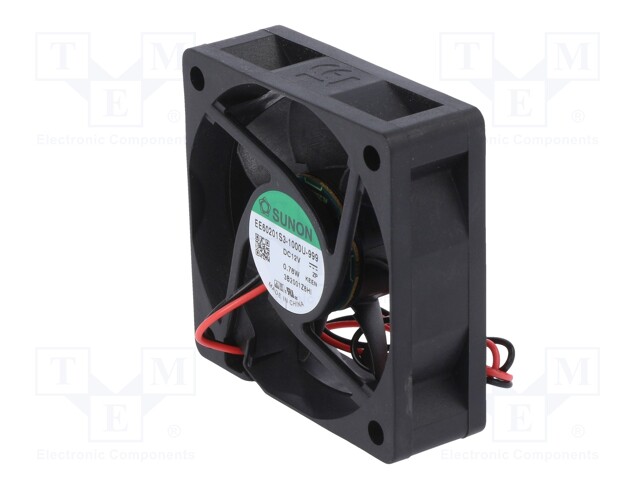

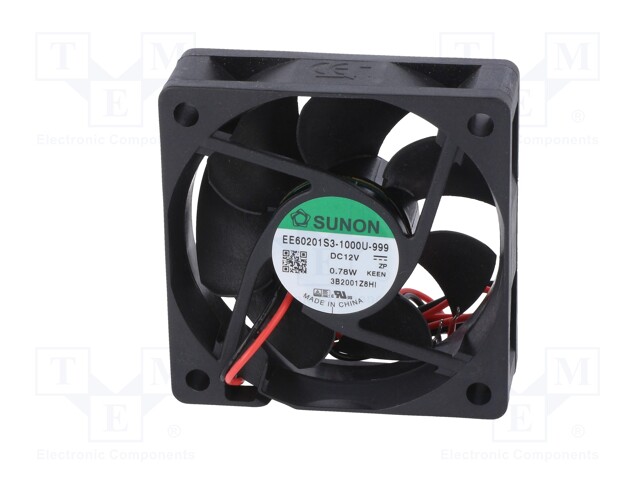

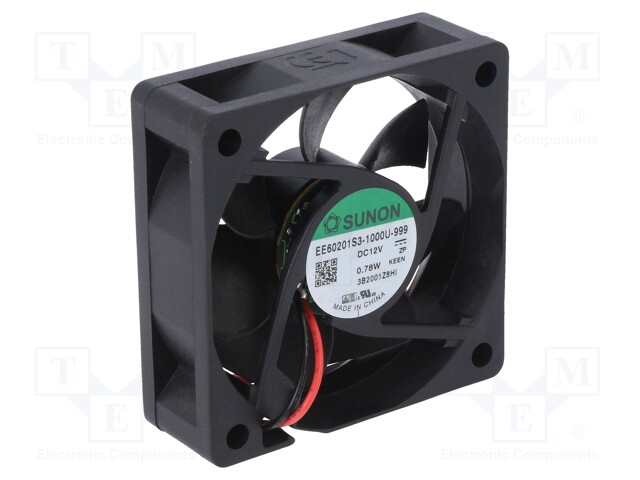

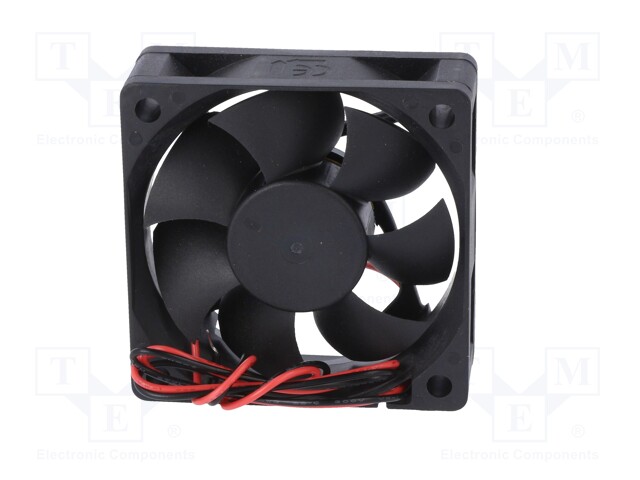

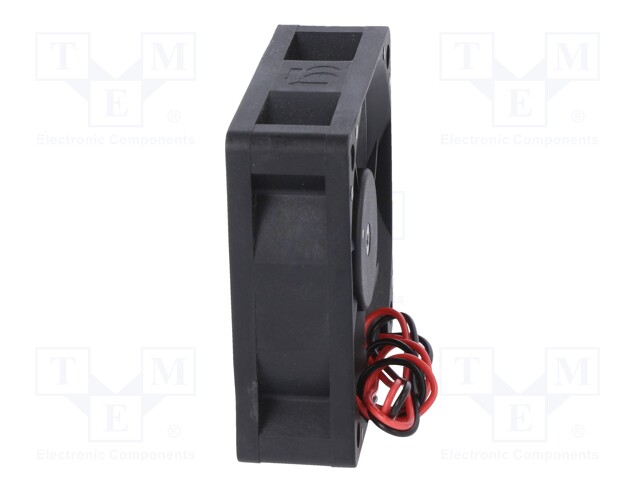

Fan: DC; axial; 12VDC; 60x60x20mm; 28.54m3/h; 22dBA; slide bearing

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EE60201S3-1000U-999
    Manufacturer: SUNON
    Manufacturer code: EE60201S3-1000U-999
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Noise level

    3.72 € 3.72 € (wo VAT) 3.72 EUR

    3.72 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 12VDC; 60x60x20mm; 28.54m3/h; 22dBA; slide bearing

    Supply voltage 12V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 58mA
    Fan efficiency 28.54m<sup>3</sup>/h
    Power consumption 700mW
    Rotational rate/speed 3200rpm
    Fan motor brushless DC motor
    Fan dimensions 60x60x20mm
    Kind of Bearing slide bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Noise level 22dBA
