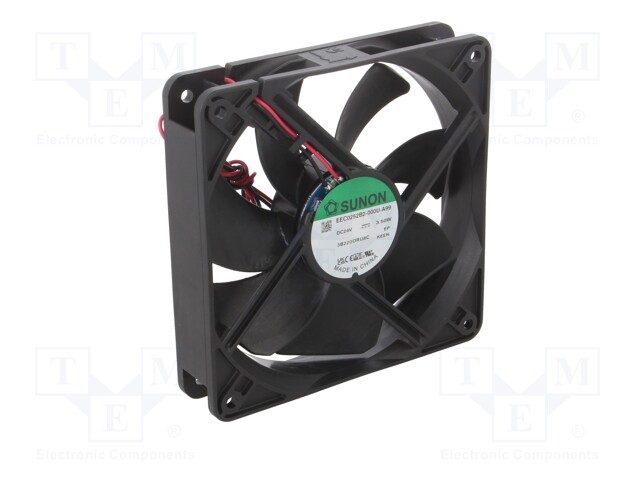

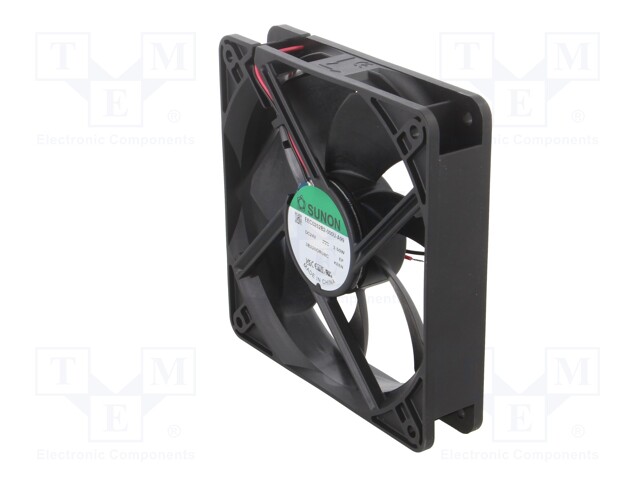

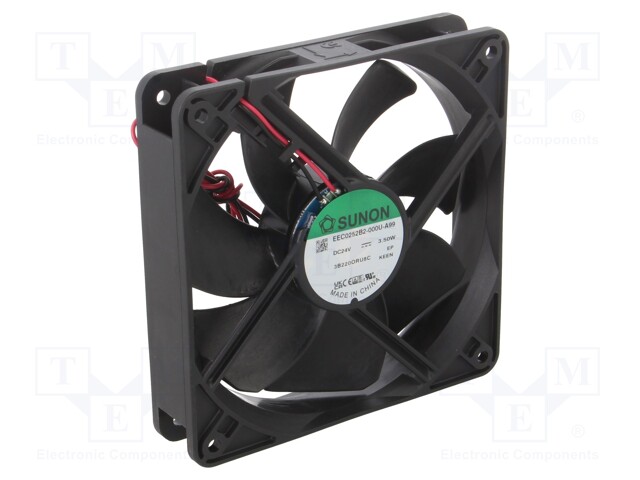

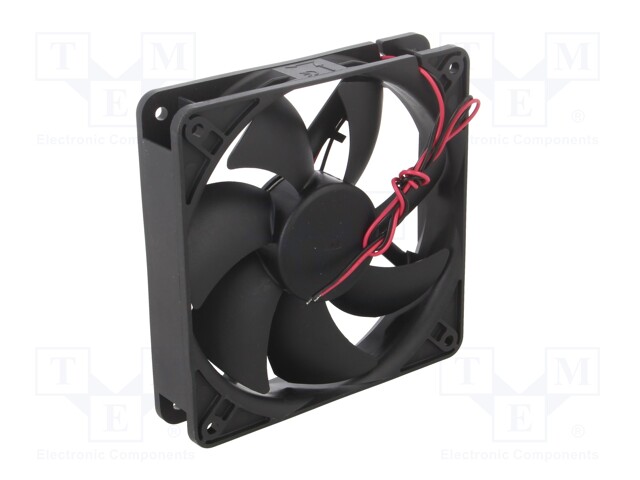

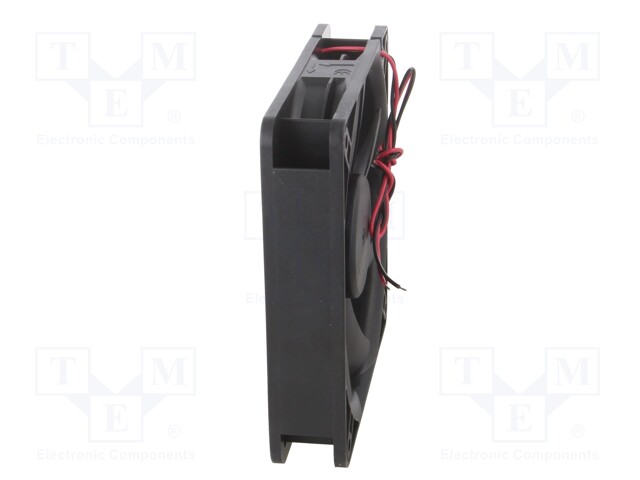

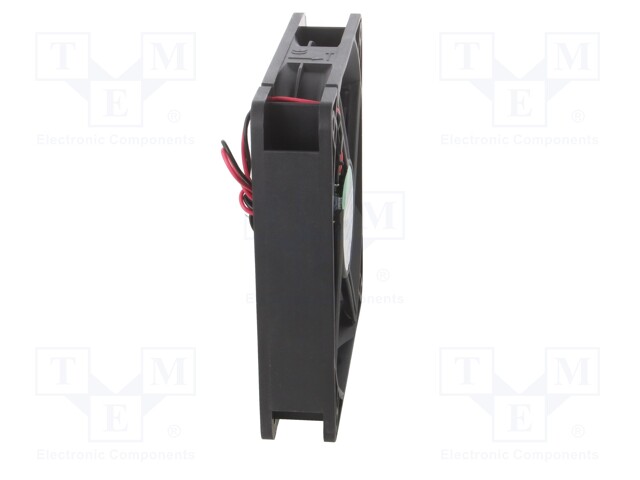

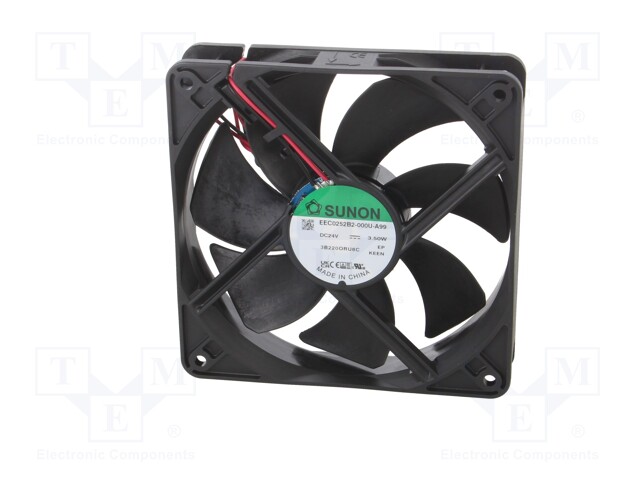

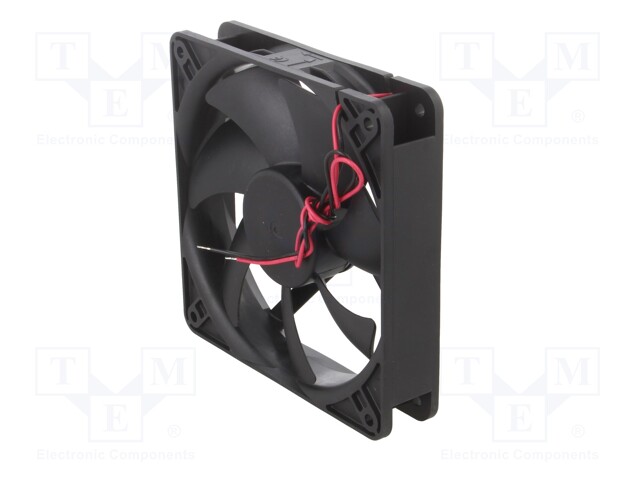

Fan: DC; axial; 24VDC; 120x120x25mm; 158m3/h; 40.5dBA; ball bearing

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EEC0252B2-000U-A99
    Manufacturer: SUNON
    Manufacturer code: EEC0252B2-000U-A99
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Noise level

    11.85 € 11.85 € (wo VAT) 11.85 EUR

    11.85 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 24VDC; 120x120x25mm; 158m3/h; 40.5dBA; ball bearing

    Supply voltage 24V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 0.146A
    Fan efficiency 158m<sup>3</sup>/h
    Power consumption 3.5W
    Rotational rate/speed 2700rpm
    Fan motor brushless DC motor
    Fan dimensions 120x120x25mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Noise level 40.5dBA
