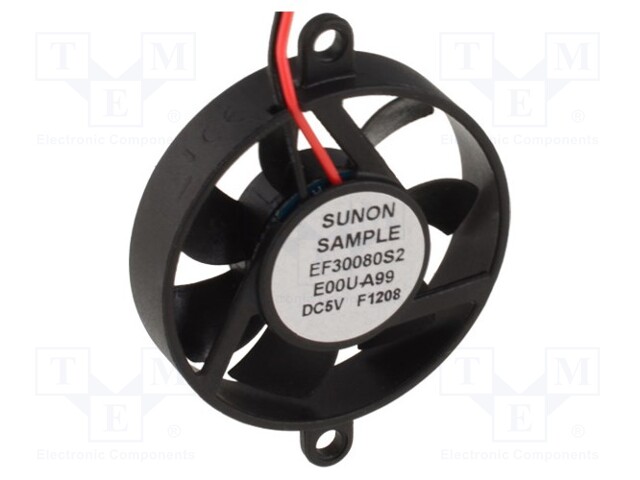

Fan: DC; axial; 5VDC; Ø30x8mm; 5.1m3/h; 17dBA; slide bearing; 28AWG

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EF30080S2-E00U-A99
    Manufacturer: SUNON
    Manufacturer code: EF30080S2-E00U-A99
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 5VDC; Ø30x8mm; 5.1m3/h; 17dBA; slide bearing; 28AWG

    Supply voltage 5V DC
    Operating voltage 3...5.5V
    Operating temperature -10...90°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 80mA
    Fan efficiency 5.1m<sup>3</sup>/h
    Power consumption 400mW
    Rotational rate/speed 7000 (±20%)rpm
    Fan motor brushless DC motor
    Fan dimensions Ø30x8mm
    Kind of Bearing slide bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Static pressure 2.031mm H<sub>2</sub>O
    Noise level 17dBA
