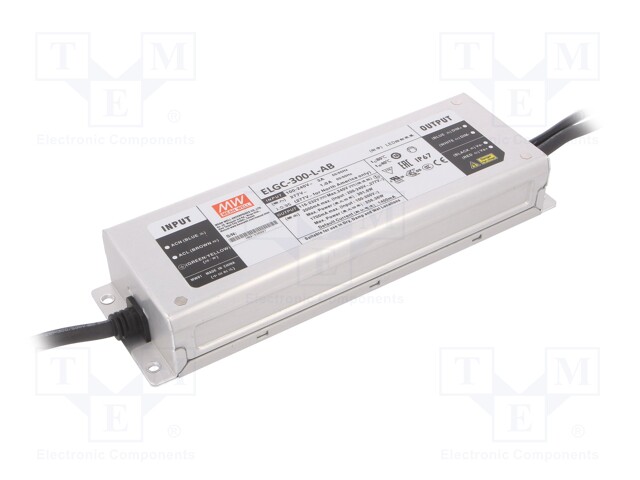

Power supply: switched-mode; LED; 300W; 116÷232VDC; 650÷2000mA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ELGC-300-L-AB
    Manufacturer: MEAN WELL
    Manufacturer code: ELGC-300-L-AB
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • IP rating
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Application
    • Body dimensions
    • Output voltage
    • Additional functions
    • Additional functions
    • Additional functions
    • Additional functions
    • Additional functions
    • Operating modes
    • Efficiency
    • Number of outputs
    • Electrical connection

    85.12 € 85.12 € (wo VAT) 85.12 EUR

    85.12 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; LED; 300W; 116÷232VDC; 650÷2000mA

    Output current 650...2000mA
    Supply voltage 100...305V AC, 142...431V DC
    Power 300W
    Operating temperature -40...85°C
    IP rating IP67
    Protection overheating, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series ELGC-300
    Application LED

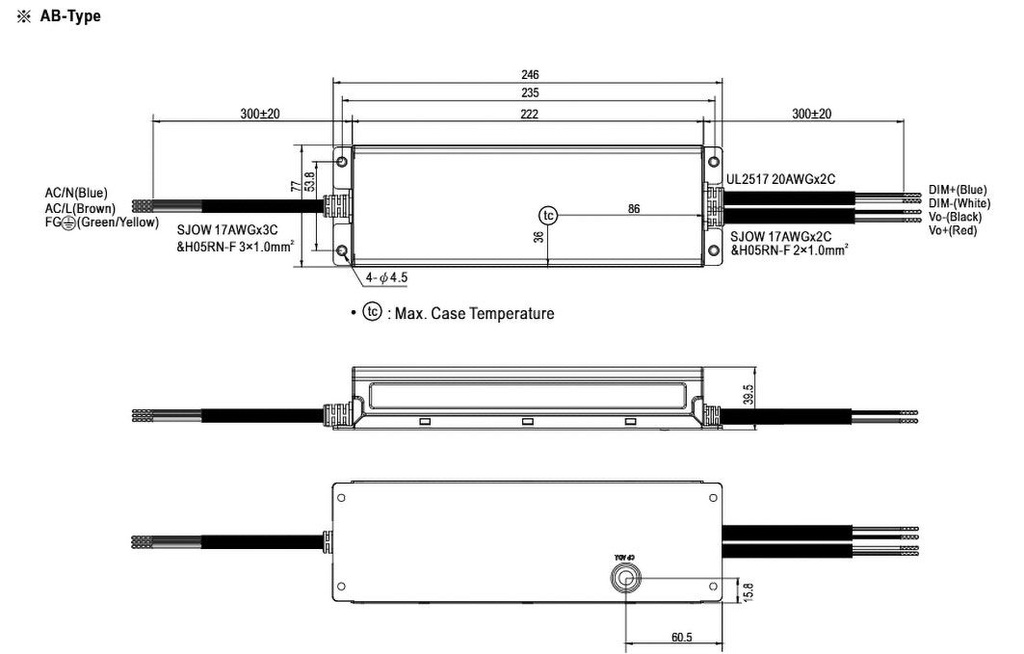

    Body dimensions 246x77x39.5mm
    Output voltage 116...232V DC
    Additional functions active PFC, adjustable output current level, dimming function 0-10V DC, PWM controlled dimming function, resistance dimming function
    Operating modes constant power
    Efficiency 94.5%
    Number of outputs 1
    Electrical connection wires
