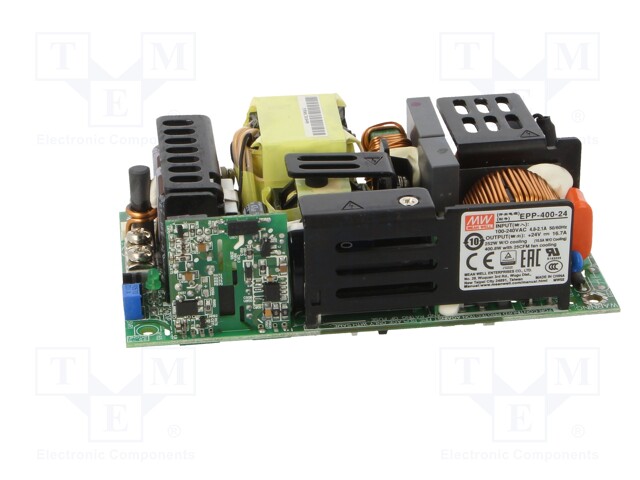

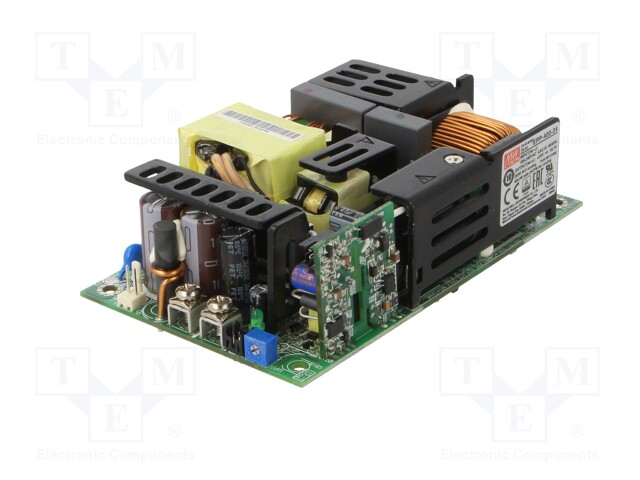

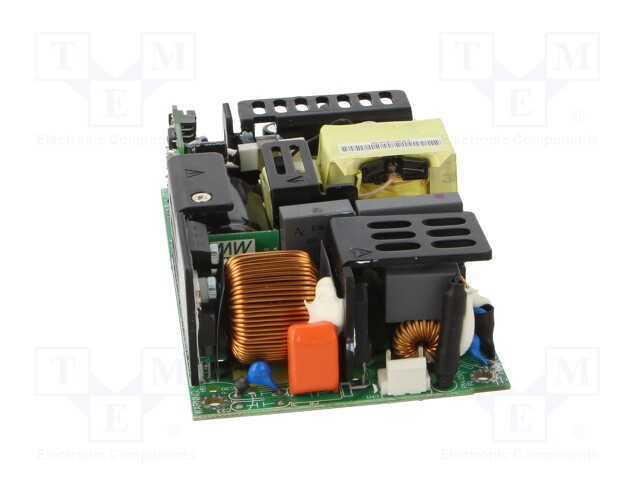

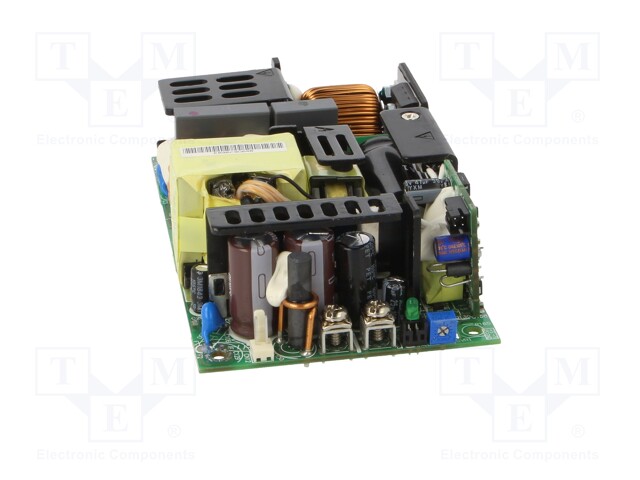

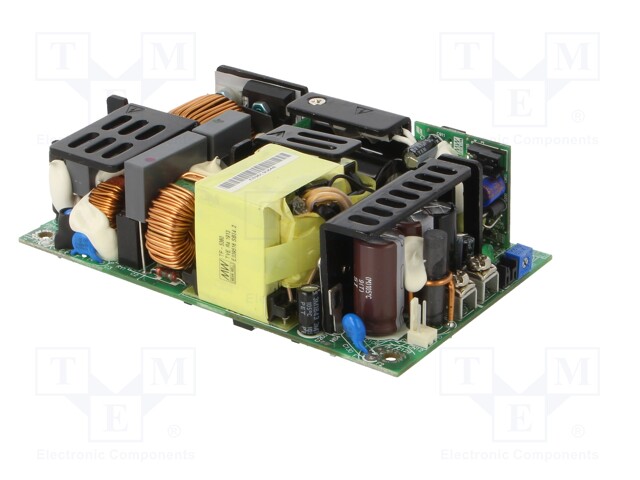

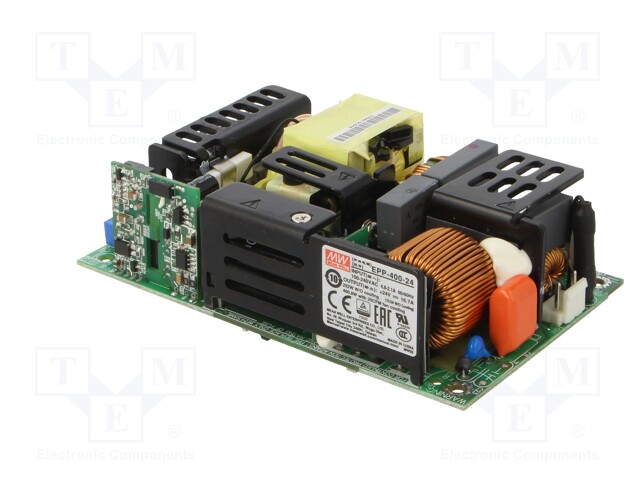

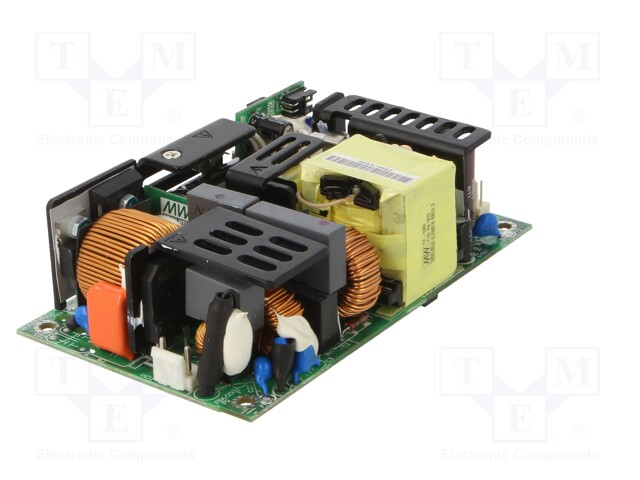

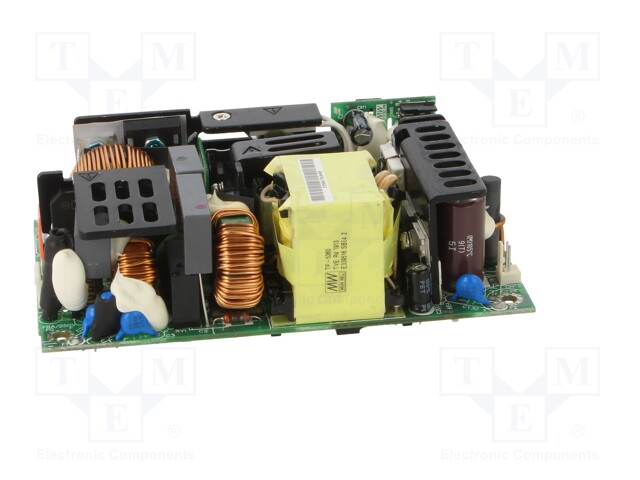

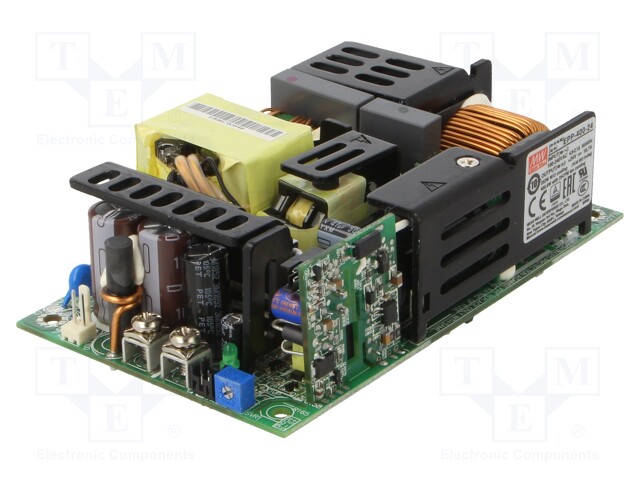

Power supply: switched-mode; 400W; 127÷370VDC; 90÷264VAC; OUT: 1

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EPP-400-24
    Manufacturer: MEAN WELL
    Manufacturer code: EPP-400-24
    • Output current
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Maximum current
    • Body dimensions
    • Output voltage
    • Additional functions
    • Additional functions
    • Additional functions
    • Efficiency
    • Number of outputs
    • Electrical connection
    • Electrical connection
    • Kind of power supply

    73.39 € 73.39 € (wo VAT) 73.39 EUR

    73.39 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; 400W; 127÷370VDC; 90÷264VAC; OUT: 1

    Output current 16.7A
    Supply voltage 90...264V AC, 127...370V DC
    Operating temperature -30...70°C
    Protection overheating, anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series EPP-400
    Maximum current 16.7A

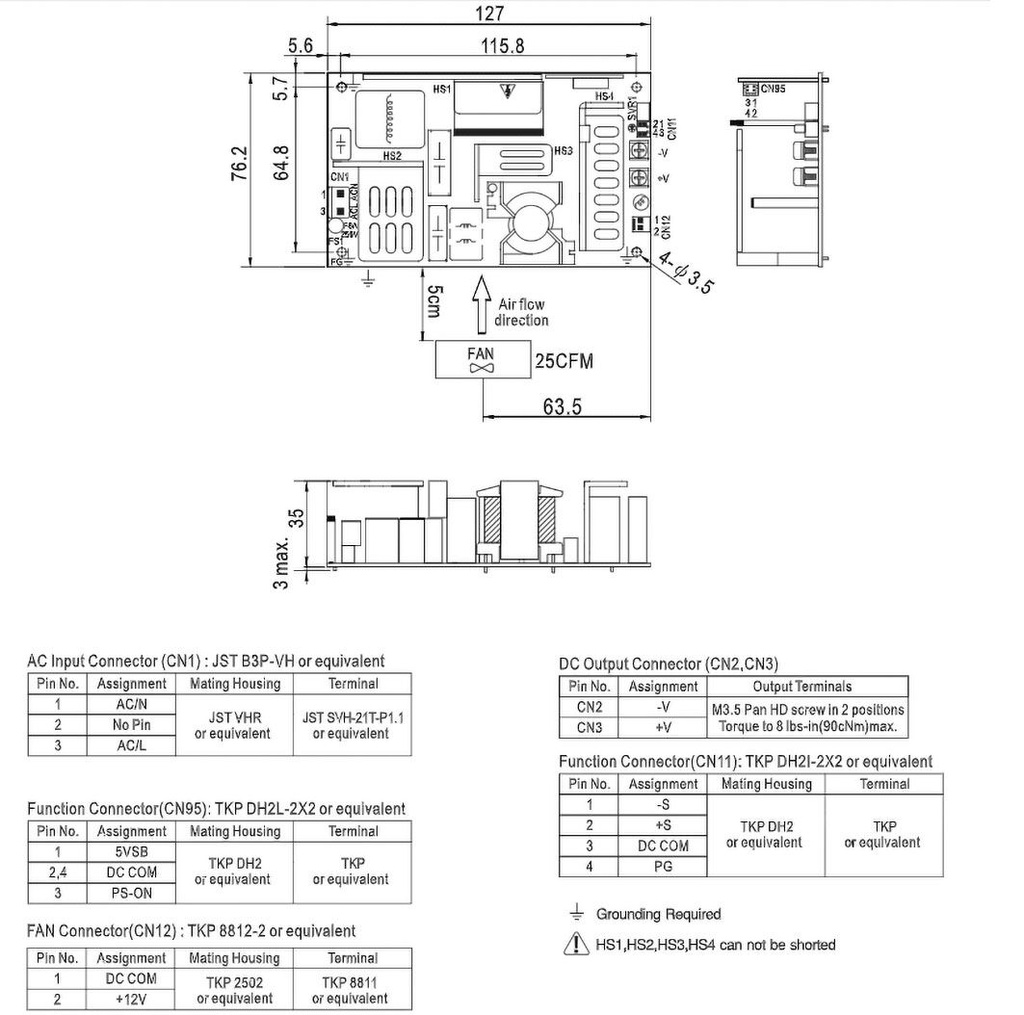

    Body dimensions 127x76.2x35mm
    Output voltage 24V DC
    Additional functions active PFC, auxiliary DC output 12V/500mA, auxiliary standby output 5V DC
    Efficiency 93%
    Number of outputs 1
    Electrical connection plug with 3,96mm pitch, screw terminals
    Kind of power supply open
