Relay: solid state; Icntrl max: 50mA; 30mA; max.1.5kVAC; 300Ω; DIP6

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EPR211AF06000EZ
    Manufacturer: ECE
    Manufacturer code: EPR211AF06000EZ
    • Mounting
    • Case
    • Max. operating current
    • Operating temperature
    • On-state resistance
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Relay variant
    • Relay variant
    • Type of relay
    • Operate time
    • Control current max.

    3.33 € 3.33 € (wo VAT) 3.33 EUR

    3.33 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: solid state; Icntrl max: 50mA; 30mA; max.1.5kVAC; 300Ω; DIP6

    Mounting THT
    Case DIP6
    Max. operating current 30mA
    Operating temperature -40...85°C
    On-state resistance 300Ω

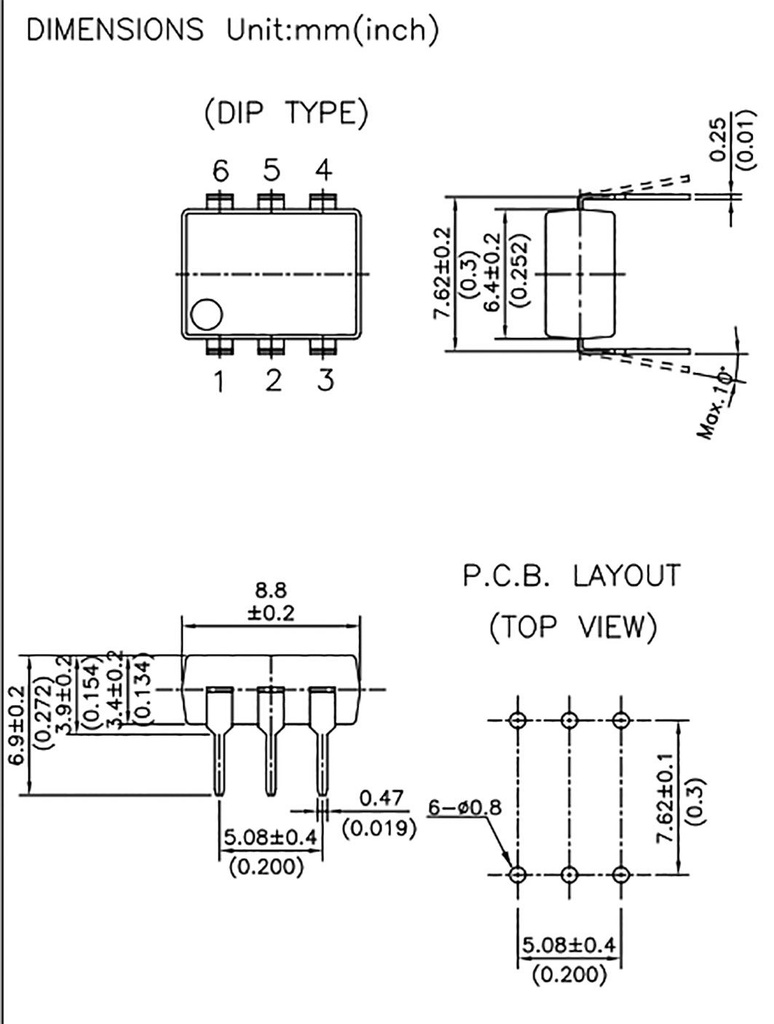

    Body dimensions 8.8x7.62x3.9mm
    Switched voltage max. 1.5kV AC, max. 1.5kV DC

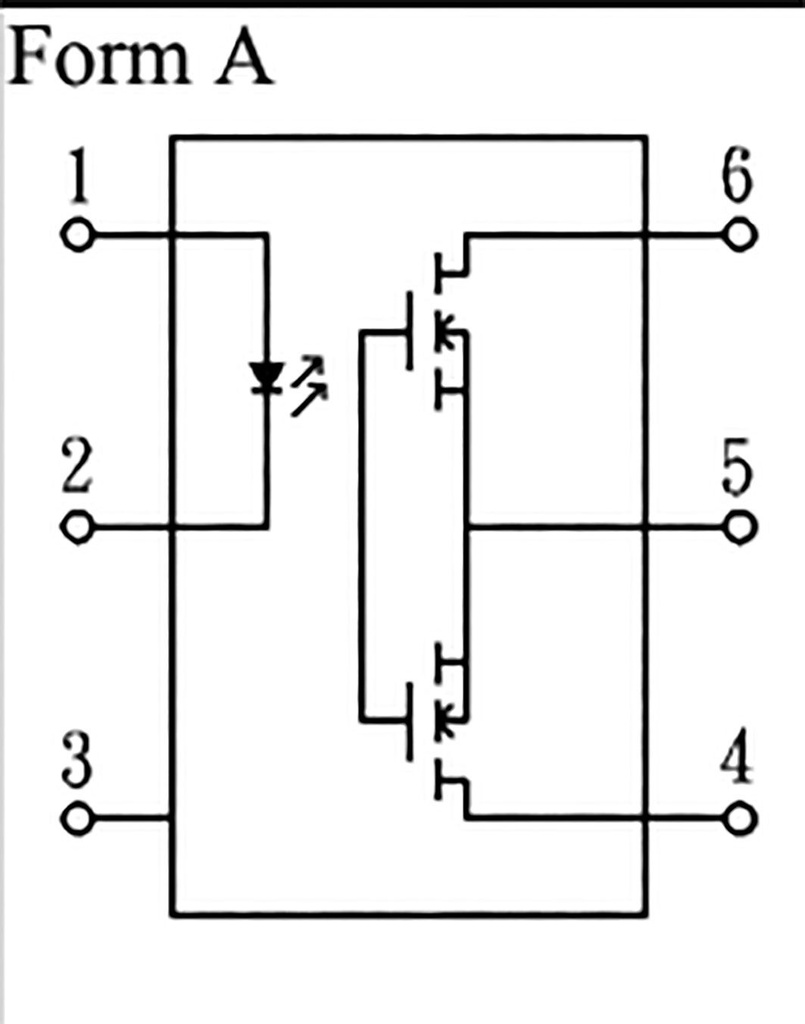

    Relay variant 1-phase, PhotoMOS
    Type of relay solid state
    Operate time 1ms
    Control current max. 50mA
