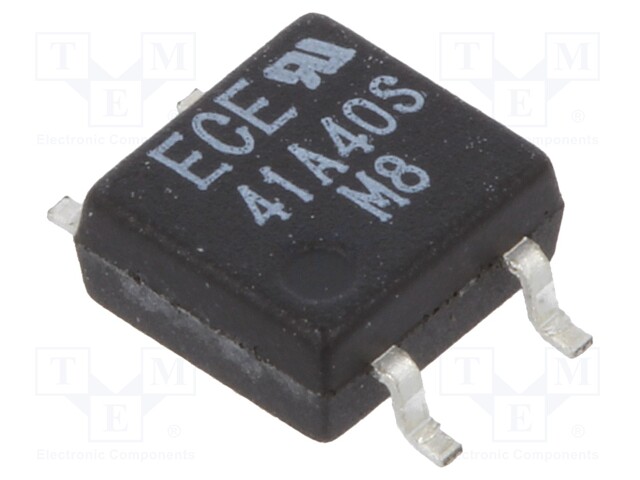

Relay: solid state; Icntrl max: 50mA; 100mA; max.400VAC; 30Ω; SOP4

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EPR411A404000EZ
    Manufacturer: ECE
    Manufacturer code: EPR411A404000EZ
    • Mounting
    • Case
    • Max. operating current
    • Operating temperature
    • On-state resistance
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Relay variant
    • Relay variant
    • Type of relay
    • Operate time
    • Control current max.

    1.88 € 1.88 € (wo VAT) 1.8800000000000001 EUR

    1.88 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: solid state; Icntrl max: 50mA; 100mA; max.400VAC; 30Ω; SOP4

    Mounting SMT
    Case SOP4
    Max. operating current 100mA
    Operating temperature -40...85°C
    On-state resistance 30Ω

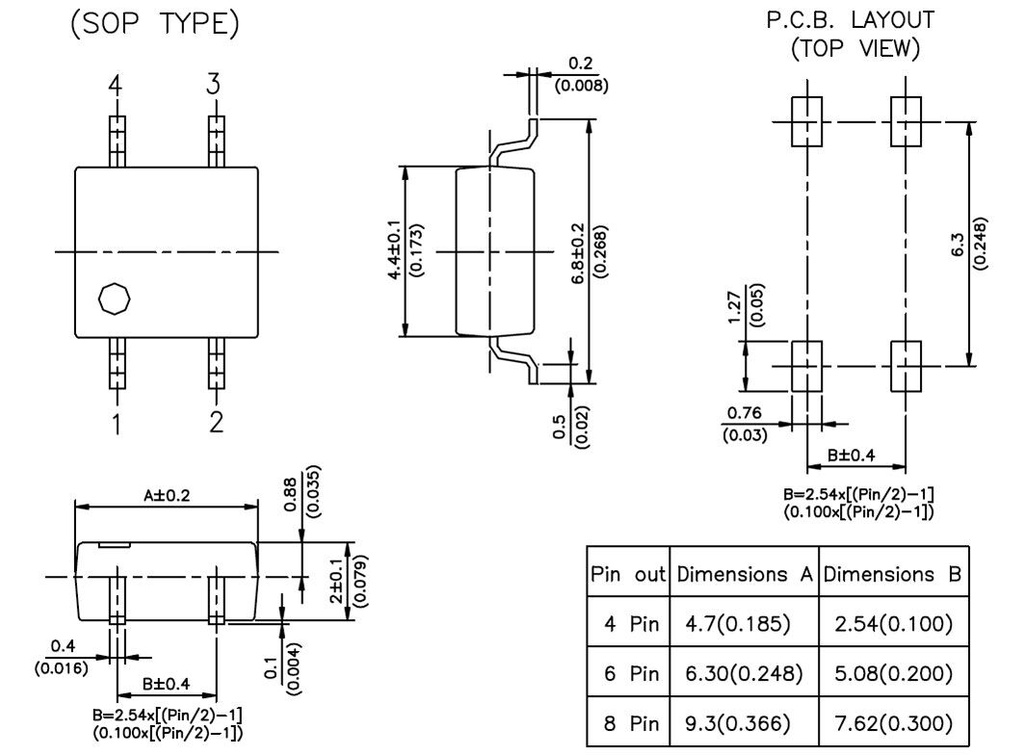

    Body dimensions 4.7x4.4x2mm
    Switched voltage max. 400V AC, max. 400V DC
    Relay variant 1-phase, PhotoMOS
    Type of relay solid state
    Operate time 1ms
    Control current max. 50mA
