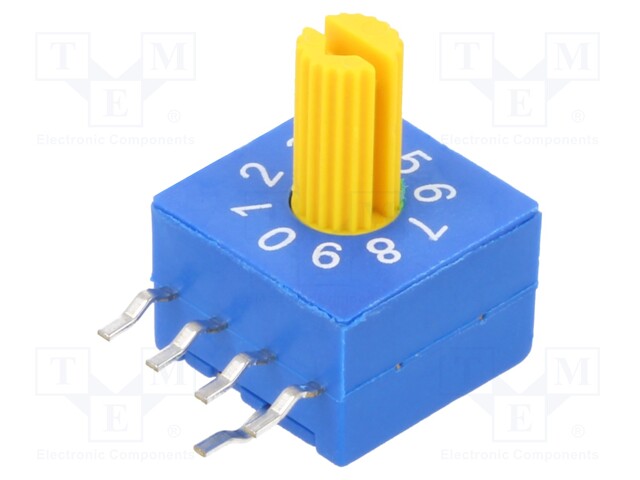

Encoding switch; Pos: 10; THT; Rcont max: 100mΩ; Rinsul min: 1000MΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ERD510RRZ
    Manufacturer: ECE
    Manufacturer code: ERD510RRZ
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Kind of package
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Terminal pitch
    • Flammability rating
    • Soldering temperature
    • Min. insulation resistance
    • Stable positions number
    • Switching torque
    • Kind of encoding switch

    2.42 € 2.42 € (wo VAT) 2.42 EUR

    2.42 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Encoding switch; Pos: 10; THT; Rcont max: 100mΩ; Rinsul min: 1000MΩ

    Mounting THT
    Operating temperature -40...85°C
    Type of switch encoding switch
    Switches features with knob
    Kind of package reel
    Contact plating gold-plated
    Number of positions 10
    Leads for PCB
    Max. contact resistance: 100mΩ
    Terminal pitch 2.54mm
    Flammability rating UL94V-0
    Soldering temperature 260°C / 5 s
    Min. insulation resistance 1GΩ
    Stable positions number 10
    Switching torque 5Ncm
    Kind of encoding switch DEC/BCD
