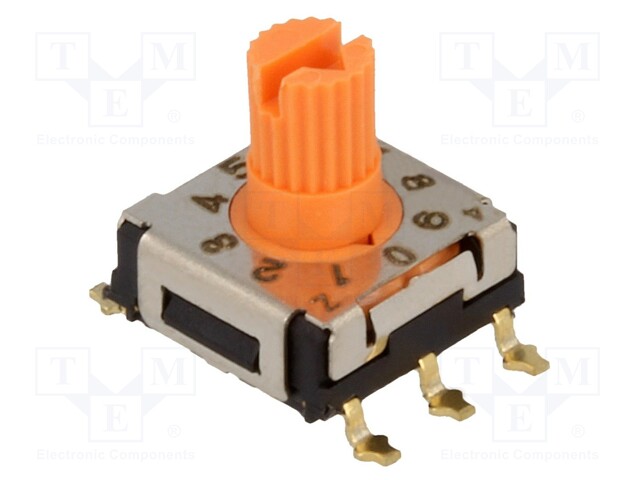

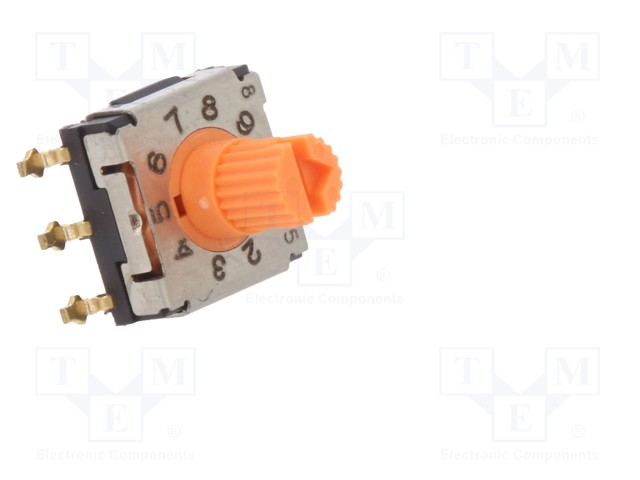

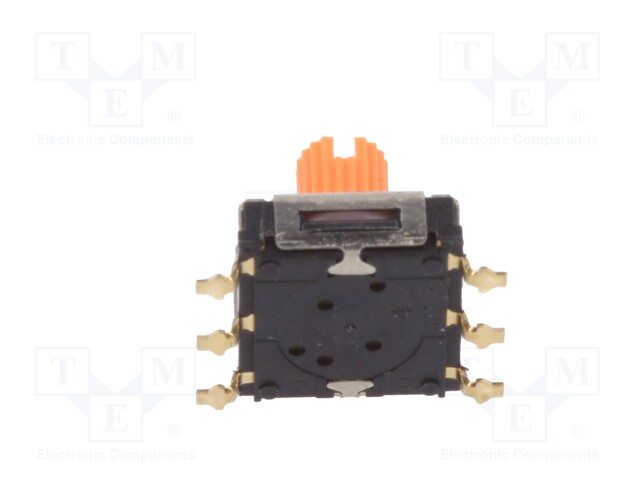

Encoding switch; DEC/BCD; Pos: 10; SMT; Rcont max: 200mΩ; 5Ncm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ERD710AMS6Z
    Manufacturer: ECE
    Manufacturer code: ERD710AMS6Z
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Flammability rating
    • Soldering temperature
    • Body dimensions
    • DC contacts rating @R
    • Stable positions number
    • Switching torque
    • Kind of encoding switch

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Encoding switch; DEC/BCD; Pos: 10; SMT; Rcont max: 200mΩ; 5Ncm

    Mounting SMT
    Operating temperature -25...70°C
    Type of switch encoding switch
    Switches features with knob
    Contact plating gold-plated
    Number of positions 10
    Leads for PCB
    Contact material copper alloy
    Max. contact resistance: 200mΩ
    Terminal pitch 1.27mm
    Flammability rating UL94V-0
    Soldering temperature 245°C / 5 s
    Body dimensions 9.8x7.2x3.6mm
    DC contacts rating @R 0.1A / 5V DC
    Stable positions number 10
    Switching torque 5Ncm
    Kind of encoding switch DEC/BCD
