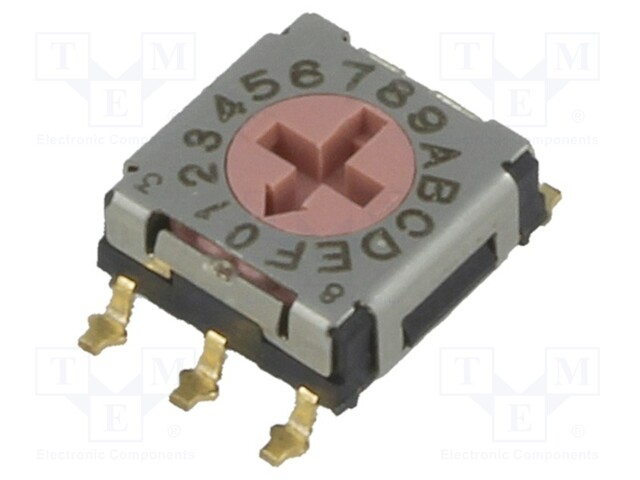

Encoding switch; HEX/BCD; Pos: 16; SMT; Rcont max: 100mΩ; 5Ncm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ERD716AM06Z
    Manufacturer: ECE
    Manufacturer code: ERD716AM06Z
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Flammability rating
    • Soldering temperature
    • Body dimensions
    • Min. insulation resistance
    • DC contacts rating @R
    • Stable positions number
    • Switching torque
    • Kind of encoding switch

    4.08 € 4.08 € (wo VAT) 4.08 EUR

    4.08 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Encoding switch; HEX/BCD; Pos: 16; SMT; Rcont max: 100mΩ; 5Ncm

    Mounting SMT
    Operating temperature -25...70°C
    Type of switch encoding switch
    Switches features without knob
    Number of positions 16
    Leads for PCB
    Contact material copper alloy
    Max. contact resistance: 100mΩ
    Terminal pitch 2.54mm
    Flammability rating UL94V-0
    Soldering temperature 260°C / 5 s

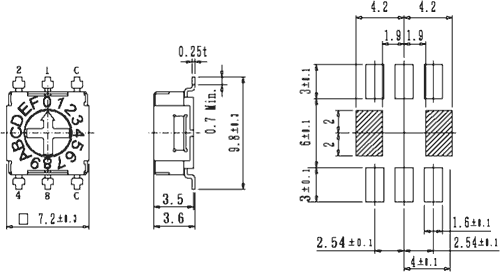

    Body dimensions 7.2x7.2x3.5mm
    Min. insulation resistance 1GΩ
    DC contacts rating @R 0.1A / 50V DC
    Stable positions number 16
    Switching torque 5Ncm
    Kind of encoding switch HEX/BCD
