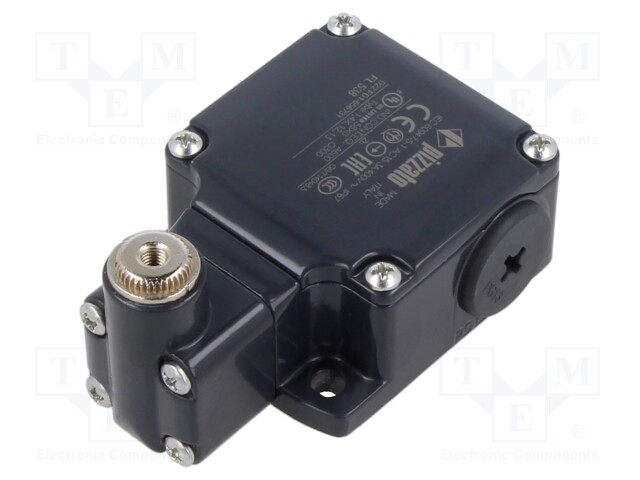

Limit switch; without lever; NO + NC; 10A; max.500VAC; max.250VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FL 538
    Manufacturer: PIZZATO ELETTRICA
    Manufacturer code: FL 538
    • Operating temperature
    • IP rating
    • Switches features
    • Body material
    • Body dimensions
    • Mounting holes pitch
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Output configuration
    • Type of sensor
    • Number of mounting holes
    • DC contacts rating @R
    • AC contacts rating @R
    • Connection
    • Contact current max.
    • Kind of actuator

    26.64 € 26.64 € (wo VAT) 26.64 EUR

    26.64 €

    This combination does not exist.

    Add to Cart

    Specification for Limit switch; without lever; NO + NC; 10A; max.500VAC; max.250VDC

    Operating temperature -25...80°C
    IP rating IP67
    Switches features snap action contacts
    Body material metal
    Body dimensions 57x56x33mm
    Mounting holes pitch 40mm
    Mechanical durability 20000000cycles
    Switched voltage max. 250V DC, max. 500V AC
    Output configuration NO + NC
    Type of sensor limit switch
    Number of mounting holes 2
    DC contacts rating @R 6A / 24V DC
    AC contacts rating @R 6A / 250V AC
    Connection PG13,5
    Contact current max. 10A
    Kind of actuator without lever
