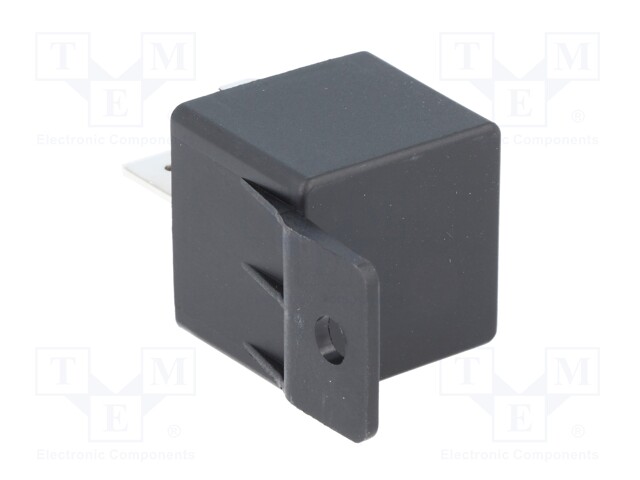

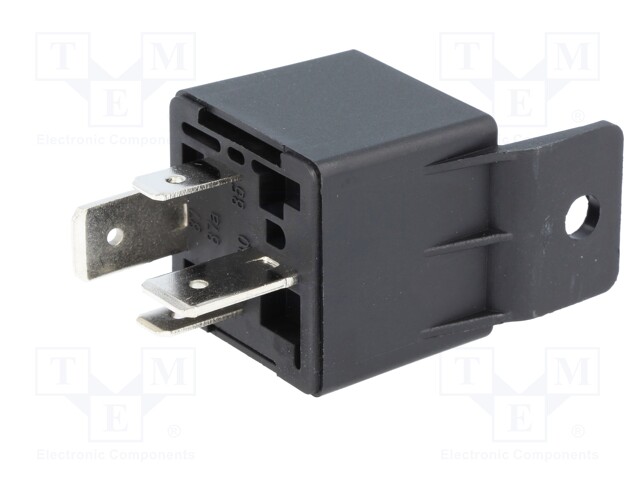

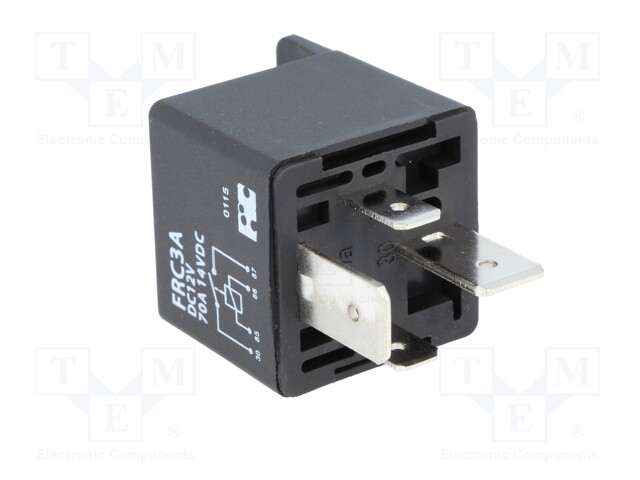

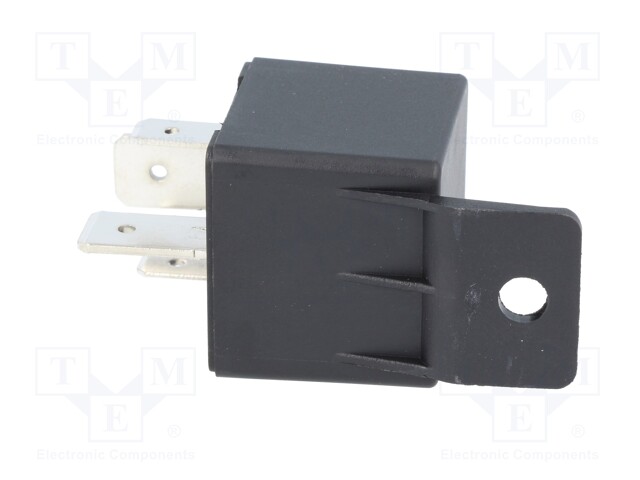

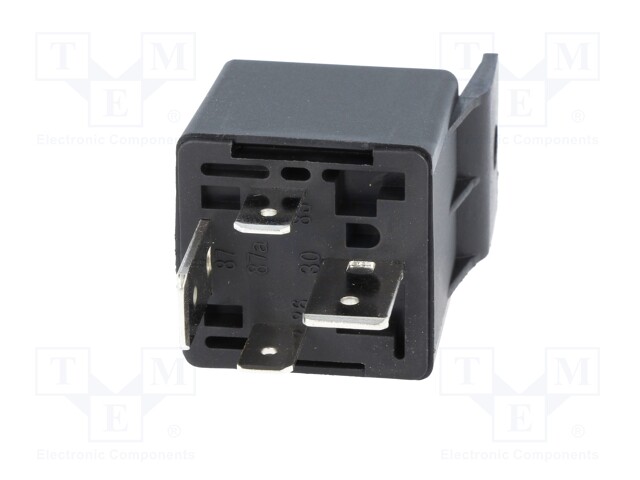

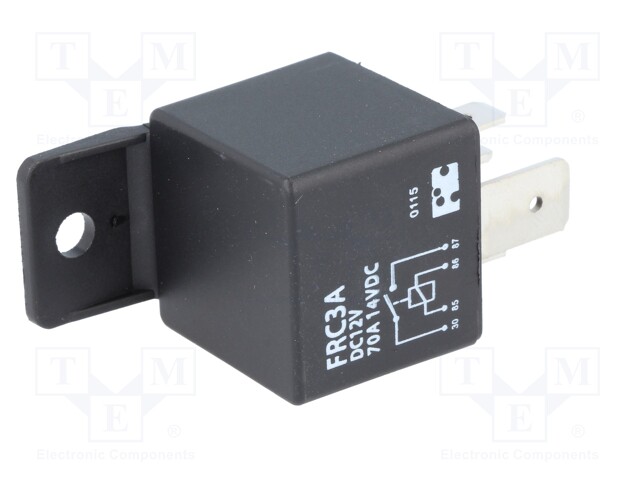

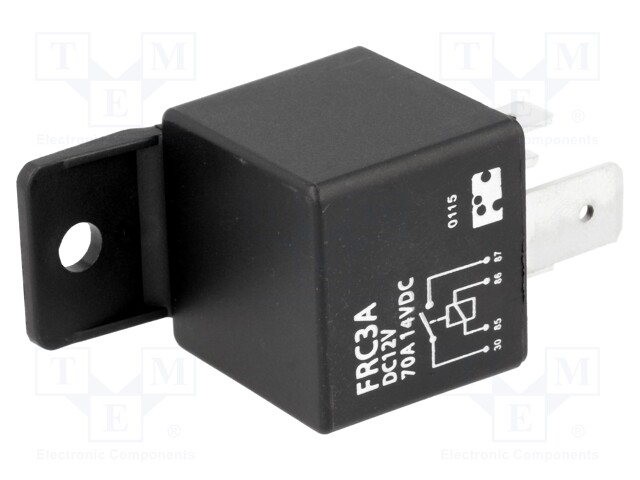

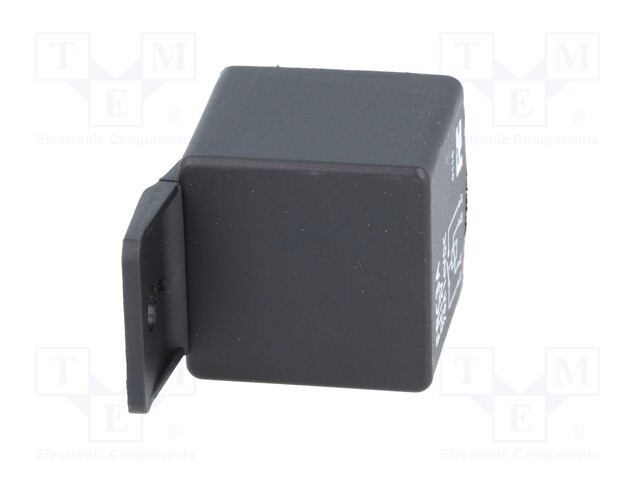

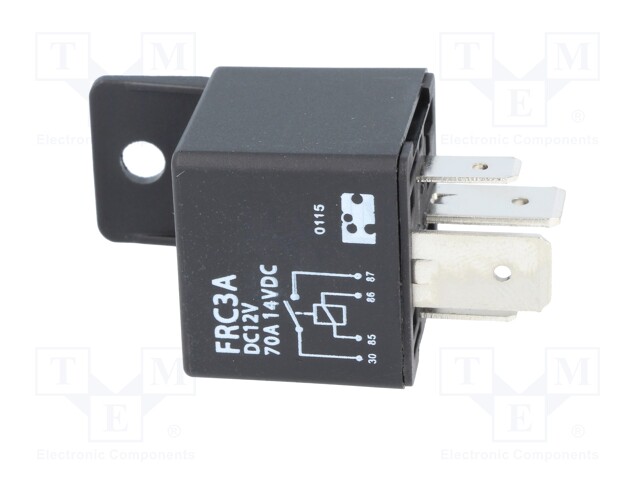

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 70A; automotive

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FRC3A-DC12
    Manufacturer: FORWARD INDUSTRIAL CO.
    Manufacturer code: FRC3A-DC12
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    3.75 € 3.75 € (wo VAT) 3.75 EUR

    3.75 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 70A; automotive

    Mounting on panel
    Operating temperature -40...85°C
    Leads connectors

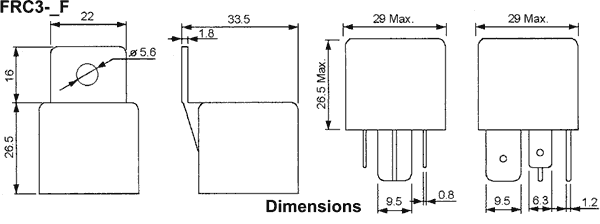

    Body dimensions 29x29x26.5mm
    Mechanical durability 10000000cycles
    Switched voltage max. 75V DC
    Electrical life 100000cycles
    Coil resistance 80Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 60A / 14V DC
    Contact resistance 30mΩ
    Contact current max. 70A
    Relay variant automotive
    Coil voltage max. 18V DC
    Type of relay electromagnetic
    Coil voltage min. 7.8V DC
    Coil power consumption 1.8W
    Operate time 10ms
    Release time 10ms
    Coil current 150mA
