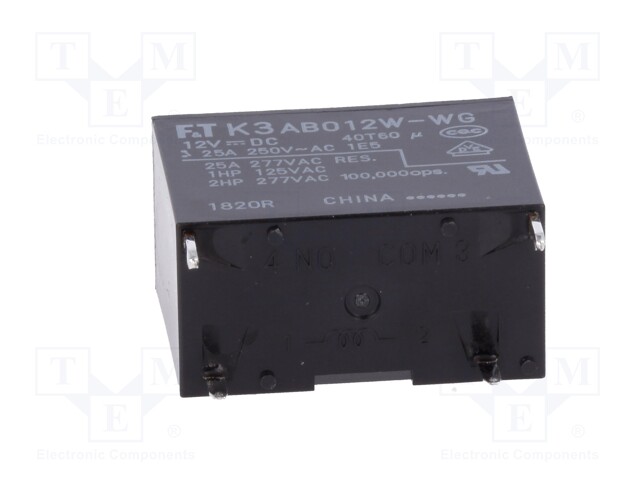

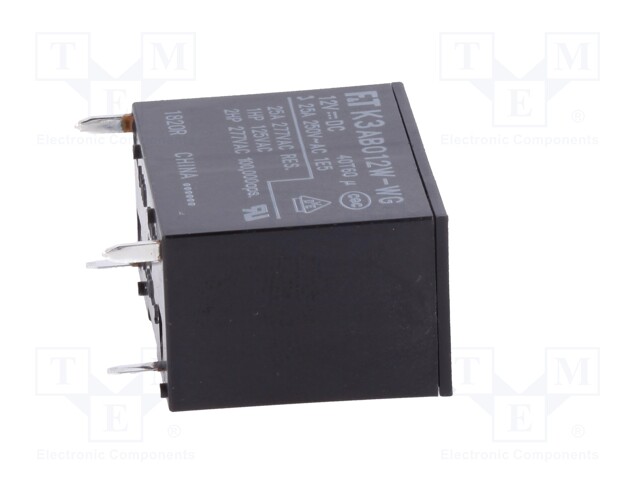

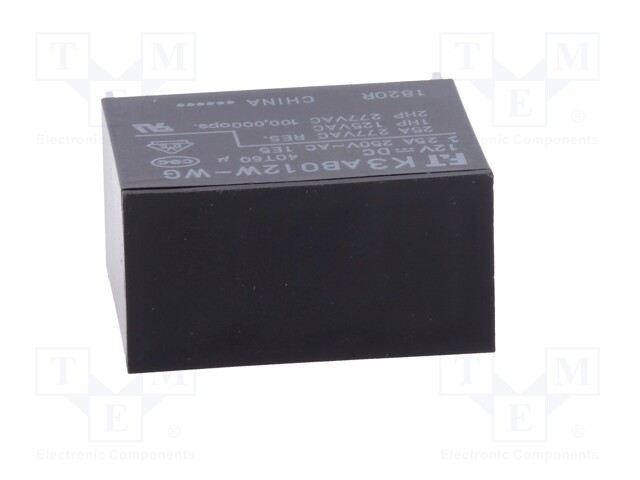

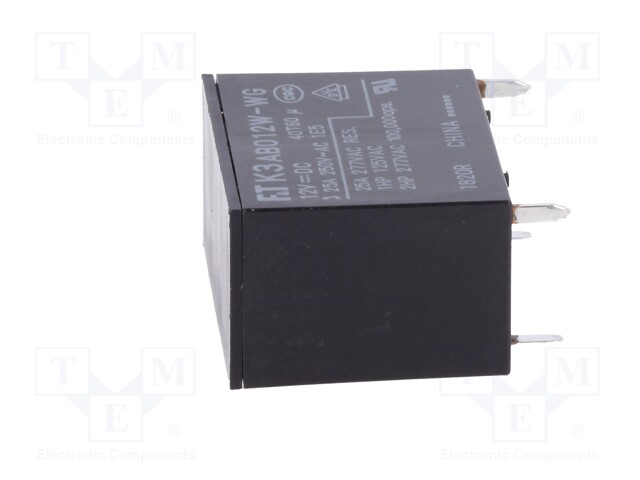

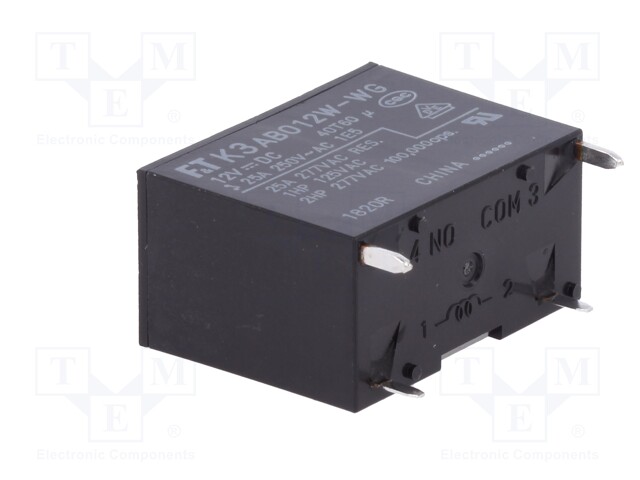

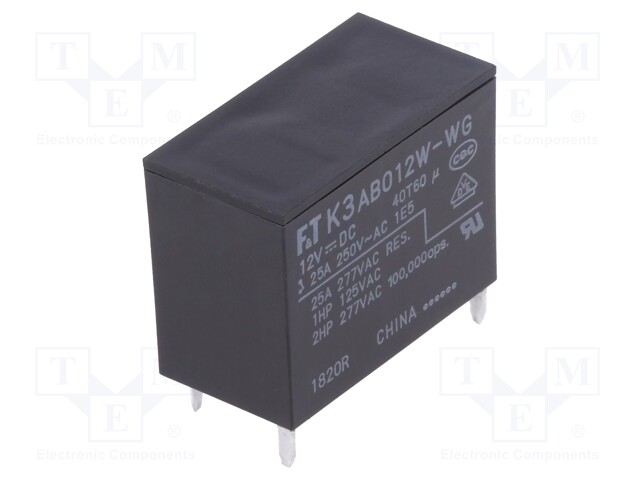

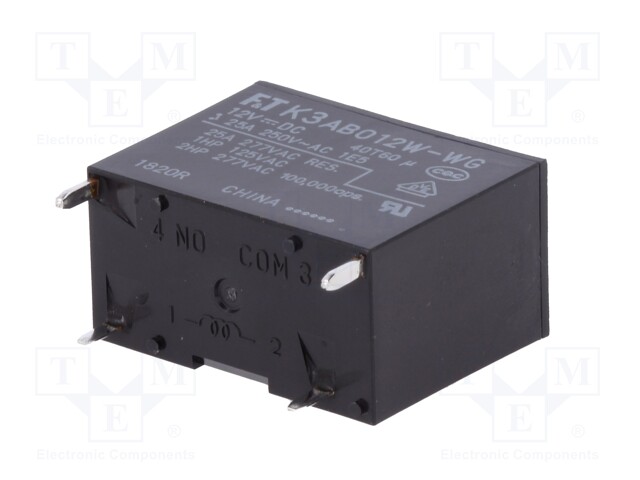

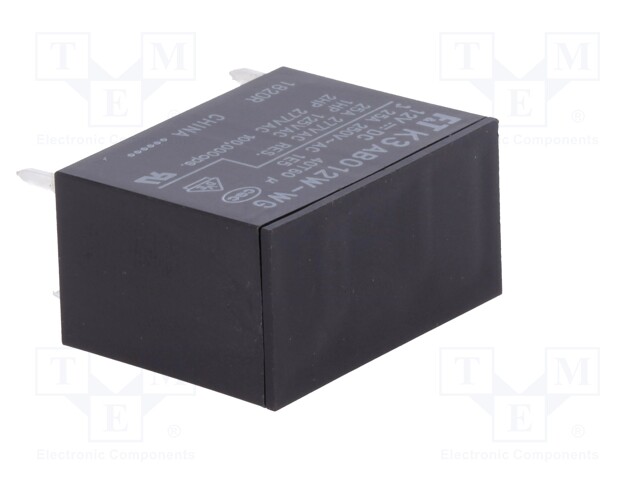

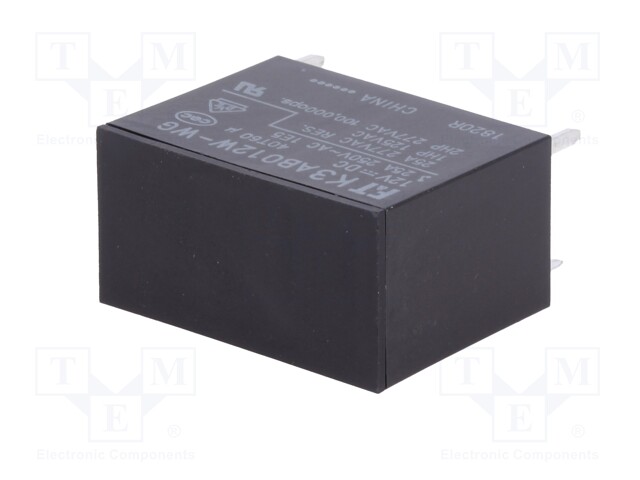

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 25A; Mounting: PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FTR-K3AB012W-WG
    Manufacturer: FUJITSU
    Manufacturer code: FTR-K3AB012W-WG
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    6.60 € 6.60 € (wo VAT) 6.6000000000000005 EUR

    6.60 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 25A; Mounting: PCB

    Mounting PCB
    Operating temperature -40...60°C

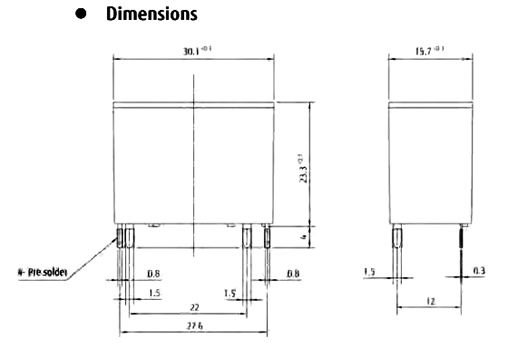

    Body dimensions 30.1x15.7x23.3mm
    Switched voltage max. 250V AC
    Coil resistance 185Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    Contact resistance 100MΩ
    AC contacts rating @R 25A / 250V AC
    Contact current max. 25A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 780mW
