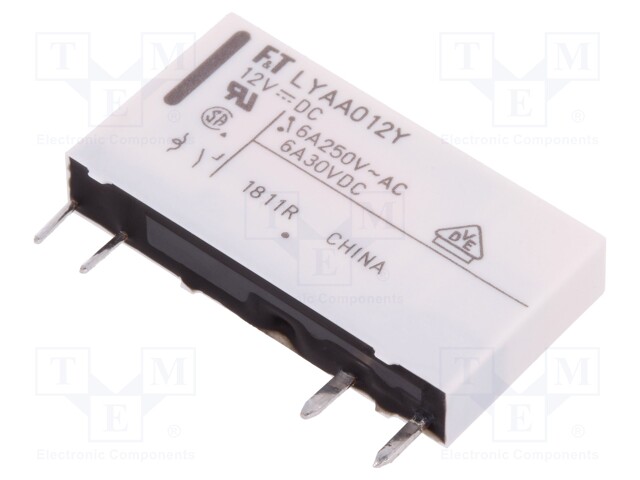

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 6A/250VAC; 6A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FTR-LYAA012Y
    Manufacturer: FUJITSU
    Manufacturer code: FTR-LYAA012Y
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    3.08 € 3.08 € (wo VAT) 3.08 EUR

    3.08 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 6A/250VAC; 6A/24VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5.04mm
    Body dimensions 28x5x15mm
    Mechanical durability 10000000cycles
    Switched voltage max. 250V AC
    Electrical life 30000cycles
    Coil resistance 847Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 6A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant interface
    Type of relay electromagnetic
    Coil power consumption 170mW
    Operate time 8ms
    Release time 4ms
