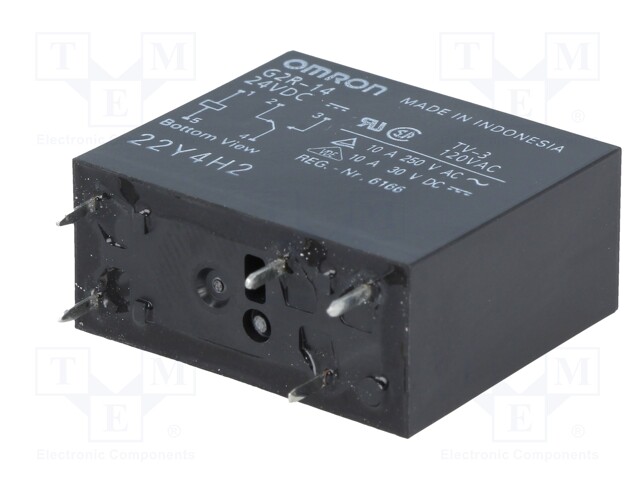

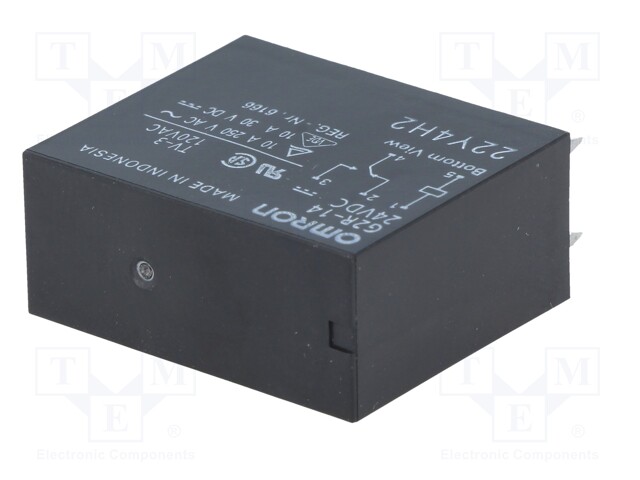

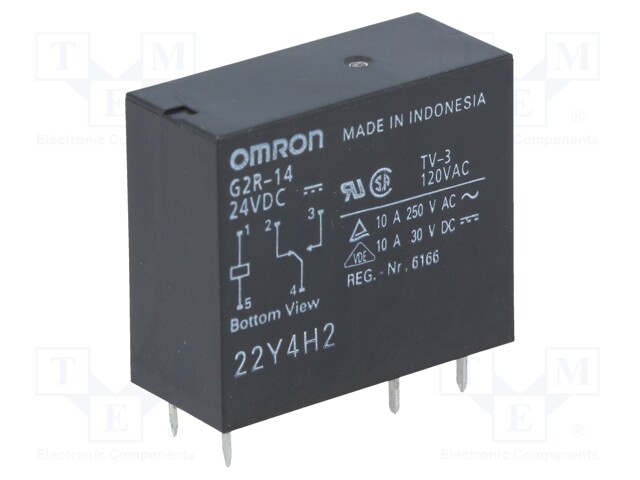

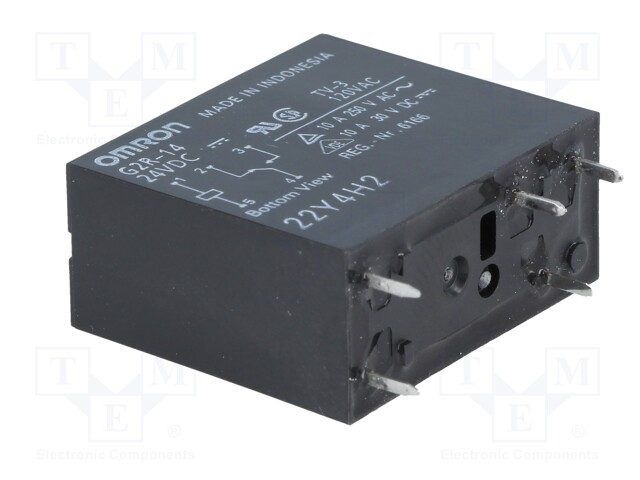

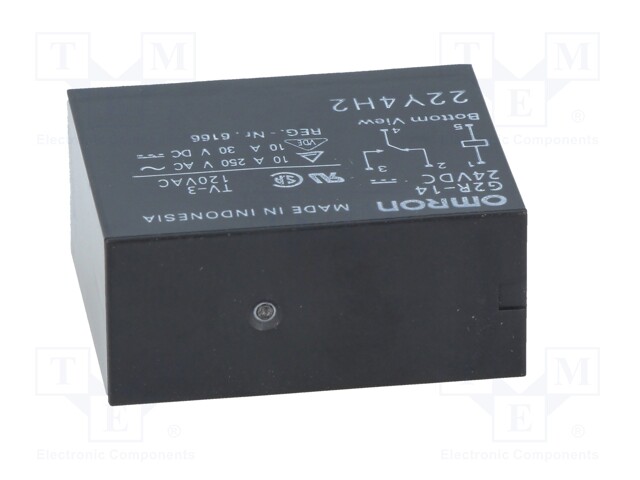

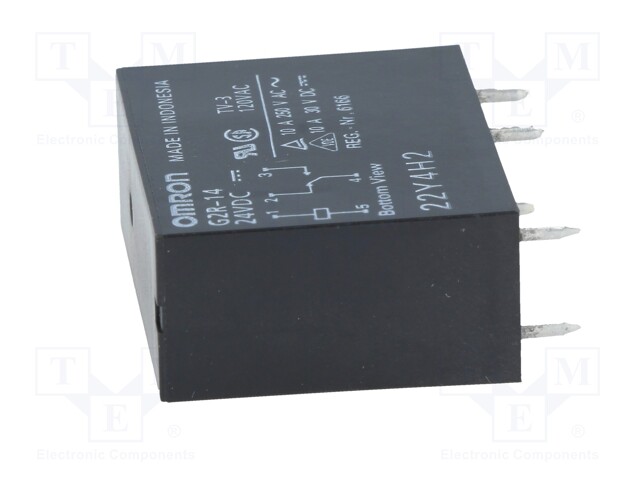

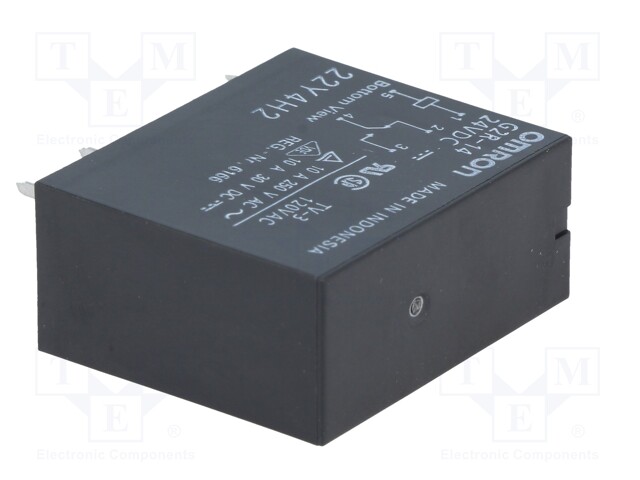

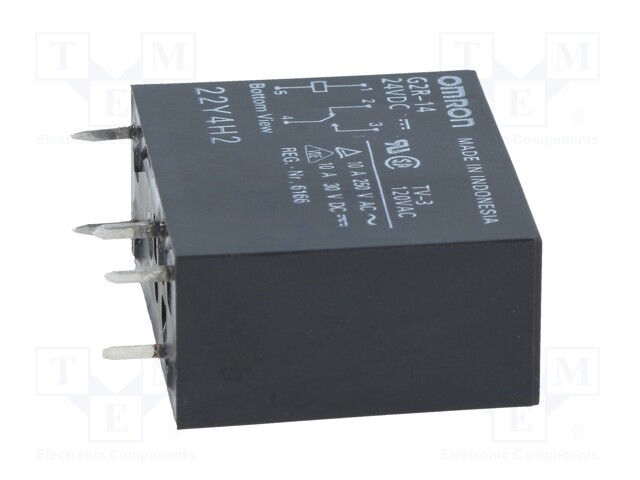

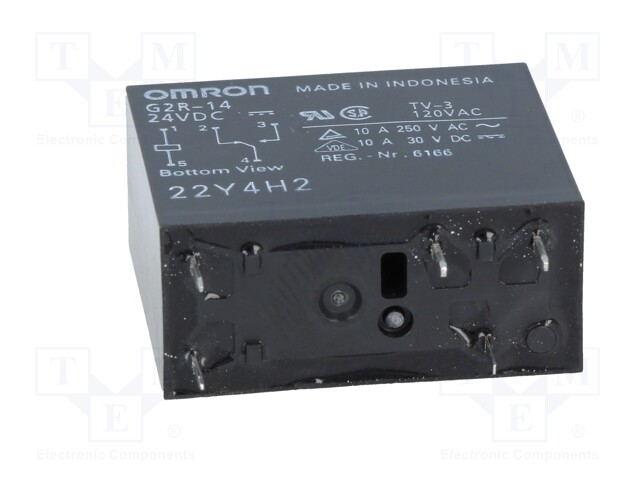

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G2R-14 24VDC
    Manufacturer: OMRON OCB
    Manufacturer code: G2R-14 24VDC
    • Mounting
    • Operating temperature
    • Leads
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    4.29 € 4.29 € (wo VAT) 4.29 EUR

    4.29 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Leads for PCB
    Terminal pitch 3.5mm
    Body dimensions 29x13x25.5mm
    Switched voltage max. 125V DC, max. 380V AC
    Coil resistance 1.1kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 8A / 250V AC
    Enclosure description hermetic seal
    Contact current max. 8A
    Relay variant miniature, monostable
    Type of relay electromagnetic
    Operate time 15ms
    Release time 5ms
    Coil current 21.8mA
