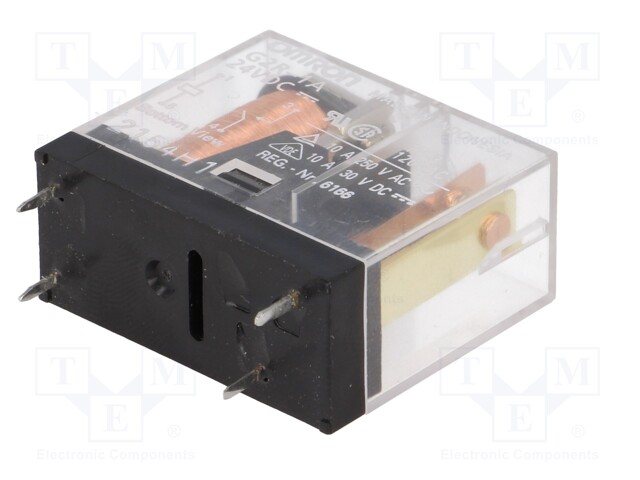

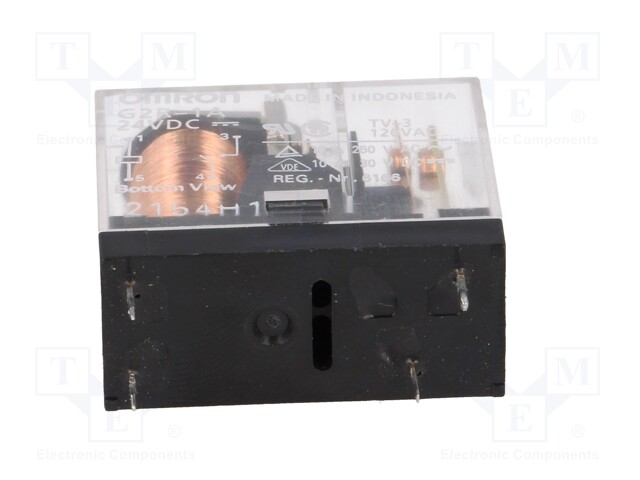

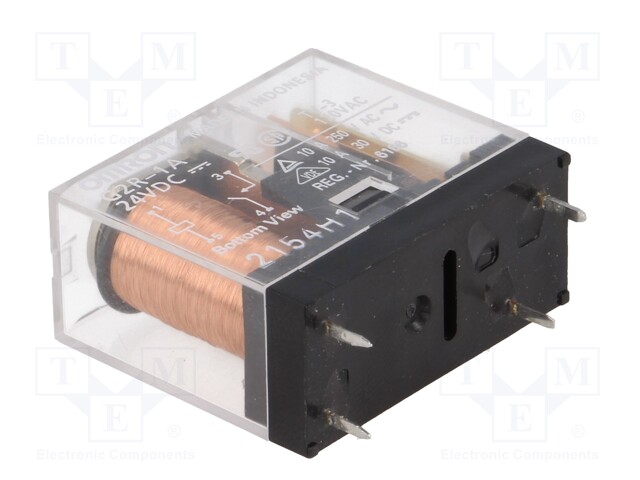

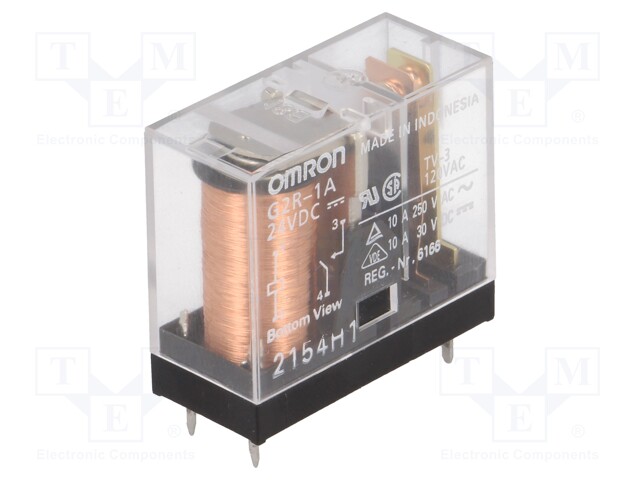

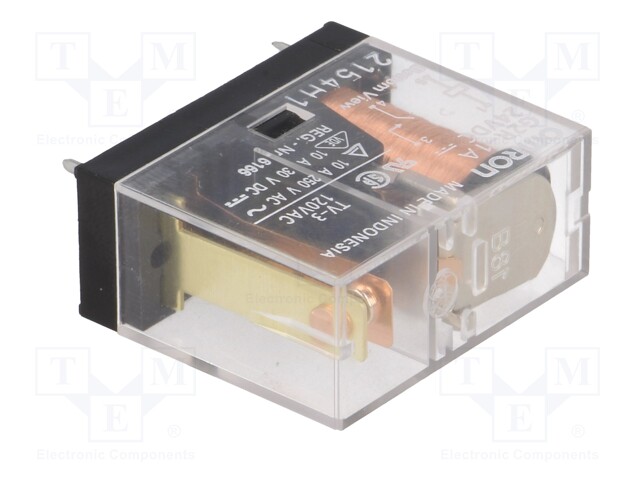

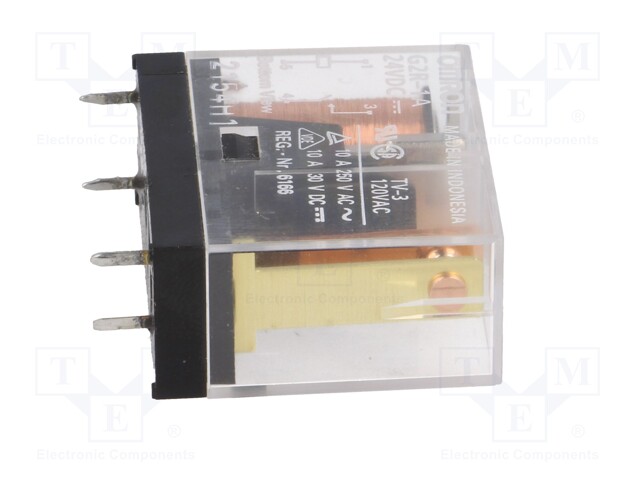

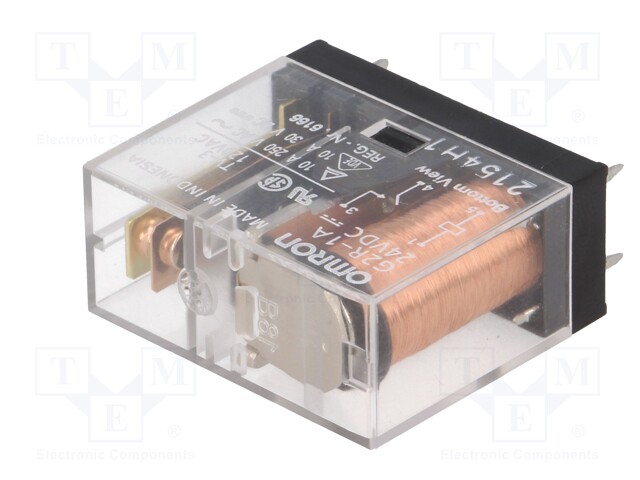

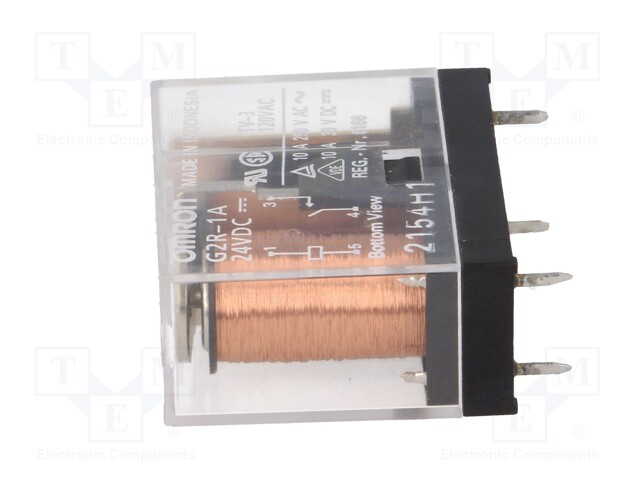

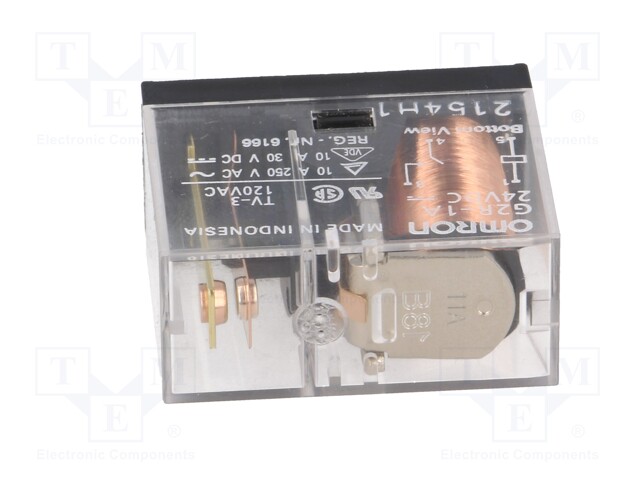

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A/250VAC; 30mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G2R-1A 24VDC
    Manufacturer: OMRON OCB
    Manufacturer code: G2R-1A 24VDC
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    4.80 € 4.80 € (wo VAT) 4.8 EUR

    4.80 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A/250VAC; 30mΩ

    Mounting PCB
    Operating temperature -40...70°C
    Terminal pitch 3.5mm
    Body dimensions 29x13x25.5mm
    Mechanical durability 10000000cycles
    Switched voltage max. 125V DC, max. 380V AC
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 10A / 250V AC
    Enclosure description standard seal
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 15ms
    Release time 5ms
    Coil current 21.8mA
