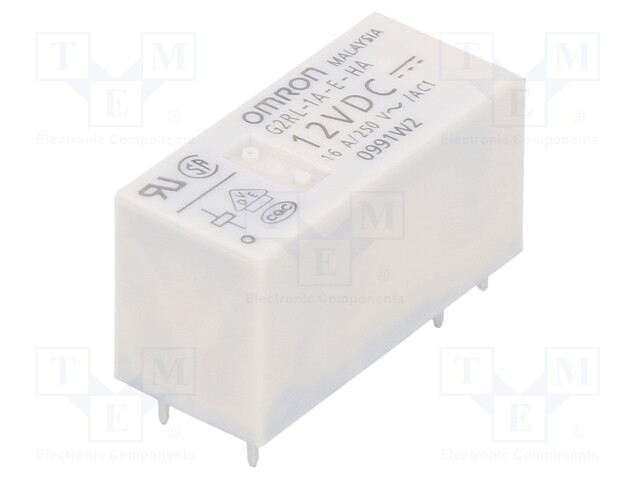

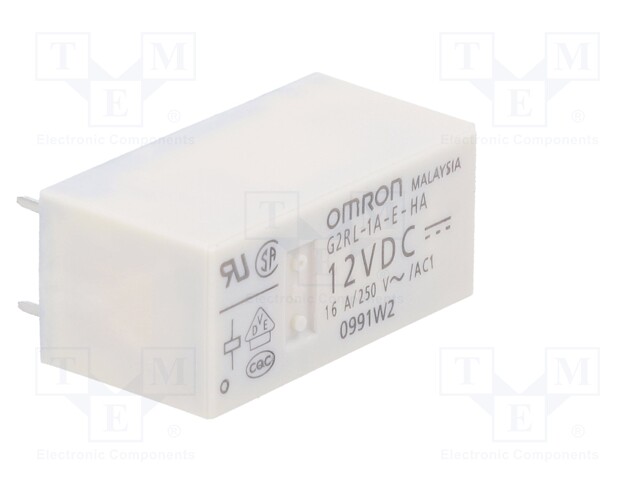

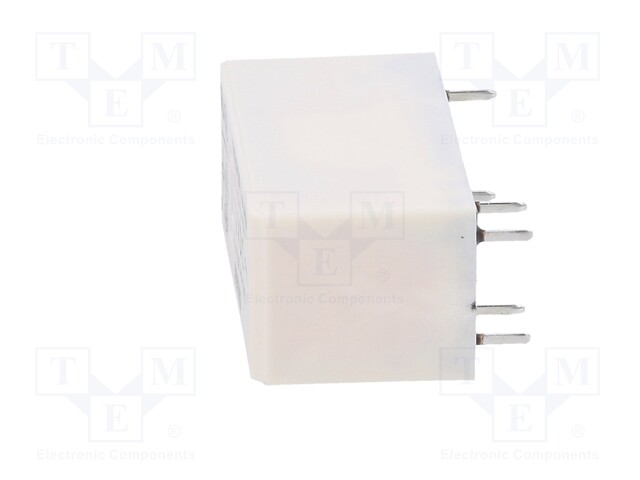

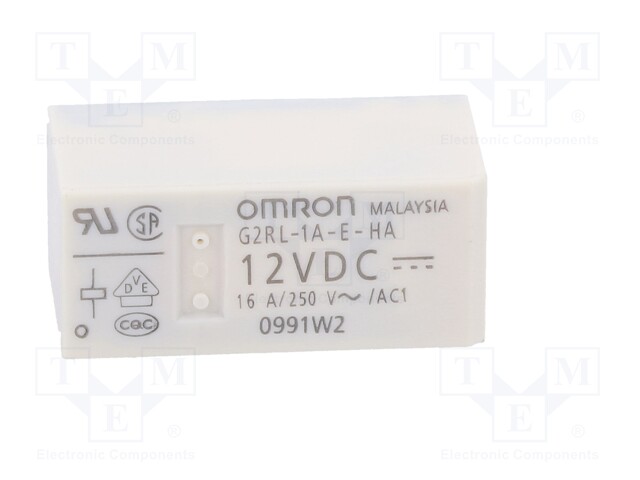

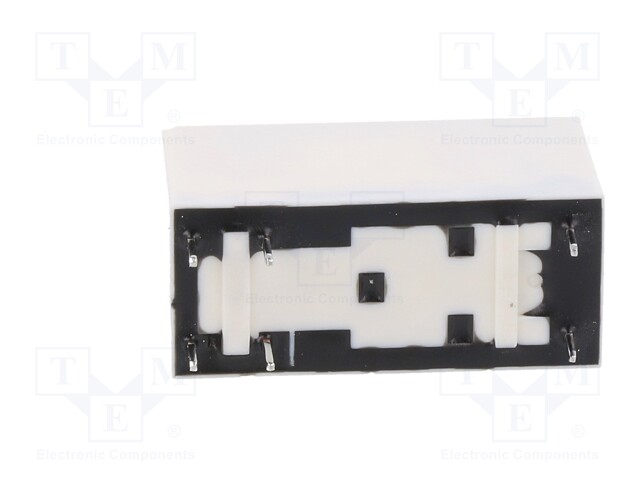

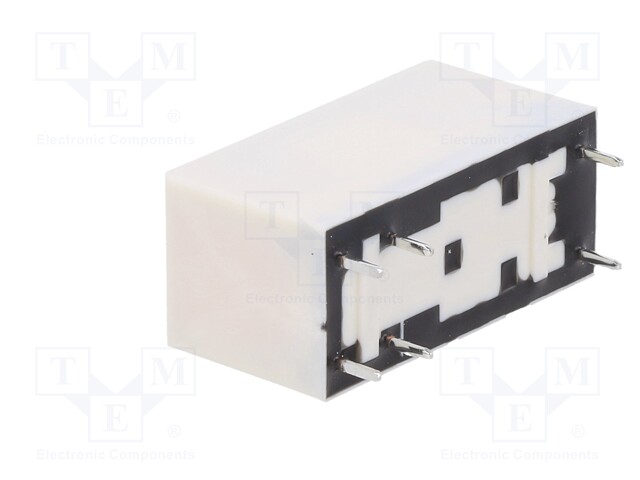

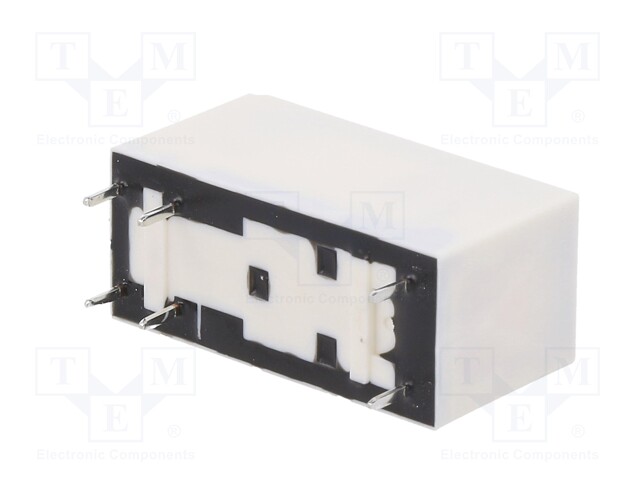

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 12A/250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G2RL-1A-E-HA DC12
    Manufacturer: OMRON ELECTRONIC COMPONENTS
    Manufacturer code: G2RL-1A-E-HA DC12
    • Mounting
    • Operating temperature
    • Leads
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    5.03 € 5.03 € (wo VAT) 5.03 EUR

    5.03 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 12A/250VAC

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Terminal pitch 3.5mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage max. 300V DC, max. 440V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 12A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 250V AC
    Enclosure description standard seal
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 15ms
    Release time 5ms
