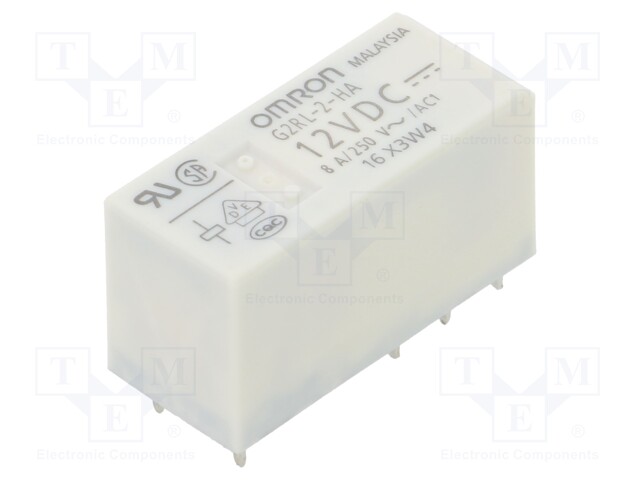

Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 8A; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G2RL-2-HA-DC12
    Manufacturer: OMRON OCB
    Manufacturer code: G2RL-2-HA-DC12
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    4.91 € 4.91 € (wo VAT) 4.91 EUR

    4.91 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 8A; PCB

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Contact material AgNi
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 20000000cycles
    Switched voltage max. 300V DC, max. 440V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Enclosure description standard seal
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 15ms
    Release time 5ms
    Coil current 33.3mA
