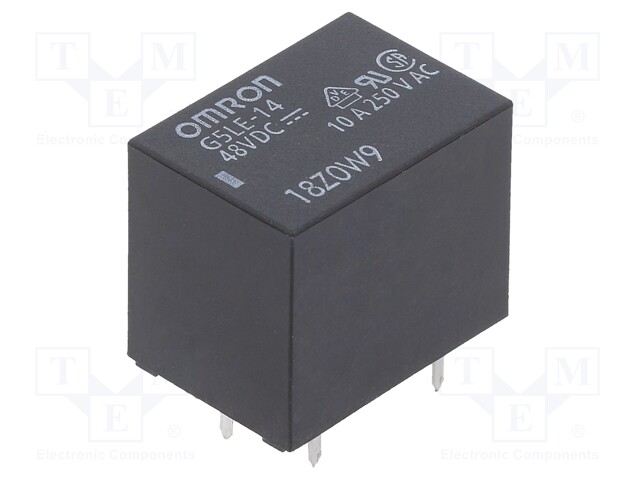

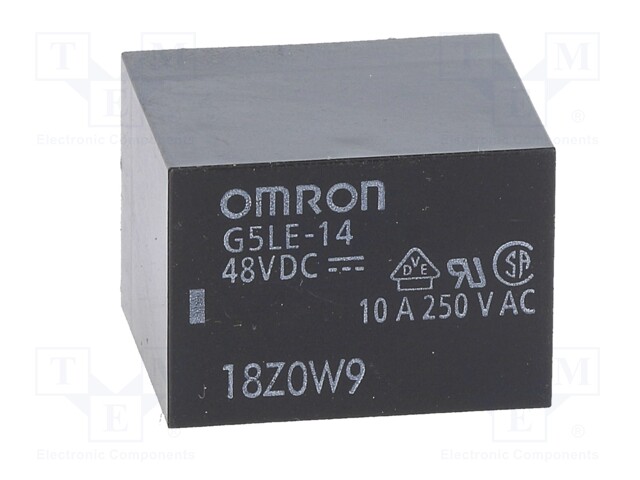

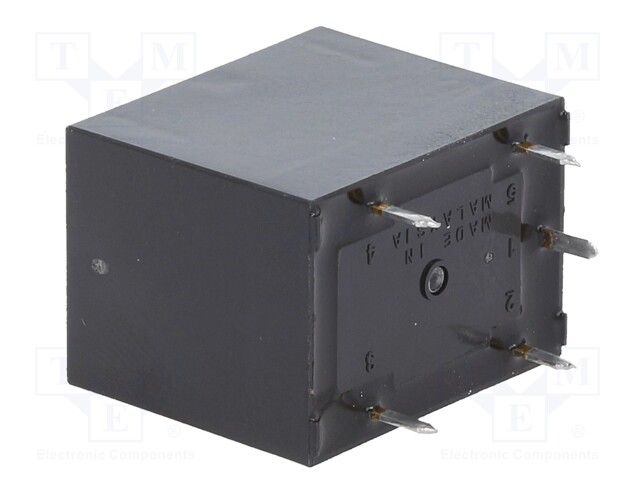

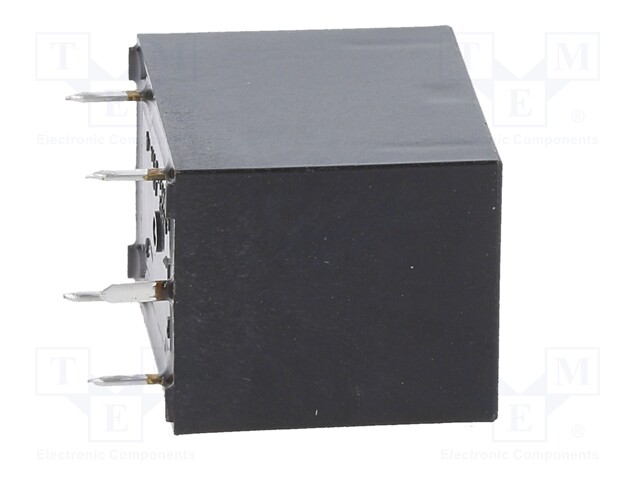

Relay: electromagnetic; SPDT; Ucoil: 48VDC; 10A/240VAC; 8A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G5LE-14 48DC
    Manufacturer: OMRON OCB
    Manufacturer code: G5LE-14 48DC
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    2.63 € 2.63 € (wo VAT) 2.63 EUR

    2.63 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 48VDC; 10A/240VAC; 8A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Terminal pitch 2mm

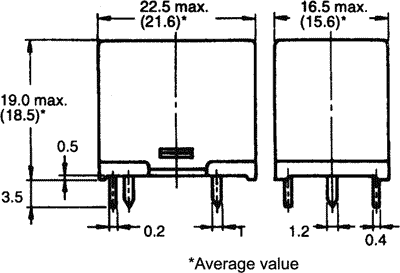

    Body dimensions 22.5x16.5x19mm
    Switched voltage max. 125V DC, max. 250V AC
    Rated coil voltage 48V DC

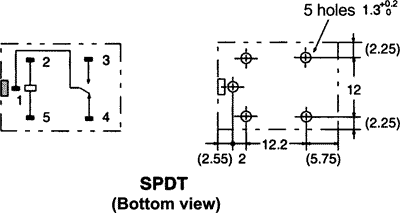

    Contacts configuration SPDT
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 240V AC
    Enclosure description hermetic seal
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 400mW
    Operate time 10ms
    Release time 5ms
