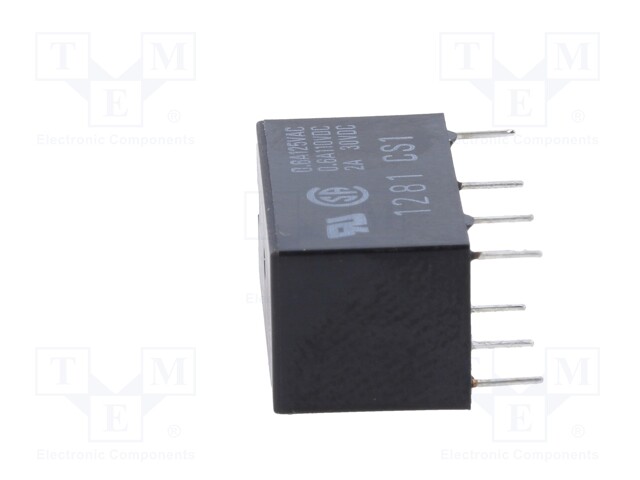

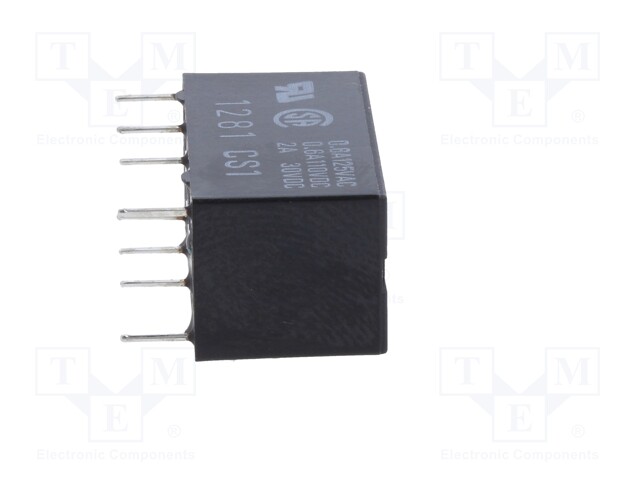

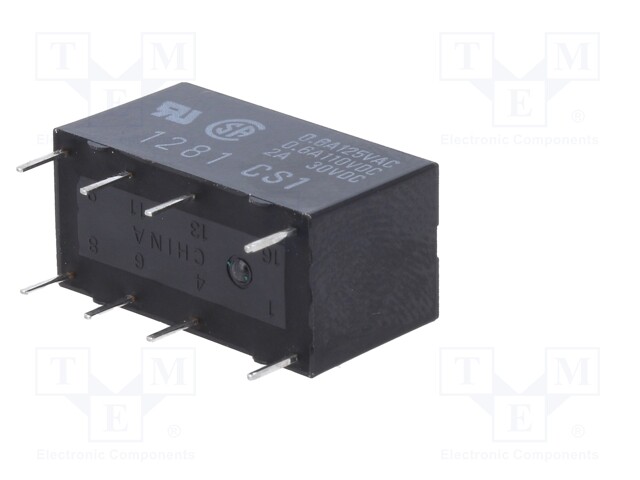

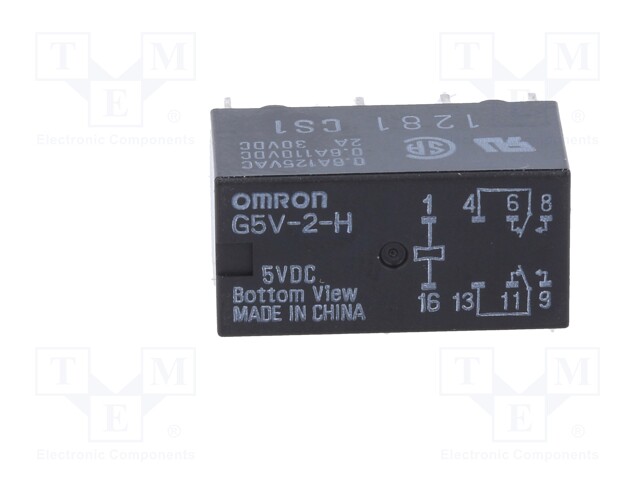

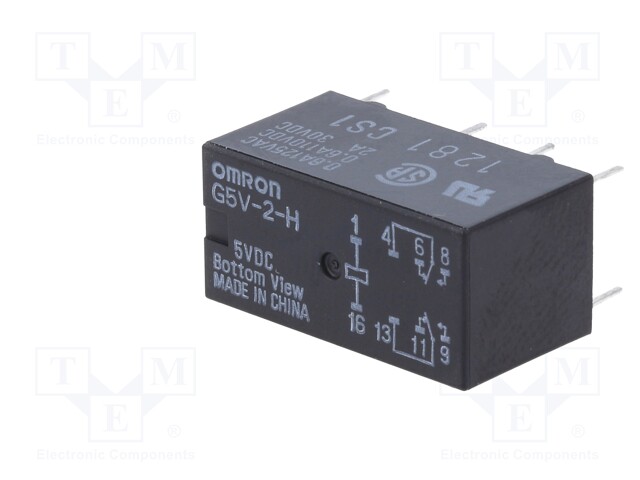

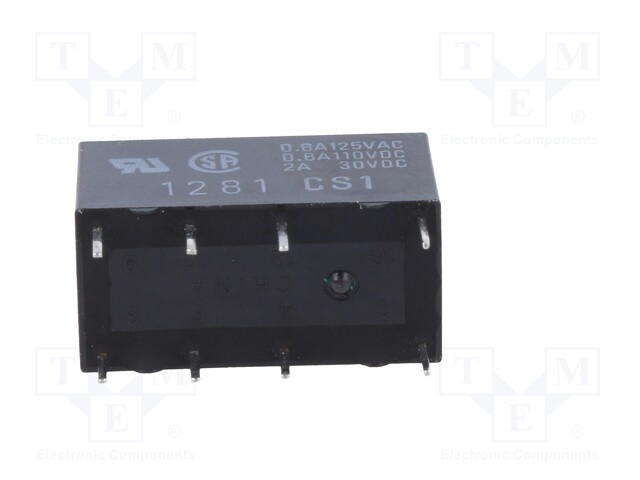

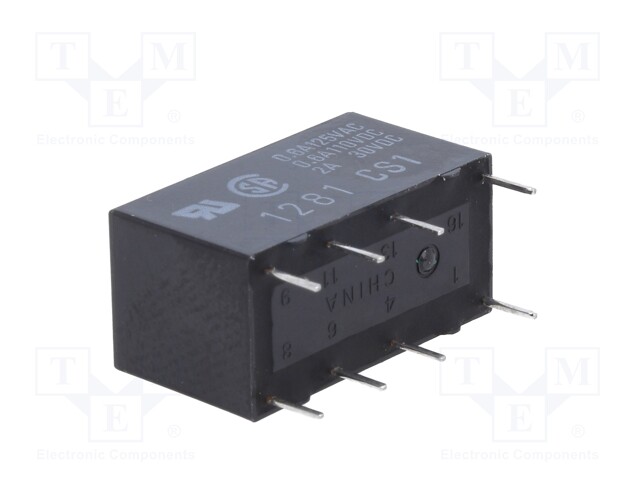

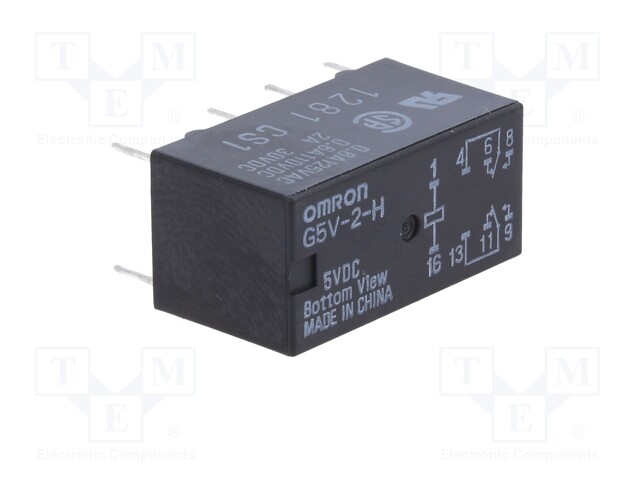

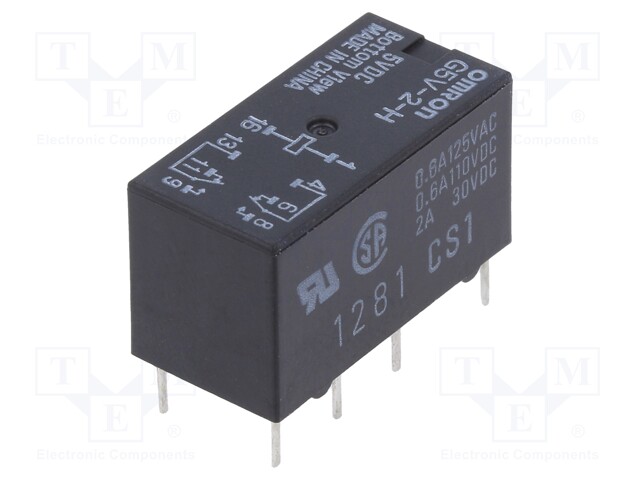

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G5V-2-H 5DC
    Manufacturer: OMRON OCB
    Manufacturer code: G5V-2-H 5DC
    • Mounting
    • Operating temperature
    • Contact plating
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    4.20 € 4.20 € (wo VAT) 4.2 EUR

    4.20 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact plating gold-plated

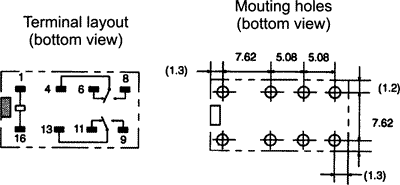

    Terminal pitch 5mm

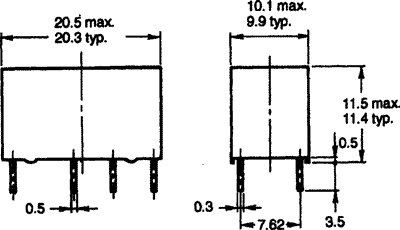

    Body dimensions 20.5x10.1x11.5mm
    Switched voltage max. 125V AC, max. 125V DC
    Coil resistance 167Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 150mW
    Operate time 7ms
    Release time 3ms
    Coil current 30mA
