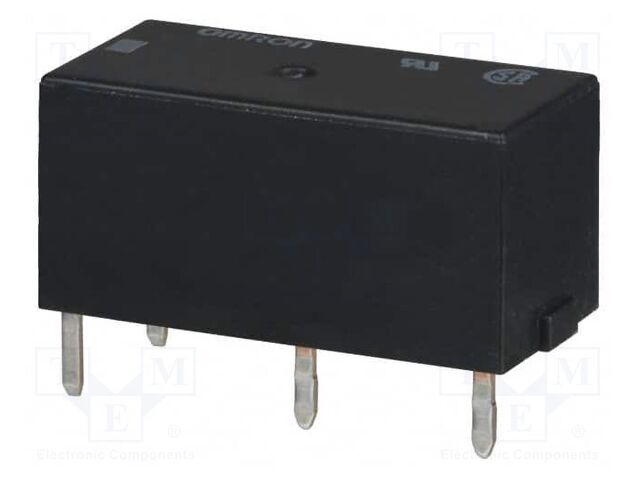

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A

    Multiples: 1000.0
    Minimum quantity: 1000.0
    Product code: G6B-1114P-FD-US 5DC
    Manufacturer: OMRON ELECTRONIC COMPONENTS
    Manufacturer code: G6B-1114P-FD-US 5DC
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    3.59 € 3.59 € (wo VAT) 3.59 EUR

    3.59 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A

    Mounting PCB
    Operating temperature -25...70°C
    Leads for soldering
    Contact material AgSnIn
    Body dimensions 20x10x10mm
    Mechanical durability 50000000cycles
    Switched voltage max. 125V DC, max. 380V AC
    Coil resistance 125Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Enclosure description hermetic seal
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 10ms
    Release time 10ms
    Coil current 40mA
